Home > Products > All Collections > Cargo Securing & Lashing > Ratchet Straps & Tie Downs > Ratchet Straps WSTDA-T-1 > 2 inch Logistic Strap

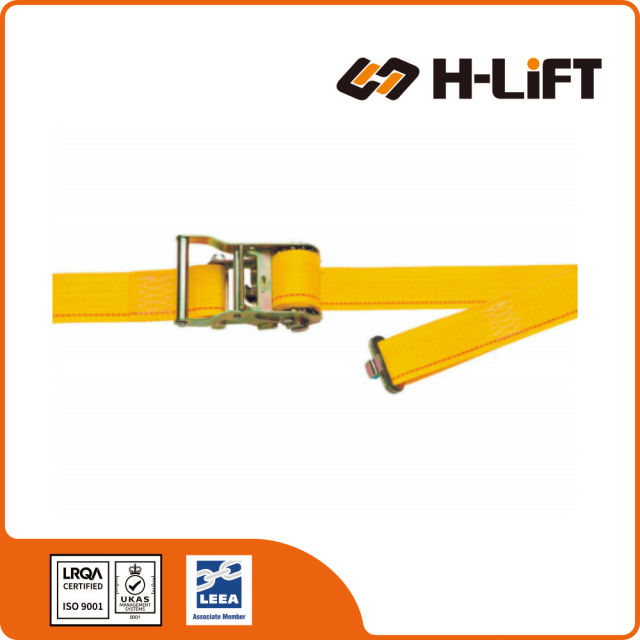

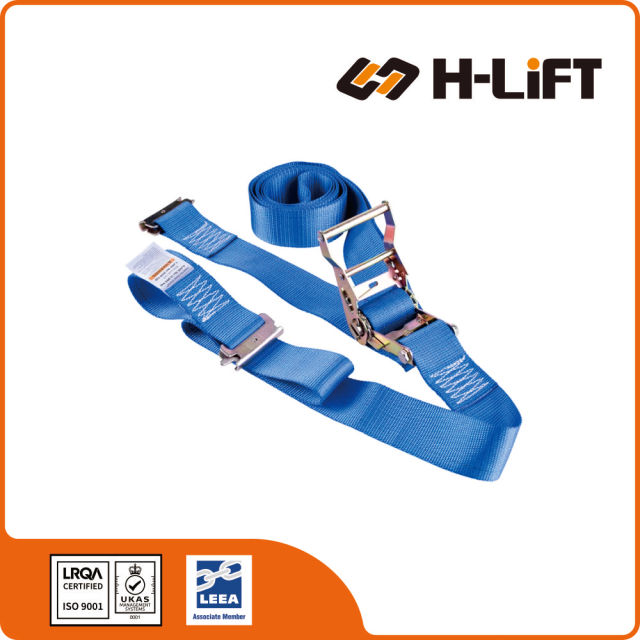

2" Logistic Strap

Name: 2" Logistic Strap
Brand: H-Lift Industries Co Ltd
SKU: 402021
Availability: InStock
Rating: 5 (1 reviews)

No.402021

The 2-Inch Logistic Strap is a specialized internal van cargo control system engineered to safely secure freight and prevent load shifting within enclosed trailers, moving vans, and commercial box trucks equipped with logistic track systems.

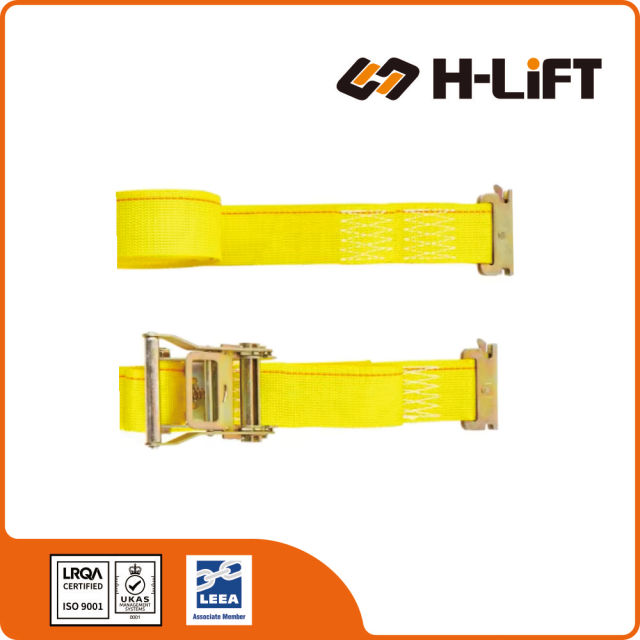

Track Compatibility: Equipped with specific end fittings designed to easily and securely lock into standard E-Track, A-Track, or F-Track systems installed along interior vehicle walls.
Tensioning Options: Available with either a heavy-duty ratchet mechanism for maximum tension on heavy pallets, or a cam buckle for quick, controlled securing of fragile loads.
Durable Webbing: Constructed with high-strength, 2-inch-wide industrial polyester webbing that resists abrasion and minimizes stretch to keep cargo firmly positioned during transit.
Standard Compliance: Manufactured and rigorously tested to meet strict Web Sling and Tie Down Association (WSTDA) standards, ensuring exceptional reliability and safety for internal cargo lashing.

Technical Data
Winch Strap

2-Inch Logistic Strap

Internal Van Cargo Control & Tie-Downs

WSTDA Compliant Logistic Strap E-Track Compatible 2" Width

Product Features

Width: The strap is 2 inches wide, providing strength and stability for securing various types of cargo inside vans and trailers.
Material: Logistic straps are typically made of high-strength materials like polyester or nylon webbing, which have excellent tensile strength and resistance to wear and tear.
Ratchet: These straps often feature a ratchet mechanism for tensioning and securing the strap around the cargo. The buckle allows for easy adjustment and tightening.
Hooks or End Fittings: Logistic straps usually have hooks or end fittings on each end (such as E-Track or Butterfly fittings), which can be attached to anchor points on the vehicle or trailer walls.
Working Load Limit (WLL): Logistic straps are rated for specific working load limits, indicating the maximum weight they can safely secure. It's crucial to choose a strap with a WLL that exceeds the weight of your cargo.
Break Strength: This represents the maximum force the strap can withstand before breaking.

Technical Specifications

Item No.	Strap Size (Width x Length)	End Fitting	WLL (lbs)	MBS (lbs)	Product Code
WLRB212	2" x 12'	E Track Fitting	1300	4000	402021227
WLRB216	2" x 16'	E Track Fitting	1300	4000	402021628
WERB212	2" x 12'	3 Piece End Fitting	1300	4000	402021229
WERB216	2" x 16'	3 Piece End Fitting	1300	4000	402021630
WLCB212	2" x 12'	E Track Fitting	830	2500	402021231
WLCB216	2" x 16'	E Track Fitting	830	2500	402021632
WBCB212	2" x 12'	Butterfly Fitting	410	1250	402021233
WBCB216	2" x 16'	Butterfly Fitting	410	1250	402021634

Truck Tie Down Winch Straps

Heavy-Duty Webbing for Flatbed Cargo Control

WSTDA Compliant Winch Strap 2", 3", 4" Widths Heavy-Duty Webbing

Product Features

Heavy-Duty Winch Strap: A truck tie down winch strap is a strap that has a hardware fitting on one end and is winched into place. The most common end fittings for a winch strap are flat hooks and chain extensions.
Secure & Fast: Truck tie down winch straps are an easy, safe, fast way to secure tie down loads. Standard sizes are 27' and 30' in length.
Versatile Application: Winch straps are used to retain loads and objects on trucks and trailers.
Safety Standards: Our truck tie down straps meet Web Sling and Tie Down Association (WSTDA) standards.

Technical Specifications

Item No.	Strap Size (Width x Length)	End Fitting	WLL (lbs)	MBS (lbs)	Product Code
WSFH227	2" x 27'	Flat Hook	3300	10000	402122701
WSFH230	2" x 30'	Flat Hook	3300	10000	402123002
WSFH327	3" x 27'	Flat Hook	5000 / 5400	15000 / 16200	402132703
WSFH330	3" x 30'	Flat Hook			402133004
WSFH427	4" x 27'	Flat Hook			402142705
WSFH430	4" x 30'	Flat Hook			402143006
WSFT327	3" x 27'	Forged Triangle	5000 / 5400	15000 / 16200	402132707
WSFT330	3" x 30'	Forged Triangle			402133008
WSFT427	4" x 27'	Forged Triangle			402142709
WSFT430	4" x 30'	Forged Triangle			402143010
WSGH327	3" x 27'	Chain Grab Hook	5000 / 5400	15000 / 16200	402132711
WSGH330	3" x 30'	Chain Grab Hook			402133012
WSGH427	4" x 27'	Chain Grab Hook			402142713
WSGH430	4" x 30'	Chain Grab Hook			402143014
WSCH327	3" x 27'	Chain Anchor Assembly	5000 / 5400	15000 / 16200	402132715
WSCH330	3" x 30'	Chain Anchor Assembly			402133016
WSCH427	4" x 27'	Chain Anchor Assembly			402142717
WSCH430	4" x 30'	Chain Anchor Assembly			402143018
WSDJ327	3" x 27'	Double J Hook	5000 / 5400	15000 / 16200	402132719
WSDJ330	3" x 30'	Double J Hook			402133020
WSDJ427	4" x 27'	Double J Hook			402142721
WSDJ430	4" x 30'	Double J Hook			402143022
WSSE327	3" x 27'	Sewn Eye	5000 / 5400	15000 / 16200	402132723
WSSE330	3" x 30'	Sewn Eye			402133024
WSSE427	4" x 27'	Sewn Eye			402142725
WSSE430	4" x 30'	Sewn Eye			402143026
