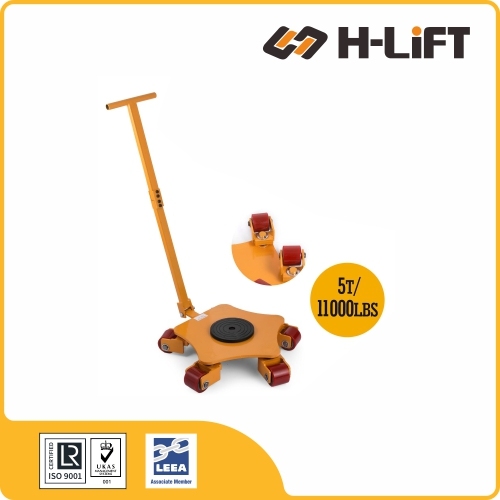

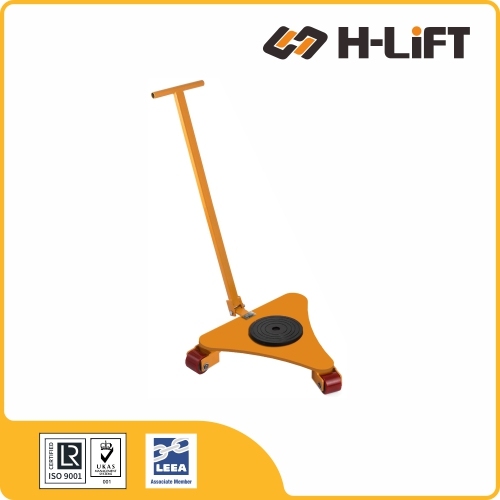

The H-Lift 360° Rotating Moving Skate MSR type is a highly maneuverable transport dolly designed for moving heavy loads up to 5 tonnes in confined spaces. Equipped with a central 360-degree turntable and multiple independent castors, it allows loads to be rotated and shifted in any direction without the need for wide turning circles. This compact steel skate features convenient carrying handles and a detachable steering handle, making it an essential tool for precise machinery positioning in tight workshop environments.
The MSR Series Rotating Machine Skates offer ultimate maneuverability for heavy loads. Featuring 360-degree rotating castors and a detachable steering handle, these skates allow you to move and spin heavy machinery in any direction, making them ideal for positioning equipment in tight or confined spaces.
Unlike standard linear skates, the MSR series features individually rotating castors. This allows the load to move in any direction (sideways, diagonal) and rotate 360° on the spot.
Fitted with high-durability Polyurethane (PU) rollers. These provide smooth movement while protecting delicate epoxy or painted workshop floors from scratches and damage.
Supplied with a 1500mm detachable steering handle, giving the operator precise leverage and directional control, reducing manual effort.
Features a circular anti-slip mat on the turntable surface. This friction-locks the load to the skate, preventing slippage during transport.
Single Point: Use one MSR skate under the center of a smaller, balanced load for full rotation.
Multi-Point: Use 3 or 4 MSR skates under the corners of a large machine to create a fully omni-directional platform that can slide sideways, diagonally, or spin in place.
| Item No. | Capacity (t) | No. of Rollers | Roller Material | Skate Size (mm) (LxWxH) |
Weight (kg) | Product Code |
|---|---|---|---|---|---|---|
| MSR03 | 3 | 3 | PU | 502x448x112 | 22 | 801004003 |
| MSR04 | 4 | 4 | PU | 445x360x112 | 29 | 801004004 |
| MSR05 | 5 | 5 | PU | 588x547x112 | 34 | 801004005 |
Load moving skates, also known as machinery skates or equipment skates, are specialized tools designed for moving heavy loads horizontally. These skates are particularly useful in industrial and commercial settings where the relocation of heavy machinery or equipment is required.
They effectively reduce the need for cranes or forklifts in confined spaces and are typically used in conjunction with other lifting equipment, such as hydraulic jacks (toe jacks), to facilitate the loading process.
Common Applications:
The platform is constructed of sturdy steel to withstand heavy loads. The low-profile design ensures stability while maximizing overhead clearance.
Wheels vary in number and arrangement (e.g., square pattern or multi-row) to increase stability. Made from Nylon (for floor protection) or Steel (for durability).
Many models feature swivel casters or a turntable top, allowing for easy turning and positioning in tight spaces.
Some skates include a handle or pulling bar for manual push/pull operation. Adjustable models allow users to change connecting bar spacing for different load sizes.
| Type | Movement | Typical Application |
|---|---|---|
| Fixed Skates (Straight-Running) |
Moves in a straight line only. | Used under the rear of the load for stability. |
| Steerable Skates (Swivel) |
Rotating top plate allows turning. | Used at the front of the load for steering control. |
| Adjustable Skates | Connecting bars adjust width. | Accommodating loads of varying widths and sizes. |
| Powered Skates | Motor-driven (Electric/Pneumatic). | Precise movement of extremely heavy loads without manual pushing. |
To ensure safe operation and longevity of the equipment, follow these guidelines:
