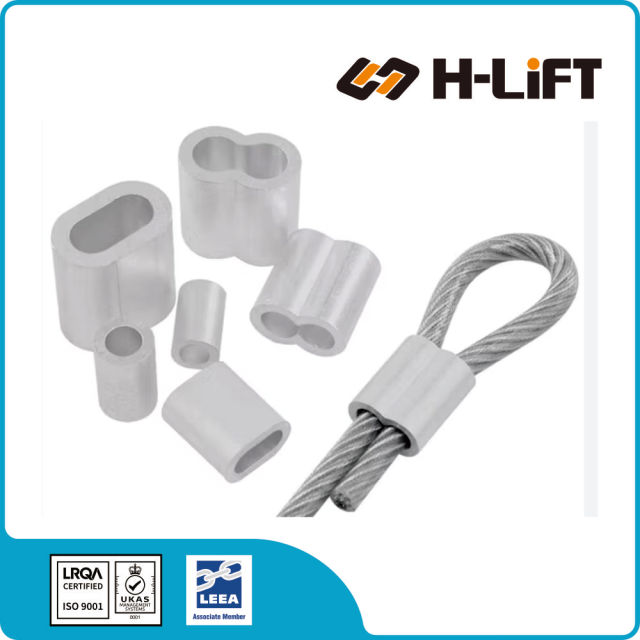

The H-Lift Aluminium Hourglass Sleeve is a specialized termination fitting designed to create secure loops or eyes on steel wire ropes. Named for its tapered mid-section, this sleeve distributes load stress more evenly than standard cylindrical ferrules, reducing the risk of premature failure. It provides a high strength-to-weight ratio and is ideal for applications where weight reduction is critical, such as in aviation and marine rigging.

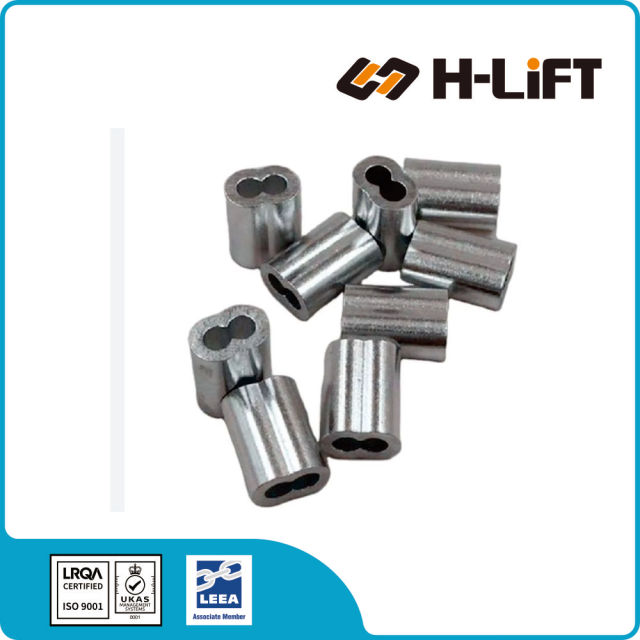

The Aluminium Hourglass (Duplex) Sleeve features a unique figure-8 design that keeps wire rope strands parallel, preventing them from crossing or crushing during swaging. Extruded from high-quality aluminium alloy, these sleeves provide superior alignment and can achieve up to 95% of the cable's breaking strength.
The unique Hourglass shape separates the two wire strands. This ensures they remain parallel and do not twist inside the sleeve, resulting in a cleaner, stronger crimp.
Capable of achieving up to 95% of the cable's nominal breaking strength. The aluminium alloy "flows" effectively into cable crevices for a secure bond.
Excellent natural corrosion resistance for outdoor and marine (non-stainless) environments. High strength-to-weight ratio is perfect for stage rigging and aviation.
Available in a wide range of fractional sizes from 3/64" up to 5/8", catering specifically to standard US wire rope diameters.

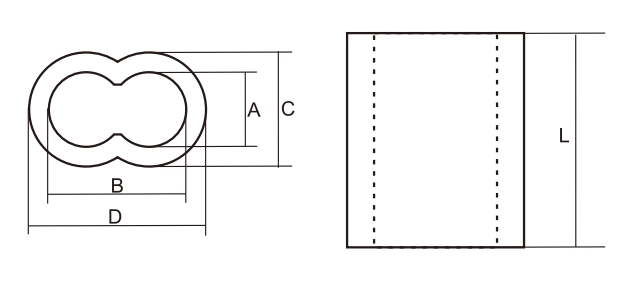

A=Width | B=Height | C=Thickness | D=Length | L=Total Length| Item No. | Size | Dimensions (inch) | Weight | Product Code | ||||
|---|---|---|---|---|---|---|---|---|
| inch | A | B | C | D | L | kg/1000pcs | ||
| WRFAH0364 | 3/64 | 1/16 | 1/8 | 9/64 | 13/64 | 3/8 | 0.276 | 6060020364 |
| WRFAH0116 | 1/16 | 5/64 | 5/32 | 11/64 | 1/4 | 3/8 | 0.433 | 6060020116 |
| WRFAH0564 | 5/64 | 3/32 | 3/16 | 13/64 | 5/16 | 3/8 | 0.645 | 6060020564 |
| WRFAH0332 | 3/32 | 1/8 | 1/4 | 9/32 | 13/32 | 1/2 | 1.45 | 6060020332 |
| WRFAH0108 | 1/8 | 5/32 | 5/16 | 11/32 | 1/2 | 5/8 | 2.70 | 6060020108 |
| WRFAH0532 | 5/32 | 3/16 | 3/8 | 3/8 | 9/16 | 11/16 | 3.67 | 6060020532 |
| WRFAH0316 | 3/16 | 7/32 | 7/16 | 7/16 | 21/32 | 1 | 7.18 | 6060020316 |
| WRFAH0732 | 7/32 | 1/4 | 1/2 | 1/2 | 3/4 | 1-1/16 | 10.00 | 6060020732 |
| WRFAH0104 | 1/4 | 9/32 | 9/16 | 17/32 | 13/16 | 1-1/8 | 11.76 | 6060020104 |
| WRFAH0932 | 9/32 | 5/16 | 5/8 | 9/16 | 7/8 | 1-3/16 | 13.62 | 6060020932 |
| WRFAH0516 | 5/16 | 3/8 | 23/32 | 11/16 | 1-1/32 | 1-1/4 | 20.94 | 6060020516 |
| WRFAH0308 | 3/8 | 7/16 | 27/32 | 3/4 | 1-5/32 | 1-7/16 | 28.18 | 6060020308 |
| WRFAH0716 | 7/16 | 1/2 | 1 | 15/16 | 1-7/16 | 1-11/16 | 52.00 | 6060020716 |
| WRFAH0102 | 1/2 | 9/16 | 1-1/8 | 1-1/16 | 1-5/8 | 2 | 80.15 | 6060020102 |
| WRFAH0916 | 9/16 | 5/8 | 1-1/4 | 1-1/8 | 1-3/4 | 2-1/8 | 99.88 | 6060020916 |
| WRFAH0508 | 5/8 | 11/16 | 1-3/8 | 1-1/4 | 1-15/16 | 2-1/2 | 139.78 | 6060020508 |
