The H-Lift Aluminium Oval Sleeve is a versatile compression fitting designed for creating permanent eyes and lap splices in galvanized wire ropes. Featuring a smooth, oblong profile, this sleeve creates a neat, tubular finish after swaging, offering high holding strength capable of matching the wire rope's breaking load when properly applied. It is an excellent choice for general rigging, fencing, and architectural applications where a reliable and streamlined termination is required.

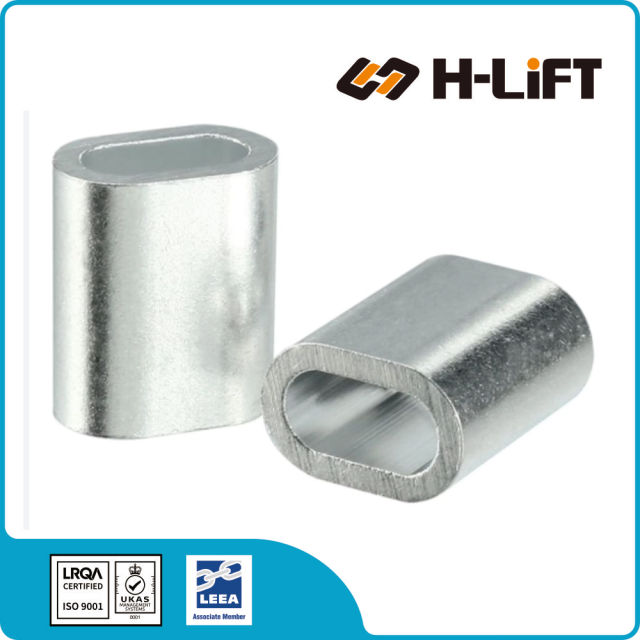

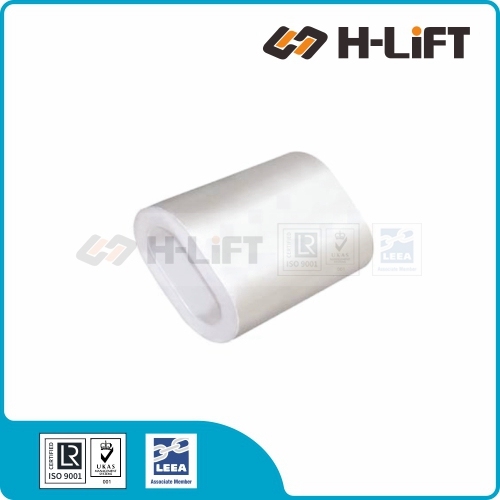

The Aluminium Oval Sleeve is a standard wire rope ferrule featuring a simple, oblong shape designed to securely hold two wire rope strands side-by-side. When properly crimped, it forms a cold-welded bond that equals or exceeds the rated breaking strength of the wire rope.

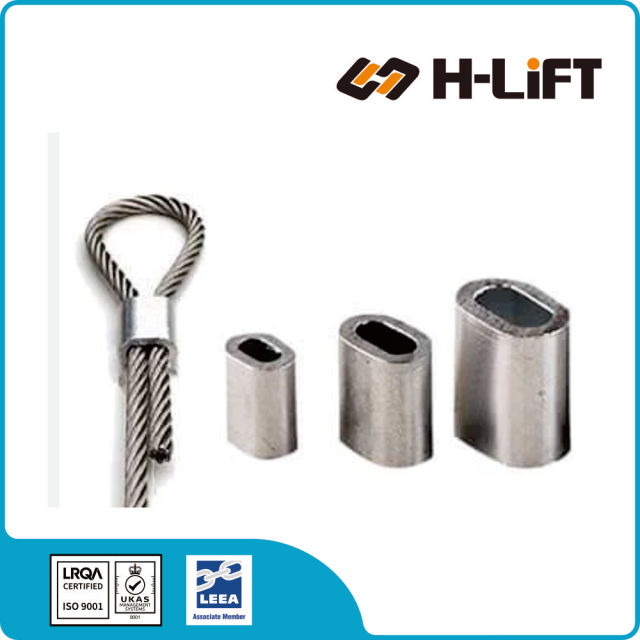

Features a simple egg-shaped profile to accommodate the wire rope turnback. Ideal for creating permanent eyes or lap splices.
When swaged with the correct die, the aluminium flows into the wire strands, creating a bond capable of achieving up to 100% of the cable's breaking strength.
Extruded from high-quality alloy specifically for use with Galvanized Steel Wire Rope. Excellent natural corrosion resistance.
Available in a comprehensive range of fractional sizes from 1/4" up to 1-1/2" to suit heavy-duty industrial rigging needs.
| Feature | Oval Sleeve | Hourglass (Duplex) Sleeve |
|---|---|---|
| Shape | Oblong / Egg-shaped | Figure-8 / Double Barrel |
| Ease of Entry | Tight fit for two cables | Easier to thread cable through |
| Crimping | Often requires hydraulic force | Easier to crimp with hand tools |
| Best For | General rigging & fixed eye loops | Smoothest aesthetic finish |

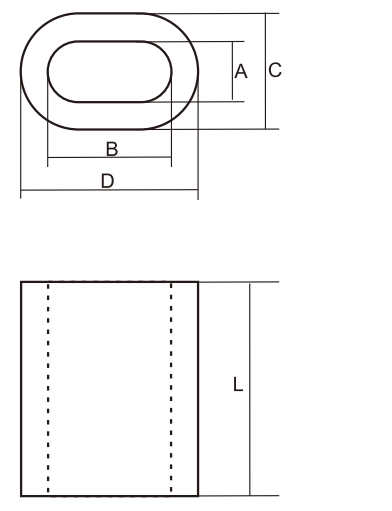

A=Inside Width | B=Inside Height | C=Wall Thickness | D=Thickness | L=Total Length| Item No. | Size | Dimensions (inch) | Weight | Product Code | ||||
|---|---|---|---|---|---|---|---|---|
| inch | A | B | C | D | L | lbs/100Pcs | ||
| WRFAO0104 | 1/4" | 19/64 | 19/32 | 17/32 | 27/32 | 1 | 2.3 | 6060030104 |
| WRFAO0516 | 5/16" | 3/8 | 3/4 | 21/32 | 1-1/32 | 1-17/84 | 4.3 | 6060030516 |
| WRFAO0308 | 3/8" | 7/16 | 27/32 | 3/4 | 1-5/32 | 1-3/8 | 5.3 | 6060030308 |
| WRFAO0716 | 7/16" | 1/2 | 1 | 29/32 | 1-13/32 | 1-23/32 | 11 | 6060030716 |
| WRFAO0102 | 1/2" | 19/32 | 1-11/64 | 1-1/32 | 1-5/8 | 1-15/16 | 16.5 | 6060030102 |
| WRFAO0916 | 9/16" | 23/32 | 1-3/8 | 1-7/32 | 1-57/64 | 2-7/32 | 22 | 6060030916 |
| WRFAO0508 | 5/8" | 3/4 | 1-1/2 | 1-3/8 | 2-3/32 | 2-1/2 | 32 | 6060030508 |
| WRFAO0304 | 3/4" | 53/64 | 1-11/16 | 1-1/2 | 2-3/8 | 2-7/8 | 52 | 6060030304 |
| WRFAO0708 | 7/8" | 61/64 | 1-7/8 | 1-11/16 | 2-5/8 | 3 | 67 | 6060030708 |
| WRFAO1000 | 1" | 1-3/32 | 2-7/32 | 1-31/32 | 3-3/32 | 3-3/4 | 125 | 6060031000 |
| WRFAO1108 | 1-1/8" | 1-9/32 | 2-9/16 | 2-5/16 | 3-19/32 | 4-9/32 | 172 | 6060031108 |
| WRFAO1104 | 1-1/4" | 1-13/32 | 2-25/32 | 2-1/2 | 3-7/8 | 4-7/16 | 214 | 6060031104 |
| WRFAO1102 | 1-1/2" | 1-21/32 | 3-19/64 | 3-1/8 | 4-3/4 | 5-35/64 | 390 | 6060031102 |
