H-Lift Anchor Chains and Fittings provide a comprehensive, industrial-grade mooring and anchoring solution designed to secure commercial vessels and offshore structures in harsh marine environments.

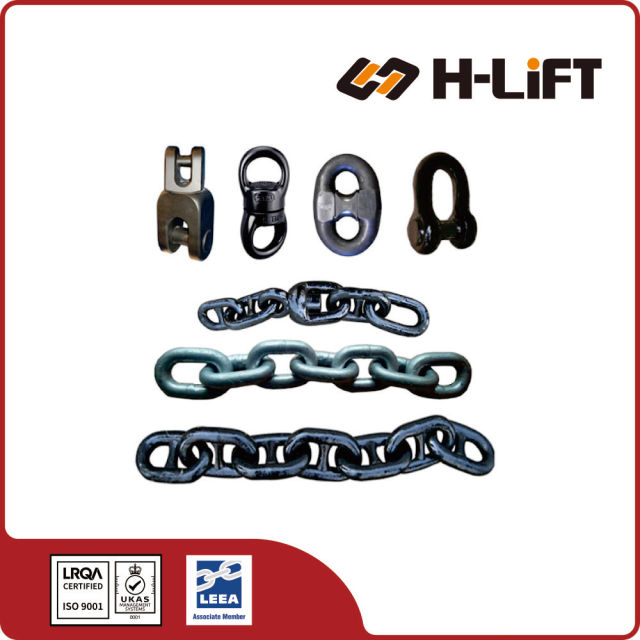

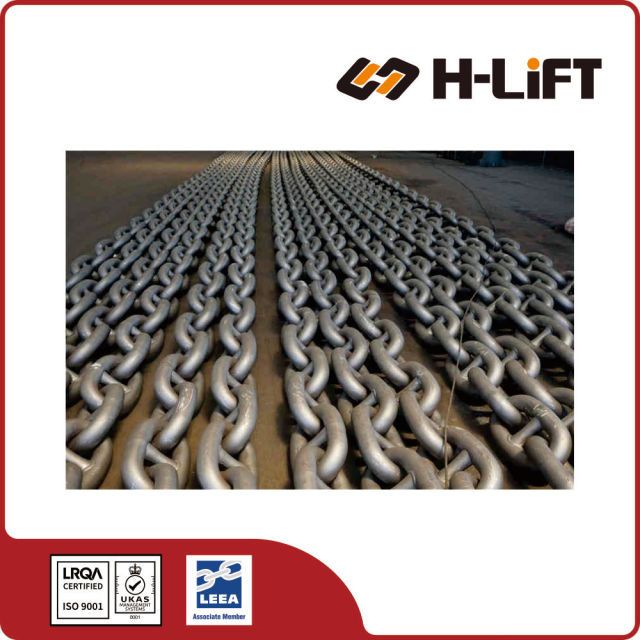

H-Lift provides a comprehensive range of Marine Anchor Chains and high-performance fittings engineered for the most demanding maritime and offshore environments. From large commercial vessels to deep-water mooring platforms, our chains are available in Stud Link and Studless designs, featuring global classification approvals from major societies including ABS, LR, DNV, and CCS.
Features a welded crossbar (stud) in each link to prevent deformation under extreme tension. This design increases breaking strength and prevents the chain from kinking when stored in the chain locker.
Marine Grades: Grade 2 (U2) and heat-treated Grade 3 (U3) for standard vessels.
Offshore Grades: High-tensile R3, R3S, R4, and R4S for deep-sea mooring and platforms.

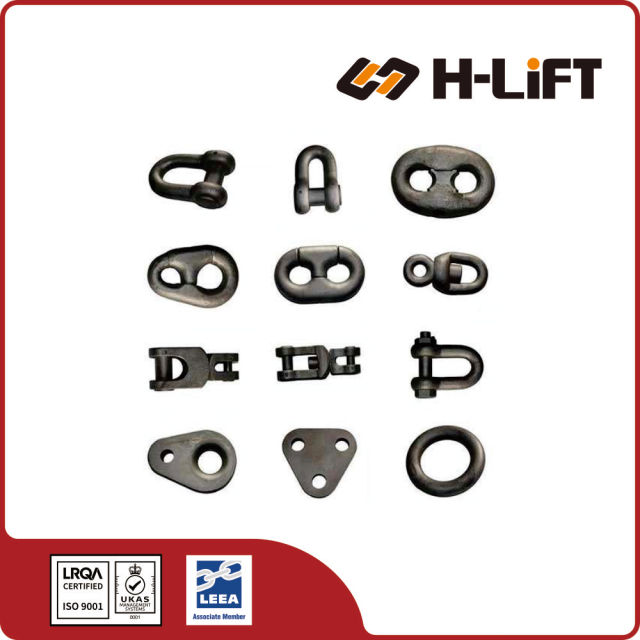

A full suite of accessories including Kenter Shackles for joining shots, End Shackles for anchor connection, and Swivel Forerunners to eliminate dangerous line twisting.
Tailored finishes to prevent saltwater corrosion: choose from standard Black Bitumen Paint, Hot-Dip Galvanized coating for maximum longevity, or Self-Colored steel.
Please include the following technical details in your inquiry for an accurate quotation:
| Parameter | Description / Example |
|---|---|
| Chain Diameter | e.g. 34 mm, 76 mm, 120 mm |
| Grade | U2, U3 (Marine) or R3, R4 (Offshore) |
| Link Type | Stud Link (Standard) or Studless Link |
| Length / Quantity | Standard length is 27.5m (1 Shot). State total shots required. |
| Certification | Required Class Certificate (e.g. DNV, ABS, BV) |
| Surface Finish | Black Bitumen, Hot-Dip Galvanized, or Self-Colored |
| Connections | Required fittings (Kenter shackle, End shackle, Swivel assembly) |

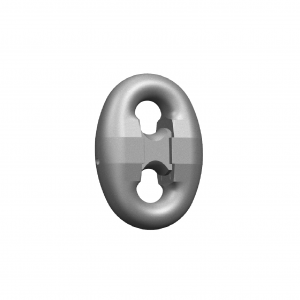

 Kenter Shackle |
 Joining Shackle |
 End Shackle |
 Swivel |
 ASWS-I |
 ASWS-II |
 Swivel Forerunner |
 Adaptor |
