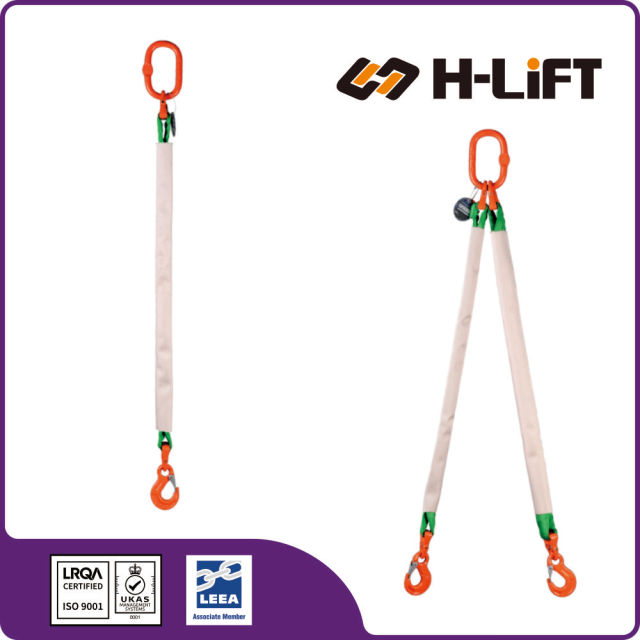

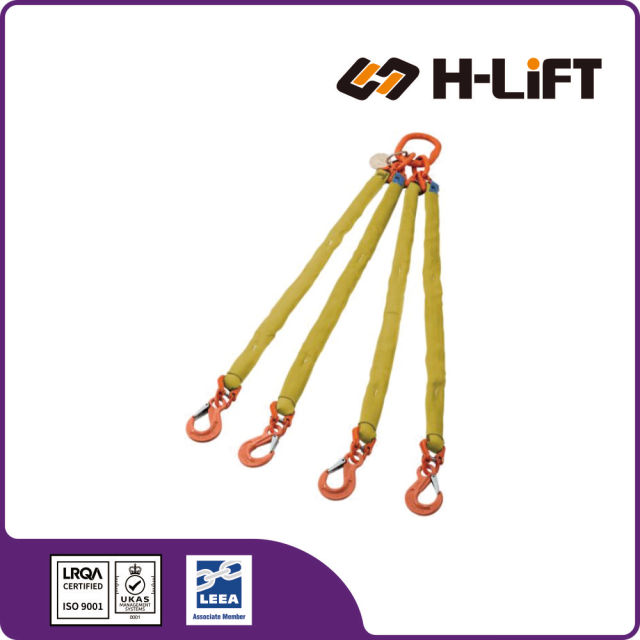

The Bridle Round Sling is a highly adaptable, multi-leg textile lifting assembly designed specifically to handle loads requiring multiple attachment points, ensuring superior load balance and stability.
| Type | Weight | Load Protection | Best For |
|---|---|---|---|
| Bridle Round Sling Current Item |
Ultra Light | High (Non-marring) |
Delicate surfaces, painted equipment, aerospace, marine. |
| Chain Sling Assembly Heavy Duty |
Heavy | Low (Abrasive) |
Rough environments, high temperatures, sharp edges. |
| Item No. | Illustration | Color | Vertical Capacity (lbs) | Min Leg Length (ft) | Product Code |
|---|---|---|---|---|---|
| RSBS-1-1 |  |
Purple | 2,600 | 4 | 3100102600 |
| RSBS-1-2 | Green | 5,300 | 4 | 3100105300 | |
| RSBS-1-3 | Yellow | 8,400 | 4 | 3100108400 | |
| RSBS-1-4 | Tan | 10,600 | 4 | 3100110600 | |
| RSBS-1-5 | Red | 13,200 | 4 | 3100113200 | |
| RSBS-1-6 | White | 16,800 | 8 | 3100116800 | |
| RSBS-1-7 | Blue | 21,200 | 8 | 3100121200 |
| Item No. | Illustration | Color | Capacity at Horizontal Angle (lbs) | Product Code | ||
|---|---|---|---|---|---|---|
| 60° | 45° | 30° | ||||
| RSBS-2-1 |  |
Purple | 4,500 | 3,700 | 2,600 | 3100204500 |
| RSBS-2-2 | Green | 9,200 | 7,500 | 5,300 | 3100209200 | |
| RSBS-2-3 | Yellow | 14,500 | 11,800 | 8,400 | 3100214500 | |
| RSBS-2-4 | Tan | 18,300 | 14,900 | 10,600 | 3100218300 | |
| RSBS-2-5 | Red | 22,800 | 18,600 | 13,200 | 3100222800 | |
| RSBS-2-6 | White | 29,000 | 23,700 | 16,800 | 3100229000 | |
| RSBS-2-7 | Blue | 36,700 | 29,900 | 21,200 | 3100236700 | |
| Item No. | Illustration | Color | Capacity at Horizontal Angle (lbs) | Product Code | ||
|---|---|---|---|---|---|---|
| 60° | 45° | 30° | ||||
| RSBS-3-1 |  |
Purple | 6,750 | 5,520 | 3,900 | 3100306750 |
| RSBS-3-2 | Green | 13,800 | 11,250 | 7,950 | 3100313800 | |
| RSBS-3-3 | Yellow | 21,750 | 17,700 | 12,600 | 3100321750 | |
| RSBS-3-4 | Tan | 27,450 | 22,350 | 15,900 | 3100327450 | |
| RSBS-3-5 | Red | 34,200 | 27,900 | 19,800 | 3100334200 | |
| Item No. | Illustration | Color | Capacity at Horizontal Angle (lbs) | Product Code | ||
|---|---|---|---|---|---|---|
| 60° | 45° | 30° | ||||
| RSBS-4-1 |  |
Purple | 9,000 | 7,360 | 5,200 | 3100409000 |
| RSBS-4-2 | Green | 18,400 | 15,000 | 10,600 | 3100418400 | |
| RSBS-4-3 | Yellow | 29,000 | 23,600 | 16,800 | 3100429000 | |
| RSBS-4-4 | Tan | 36,600 | 29,800 | 21,200 | 3100436600 | |
Horizontal Angle Matter: The capacity of a multi-leg sling decreases as the angle between the leg and the horizontal decreases.
For example, a sling rated for 1,000 lbs in a vertical lift will have significantly reduced capacity in a basket hitch depending on the choke angle.
| Choker Hitch Capacity Reduction | ||
|---|---|---|
| Angle of Choke | Reduction Factor | |
| 120° - 180° | 1.00 (100%) | |
| 90° - 119° | 0.87 (87%) | |
| 60° - 89° | 0.74 (74%) | |
| 0° - 59° | 0.50 (50%) | |
