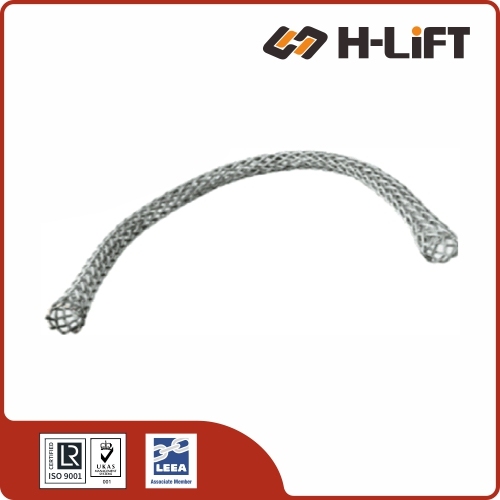

The H-Lift Cable Pulling Sock with Open End CS-AB Type is a high-strength steel wire pulling grip for connecting and pulling two cables in a continuous run through conduits or lift shafts.
The CS-AB Type Cable Sock is a specialized open-ended grip designed for joining two cables or ropes end-to-end. Featuring a double-ended tubular mesh, it securely grips both cable ends simultaneously, creating a continuous link. This makes it the ideal tool for replacing old elevator ropes or pulling new power cables by attaching them to existing lines.
Features an open-ended tubular mesh that slides over the ends of two separate cables, gripping both simultaneously to form a strong, temporary link for pulling.
Perfect for replacing old elevator/lift cables. Attach the new cable to the old one and pull it through the system, saving time and effort.
The galvanized steel mesh contracts around both cable ends as tension is applied, ensuring a secure hold during the pulling process without damaging the cable surface.
Capable of handling significant pulling loads (up to 4500 lbs), ensuring safe and reliable operation during heavy cable installation tasks.
| Item No. | Range (mm) |
Lattice Length (mm) |
Max. Working Load (lbs) |
Weight (kg) |
Product Code |
|---|---|---|---|---|---|
| CSAB0811 | 8 - 11 | 840 | 600 | 0.05 | 707003011 |
| CSAB1113 | 11 - 13 | 1010 | 800 | 0.12 | 707003013 |
| CSAB1316 | 13 - 16 | 1210 | 1200 | 0.22 | 707003016 |
| CSAB1621 | 16 - 21 | 1320 | 1500 | 0.27 | 707003021 |
| CSAB2125 | 21 - 25 | 1720 | 2000 | 0.44 | 707003025 |
| CSAB2530 | 25 - 30 | 1720 | 2500 | 0.52 | 707003030 |
| CSAB3035 | 30 - 35 | 2080 | 3000 | 0.7 | 707003035 |
| CSAB3542 | 35 - 42 | 2280 | 3500 | 0.95 | 707003042 |
| CSAB4250 | 42 - 50 | 2880 | 4500 | 2.1 | 707003050 |
