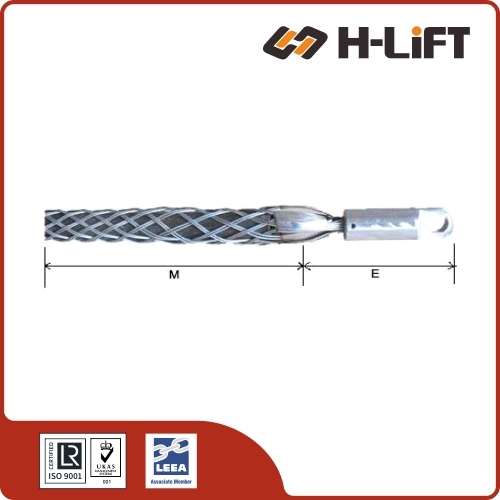

The H-Lift Cable Sock CS-B Type is a woven steel cable pulling grip that securely holds cables during installation through conduits or ducts in utility and telecommunications projects.
The CS-B Type Single Eye Cable Sock is designed for heavy-duty pulling operations involving large diameter cables. With a robust galvanized steel mesh, it offers a secure grip for cables ranging from 13mm up to 177mm, making it the ideal choice for major utility and telecom projects.
Designed to cover a broader spectrum of cable diameters than standard light-duty socks, accommodating cables from 13mm up to 177mm.
Built for substantial pulling tasks with Maximum Working Loads (MWL) ranging from 1200 lbs to 5200 lbs, suitable for heavy power lines and wire ropes.
The galvanized steel wire mesh contracts and tightens around the cable sheath as pulling tension is applied, ensuring a non-slip hold that protects the cable.
Features a single flexible eye at the pulling end, allowing for easy and secure attachment to pulling lines, swivels, or shackles.
| Item No. | Range (mm) |
M (mm) |
E (mm) |
Max. Working Load (lbs) |
Weight (kg) |
Product Code |
|---|---|---|---|---|---|---|
| CSB013016 | 13 - 16 | 406 | 127 | 1200 | 0.10 | 707004016 |
| CSB016019 | 16 - 19 | 406 | 127 | 1500 | 0.11 | 707004019 |
| CSB019025 | 19 - 25 | 813 | 152 | 2000 | 0.25 | 707004025 |
| CSB025038 | 25 - 38 | 838 | 178 | 3000 | 0.34 | 707004038 |
| CSB038050 | 38 - 50 | 864 | 178 | 4500 | 0.76 | 707004050 |
| CSB051063 | 51 - 63 | 914 | 229 | 4500 | 0.83 | 707004063 |
| CSB063076 | 63 - 76 | 965 | 254 | 4800 | 1.09 | 707004076 |
| CSB076089 | 76 - 89 | 990 | 254 | 4800 | 1.11 | 707004089 |
| CSB089102 | 89 - 102 | 1041 | 254 | 5200 | 1.39 | 707004102 |
| CSB102114 | 102 - 114 | 1067 | 254 | 5200 | 1.42 | 707004114 |
| CSB114126 | 114 - 126 | 1473 | 254 | 5200 | 1.85 | 707004126 |
| CSB127152 | 127 - 152 | 1524 | 254 | 5200 | 1.91 | 707004152 |
| CSB152177 | 152 - 177 | 1676 | 254 | 5200 | 2.07 | 707004177 |
