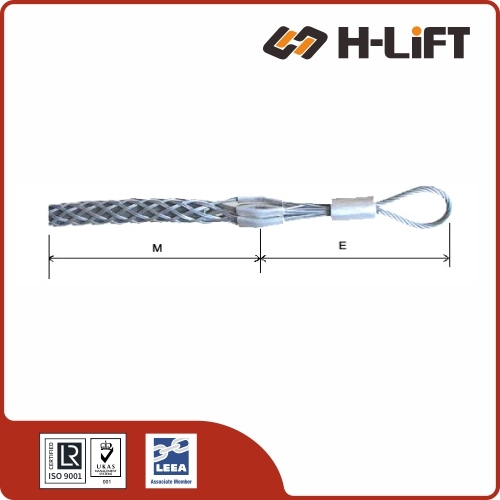

The H-Lift Cable Sock CS-C Type is a heavy-duty steel wire cable pulling grip designed to pull medium to large diameter cables through conduits, ducts, and trenches over long distances.
The CS-C Type Cable Pulling Sock is a heavy-duty grip engineered for secure and efficient pulling of medium to large diameter cables. Featuring a longer mesh length and high-strength galvanized steel braid, it delivers exceptional grip performance for demanding installations in deep ducts, buried conduits, and overhead lines.
Built from rugged galvanized steel wire for superior tensile strength. Designed to handle heavy loads with MWL up to 5200 lbs.
Features a longer mesh than standard grips (e.g., 914mm+), providing increased surface area contact for a more secure, slip-resistant hold on long pulls.
The braided mesh contracts under load, tightening around the cable. This distribution of force minimizes slippage and prevents damage to the cable jacket.
Ideal for electrical power installations, telecommunications, and utility infrastructure. Suitable for both underground and overhead cable deployment.
| Item No. | Range (mm) |
M (mm) |
E (mm) |
Max. Working Load (lbs) |
Weight (kg) |
Product Code |
|---|---|---|---|---|---|---|
| CSC19025 | 19 - 25 | 914 | 229 | 2000 | 0.30 | 707005025 |
| CSC25038 | 25 - 38 | 914 | 229 | 3000 | 0.39 | 707005038 |
| CSC38050 | 38 - 50 | 914 | 279 | 4500 | 0.87 | 707005050 |
| CSC51063 | 51 - 63 | 914 | 305 | 4500 | 0.89 | 707005063 |
| CSC63076 | 63 - 76 | 914 | 305 | 4800 | 1.09 | 707005076 |
| CSC76089 | 76 - 89 | 914 | 356 | 4800 | 1.13 | 707005089 |
| CSC89102 | 89 - 102 | 1016 | 356 | 5200 | 1.47 | 707005102 |
