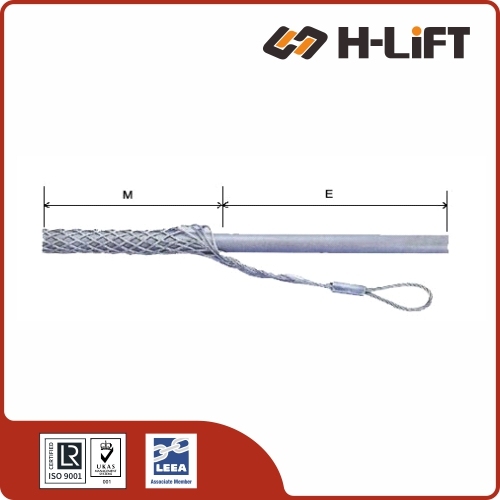

The H-Lift Cable Sock CS-S Type is a high-strength steel wire pulling grip engineered for heavy-duty cable installation through conduits and ducts over long distances.
The CS-S Type Cable Pulling Sock is a compact, high-performance cable grip designed for securely pulling and installing cables in confined spaces. Constructed from premium galvanized steel wire braid, this pulling sock provides a dependable grip that tightens under load to ensure a secure, non-slip hold on the cable surface. Its shorter sleeve design makes it ideal for use inside ducts, conduits, and tight installation environments where traditional long pulling socks are difficult to deploy.
Features a shorter mesh length specifically designed for easy use in tight ducts, small conduits, or low-access areas where standard grips are too bulky.
The braided structure contracts under tension, providing a secure, slip-resistant hold. The harder you pull, the tighter it grips the cable.
Made from high-quality galvanized steel wire for excellent tensile performance, corrosion resilience, and extended service life in harsh environments.
Equipped with a strong eye loop that allows for safe, reliable, and efficient connection to winches, pulling ropes, or hoist systems.

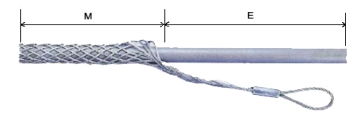

| Item No. | Size (mm) |
M (mm) |
E (mm) |
Max. Working Load (lbs) |
Weight (kg) |
Product Code |
|---|---|---|---|---|---|---|
| CSS19025 | 19 - 25 | 280 | 127 | 2000 | 0.11 | 707006025 |
| CSS25032 | 25 - 32 | 280 | 127 | 2500 | 0.12 | 707006032 |
| CSS32038 | 32 - 38 | 508 | 152 | 3000 | 0.22 | 707006038 |
| CSS38044 | 38 - 44 | 432 | 229 | 3500 | 0.27 | 707006044 |
| CSS44050 | 44 - 50 | 457 | 254 | 4500 | 0.52 | 707006050 |
| CSS51063 | 51 - 63 | 483 | 254 | 4500 | 0.54 | 707006063 |
| CSS63076 | 63 - 76 | 508 | 254 | 4800 | 0.68 | 707006076 |
| CSS76089 | 76 - 89 | 533 | 305 | 4800 | 0.75 | 707006089 |
| CSS89102 | 89 - 102 | 559 | 305 | 5200 | 0.93 | 707006102 |
