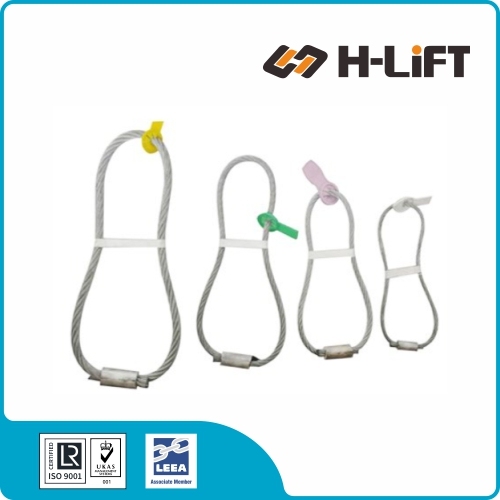

The H-Lift Cast-In Lifting Loop is an economical and efficient lifting solution designed for permanent embedment into precast concrete units. Manufactured from durable galvanized mild steel wire rope, this loop creates an exposed lifting point that allows crane hooks or shackles to connect directly without additional hardware, making it ideal for elements where the attachment point will be hidden after final installation.
The Cast-In Lifting Loop is a cost-effective lifting anchor for precast concrete elements. Made from high-grade galvanized wire rope, it is cast directly into the concrete, providing a strong and flexible lifting point that eliminates the need for expensive recess formers or lifting clutches.
One of the most cost-effective lifting systems available. No special lifting clutches or hardware required—simply hook on with a standard crane hook.
Each loop features a color-coded tag clearly identifying the Safe Working Load (SWL). This ensures quick visual verification and safety compliance on site.
Manufactured from high-quality Galvanized Mild Steel Wire Rope. Resists corrosion during storage and transport, ensuring integrity until installation.
Available in capacities from 0.8 Tonne up to 20 Tonnes. Suitable for lifting beams, slabs, panels, and utility structures.
| Item No. | Rope Dia. (mm) |
WLL (t) |
Length (mm) |
Width (mm) |
Product Code |
|---|---|---|---|---|---|
| WRSLL006 | 6 | 0.8 | 200 | 50 | 602003006 |
| WRSLL008 | 8 | 1.6 | 235 | 70 | 602003008 |
| WRSLL010 | 10 | 2.5 | 280 | 80 | 602003010 |
| WRSLL014 | 14 | 5.2 | 385 | 180 | 602003014 |
| WRSLL016 | 16 | 6.3 | 385 | 180 | 602003016 |
| WRSLL020 | 20 | 10 | 470 | 200 | 602003020 |
| WRSLL022 | 22 | 12.5 | 510 | 200 | 602003022 |
| WRSLL024 | 24 | 16 | 560 | 220 | 602003024 |
| WRSLL028 | 28 | 20 | 610 | 280 | 602003028 |
