The H-Lift Chain Anchor with Delta Ring and Grab Hook is a heavy-duty cargo securement assembly designed to act as a durable transition point between ratchet straps and vehicle anchor points.

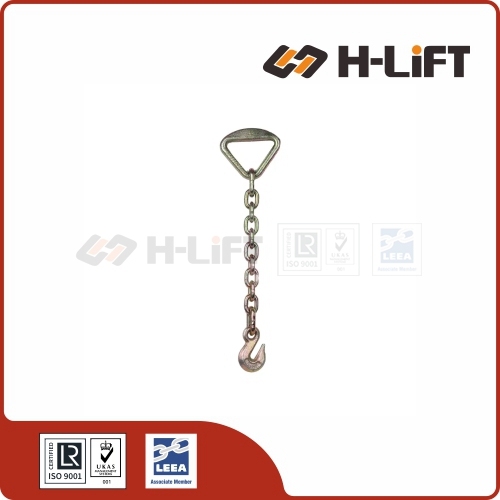

The Chain Anchor with Delta Ring is a specialized end-fitting assembly designed for heavy-duty cargo securement. Featuring a short length of transport chain terminating in an Eye Grab Hook and a forged Delta Ring, it bridges the gap between the tensioning power of fabric webbing straps and the severe abrasion resistance required to wrap around steel pipes, sharp machinery edges, or vehicle frames.
Constructed with a short length of high-strength chain, connected via a coupling link to a forged Delta Ring on one end, and an Eye Grab Hook on the other, creating a robust anchor point.
The triangular "delta" ring (available in 2", 3", and 4" inside widths) features a flat bottom edge. This allows webbing and ratchet straps to sit perfectly flat, preventing twisting and spreading the load evenly across the strap fibers.
Available in Grade 43 (High Test) and Grade 70 (Transport) options to suit various WLLs. Coated in a highly visible Gold Zinc Plating for excellent corrosion resistance and easy DOT inspection.
The perfect solution for highly abrasive loads where standard polyester webbing might easily fray or cut. The steel chain section takes the brunt of the wear against the load or the trailer's rub rail.
| Item No. | A / Delta Ring | B / Coupling Link | C / Chain Grade | No. of Chain Links | D / Eye Grab Hook | Length | WLL (lbs) | B.L. (lbs) | Product Code |
|---|---|---|---|---|---|---|---|---|---|
| CADR001 | 2" | 3/8" | 1/4" - G43 | 14 | 5/16" | 18" | 3,300 | 10,000 | 708002001 |
| CADR002 | 2" | 3/8" | 5/16" - G43 | 11 | 3/8" | 18" | 3,300 | 10,000 | 708002002 |
| CADR003 | 3" | 7/16" | 5/16" - G70 | 10 | 5/16" | 18" | 5,400 | 16,200 | 708002003 |
| CADR004 | 3" | 7/16" | 5/16" - G70 | 10 | 3/8" | 18" | 5,400 | 16,200 | 708002004 |
| CADR005 | 3" | 7/16" | 3/8" - G43 | 5 | 3/8" | 12" | 5,400 | 16,200 | 708002005 |
| CADR006 | 3" | 7/16" | 3/8" - G43 | 9 | 3/8" | 18" | 5,400 | 16,200 | 708002006 |
| CADR007 | 4" | 7/16" | 3/8" - G70 | 9 | 3/8" | 18" | 6,660 | 20,000 | 708002007 |
