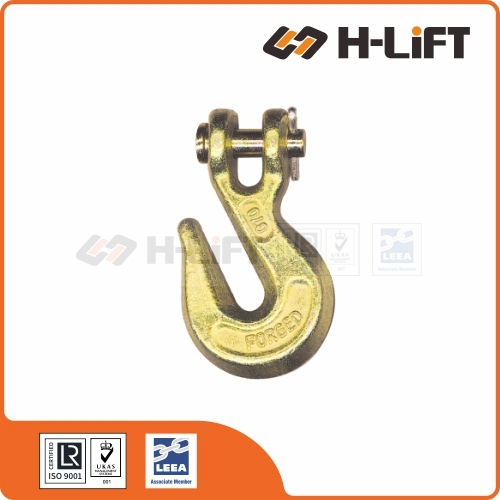

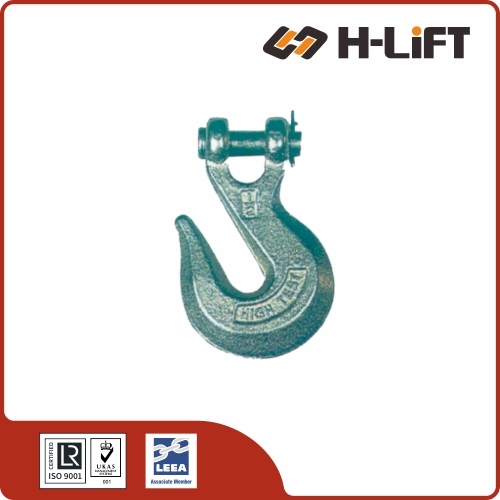

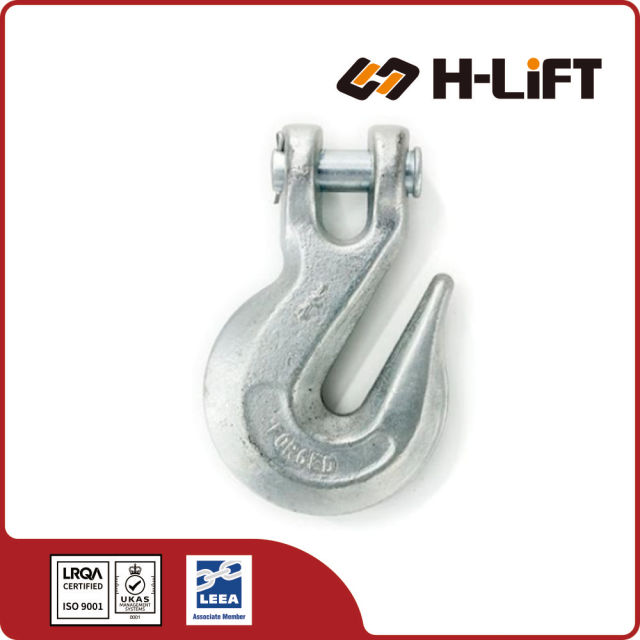

The H-Lift Clevis Grab Hook features a clevis-style attachment with pin connection, designed to grip chain links at any point for adjustable load securement and rigging applications.
The Clevis Grab Hook is the industry standard for shortening chains. Designed with a narrow throat to lock onto a chain link, it features a built-in clevis pin for direct attachment. Choose from Carbon Steel (Grade 43) for general utility or Alloy Steel (Grade 70) for heavy-duty transport and cargo control.
Carbon (G43): White Zinc finish. Ideal for farm & industrial utility.
Alloy (G70): Yellow Zinc finish. High-strength for transport & tie-down.
Features a built-in clevis pin and cotter pin for direct, secure attachment to the chain link, eliminating the need for an intermediate coupling link.
The narrow throat opening is engineered to "grab" a specific chain link securely, allowing users to easily adjust the leg length of the chain assembly.
Drop forged, quenched, and tempered construction ensures maximum structural integrity and durability under heavy loads.
| Item No. | Chain Size | W.L.L. (lbs) | Dimensions (inch) | Weight | Product Code | |||||
|---|---|---|---|---|---|---|---|---|---|---|
| Carbon | Alloy | (inch) | Carbon | Alloy | B | E | P | R | (lbs) | |
| HK0106C | HK0106A | 1/4 | 2,600 | 3,600 | 0.36 | 0.40 | 0.38 | 1.97 | 0.40 | 703001006 |
| HK0108C | HK0108A | 5/16 | 3,900 | 5,400 | 0.40 | 0.44 | 0.44 | 2.26 | 0.79 | 703001008 |
| HK0110C | HK0110A | 3/8 | 5,400 | 7,500 | 0.48 | 0.50 | 0.47 | 2.63 | 1.00 | 703001010 |
| HK0111C | HK0111A | 7/16 | 7,200 | 10,000 | 0.66 | 0.56 | 0.56 | 2.75 | 1.50 | 703001011 |
| HK0113C | HK0113A | 1/2 | 9,200 | 12,750 | 0.75 | 0.66 | 0.63 | 3.19 | 2.10 | 703001013 |
| HK0116C | HK0116A | 5/8 | 12,750 | 19,000 | 0.91 | 0.78 | 0.75 | 4.09 | 4.20 | 703001016 |
| HK0119C | HK0119A | 3/4 | 18,500 | 27,000 | 0.94 | 0.94 | 0.88 | 4.63 | 6.50 | 703001019 |
