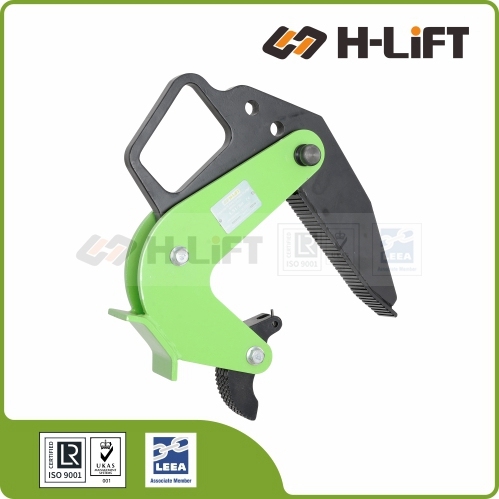

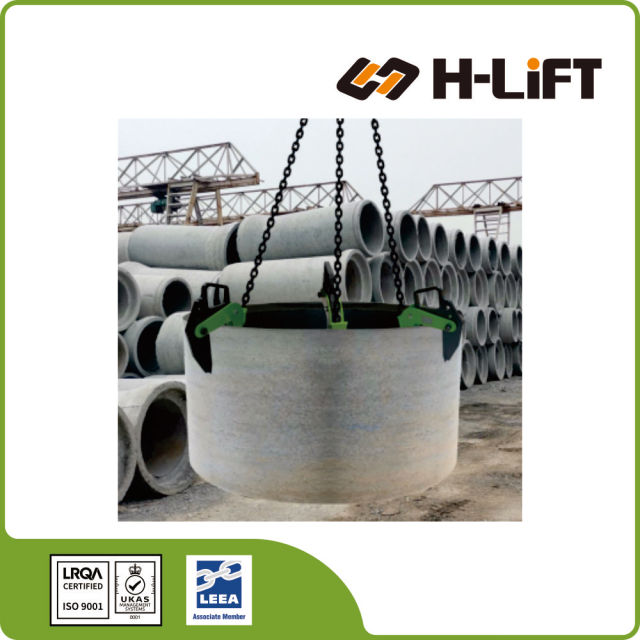

The Concrete Pipe Lifting Clamp is a specialized below-the-hook device designed to safely grip, lift, and transport precast concrete pipes and manhole rings.

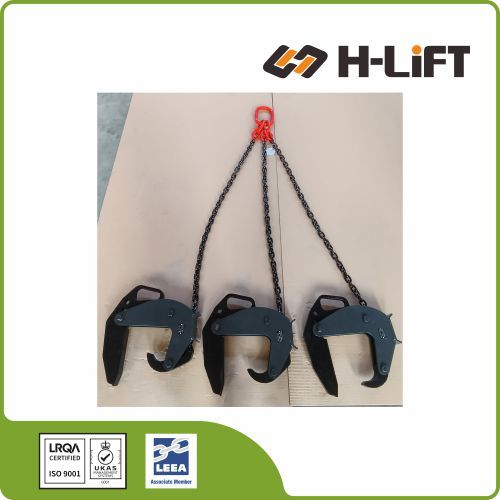

| Item No. | Set Capacity | Jaw Opening (Z) | Mouth Depth (E) | Pressure Line (F) | Chain Specs | Dimensions (mm) | Net Weight | Product Code | ||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Chain Size | Length | A | B | C | D | |||||||
| (3pcs/set) | (mm) | (mm) | (mm) | (mm) | (m) | - | - | - | - | (kg) | ||
| CPLC150 | 1.5t | 40-120 | 165 | 100 | 6 x 18 | 1.5 | 135 | 75 | 18 | 180 | 42.5 | 161201500 |
| CPLC318 | 3.0t | 50-180 | 245 | 175 | 10 x 30 | 1.5 | 180 | 100 | 26 | 310 | 92.0 | 161203001 |
| CPLC320 | 3.0t | 90-220 | 245 | 175 | 10 x 30 | 1.5 | 180 | 100 | 26 | 310 | 96.5 | 161203002 |

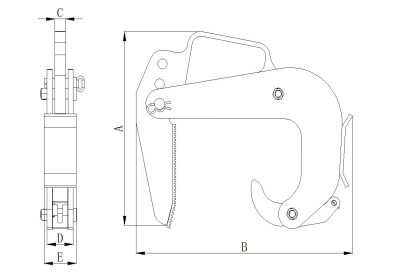

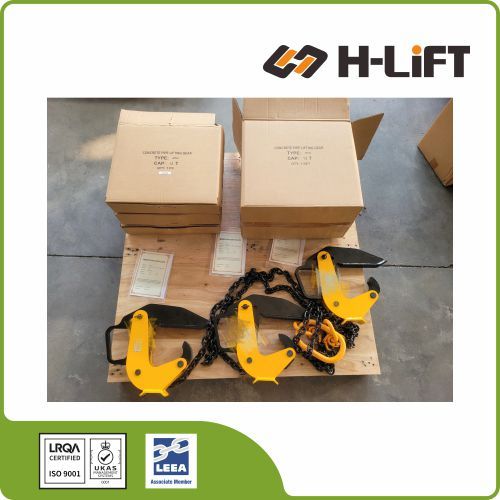

| Item No. | Set Capacity | Jaw Opening | Dimensions (mm) | Net Weight | Product Code | ||||
|---|---|---|---|---|---|---|---|---|---|
| A | B | C | D | E | |||||
| (3pcs/set) | (mm) | - | - | - | - | - | (kg) | ||
| CPL150 | 1.5t | 40-120 | 416 | 347 | 20 | 53 | 64 | 12.6 | 161211500 |
| CPL318 | 3.0t | 50-180 | 413 | 461 | 25 | 61 | 75 | 23.7 | 161213001 |
| CPL320 | 3.0t | 90-220 | 420 | 488 | 25 | 61 | 75 | 25.0 | 161213002 |
Lifting clamps utilize various mechanisms (lever, cam, roller, or screw) to provide a friction grip on the plate. When selecting a clamp, consider:
IMPORTANT: Minimum Load Requirement
Some clamps (especially cam action types) rely on a minimum load to engage the gripping force safely. Unless specified otherwise by the manufacturer:
• The load should not be less than 20% of the Safe Working Load (SWL).
• The plate thickness should not be less than 20% of the maximum jaw opening.
Do not use defective clamps. Place the clamp over the load center. If the plate is long and tends to bend, use two clamps with a spreader beam to prevent the clamps from twisting. Keep oil, grease, and contaminants away from the gripping jaws.
Regularly inspect for:
