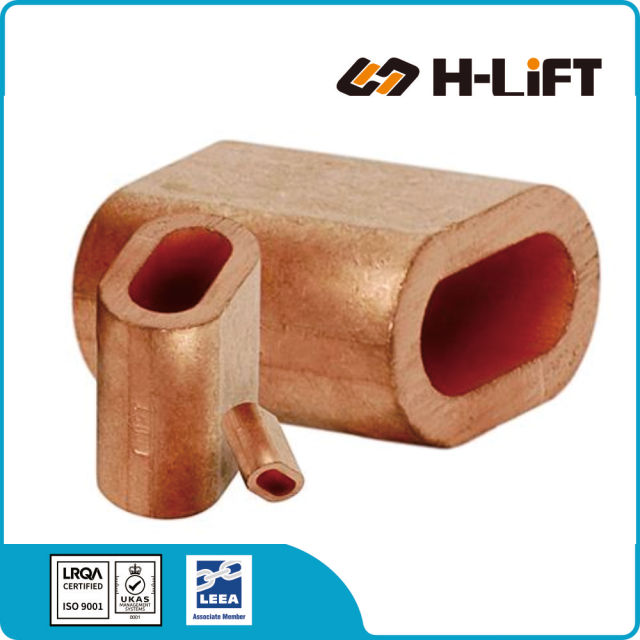

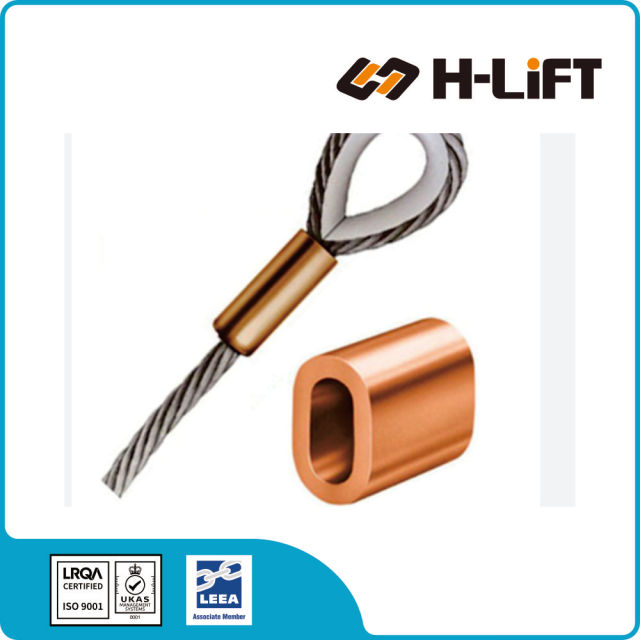

The H-Lift Copper Ferrule is a premium crimping sleeve designed for use with stainless steel wire ropes. Manufactured from seamless copper tubing, these ferrules provide a durable, high-strength termination that resists galvanic corrosion in saltwater environments, making them the superior choice over aluminium for marine and architectural stainless steel rigging.
Copper Ferrules are essential for swaging Stainless Steel Wire Ropes. Unlike aluminum, copper is chemically compatible with stainless steel, preventing dangerous galvanic corrosion (electrolysis) in marine environments. Available in Oval and Hourglass shapes for secure, reliable terminations.
Specifically designed to prevent Galvanic Corrosion. Essential when using stainless steel wire rope in saltwater or outdoor environments where aluminum would fail.
Made from pure copper, which is soft enough to "flow" into wire strands for a secure grip, yet strong enough for heavy rigging loads.
Hourglass (Duplex): Ensures parallel alignment of strands.
Oval: Standard shape for general swaging.
Ideal for yacht rigging, architectural balustrades, and any application involving stainless steel cable. Sizes from 1mm to 18mm.
| Feature | Copper Ferrules | Aluminum Ferrules | Steel Ferrules |
|---|---|---|---|
| Best For | Stainless Steel Rope | Galvanized Steel Rope | Galvanized Steel Rope |
| Corrosion Risk | Very Low (with SS) | High (with SS) | Moderate |
| Swaging | Hand / Hydraulic | Hand / Hydraulic | Hydraulic Only |

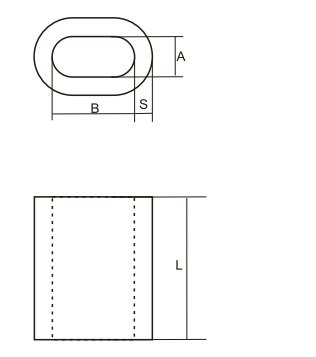

A=Inside Width | B=Inside Height | S=Wall Thickness | L=Total Length| Item No. | Size | Dimensions (mm) | Weight (kgs/1000pcs) |
Product Code | |||
|---|---|---|---|---|---|---|---|
| A | B | S | L | ||||
| WRFCF010 | 1mm | 1.3 | 2.6 | 0.85 | 5 | 0.32 | 606007010 |
| WRFCF015 | 1.5mm | 1.8 | 3.6 | 1.05 | 6 | 0.72 | 606007015 |
| WRFCF020 | 2mm | 2.4 | 4.8 | 0.85 | 7 | 0.82 | 606007020 |
| WRFCF025 | 2.5mm | 2.7 | 5.4 | 1.1 | 9 | 1.7 | 606007025 |
| WRFCF030 | 3mm | 3.3 | 6.6 | 1.35 | 11 | 2.9 | 606007030 |
| WRFCF035 | 3.5mm | 3.9 | 7.8 | 1.6 | 13 | 4.5 | 606007035 |
| WRFCF040 | 4mm | 4.3 | 8.8 | 1.7 | 14 | 6.2 | 606007040 |
| WRFCF045 | 4.5mm | 5.1 | 10.2 | 1.9 | 16 | 8.9 | 606007045 |
| WRFCF050 | 5mm | 5.6 | 11.2 | 2.1 | 18 | 12.2 | 606007050 |
| WRFCF060 | 6mm | 6.7 | 13.4 | 2.5 | 21 | 20 | 606007060 |
| WRFCF065 | 6.5mm | 6.9 | 14 | 2.7 | 23 | 27 | 606007065 |
| WRFCF070 | 7mm | 7.5 | 15 | 3 | 25 | 32 | 606007070 |
| WRFCF080 | 8mm | 8.5 | 17 | 3.5 | 28 | 47 | 606007080 |
| WRFCF090 | 9mm | 9.9 | 19.8 | 3.7 | 32 | 68 | 606007090 |
| WRFCF100 | 10mm | 10.9 | 21.8 | 4.1 | 35 | 90 | 606007100 |
| WRFCF110 | 11mm | 11.6 | 23.2 | 4.2 | 39 | 122 | 606007110 |
| WRFCF120 | 12mm | 13.2 | 26.4 | 4.9 | 42 | 158 | 606007120 |
| WRFCF130 | 13mm | 14.2 | 28.4 | 5.4 | 46 | 198 | 606007130 |
| WRFCF140 | 14mm | 15.3 | 30.6 | 5.8 | 49 | 243 | 606007140 |
| WRFCF160 | 16mm | 17.5 | 35 | 6.7 | 56 | 366 | 606007160 |
| WRFCF180 | 18mm | 19 | 38 | 7.8 | 63 | 529 | 606007180 |
