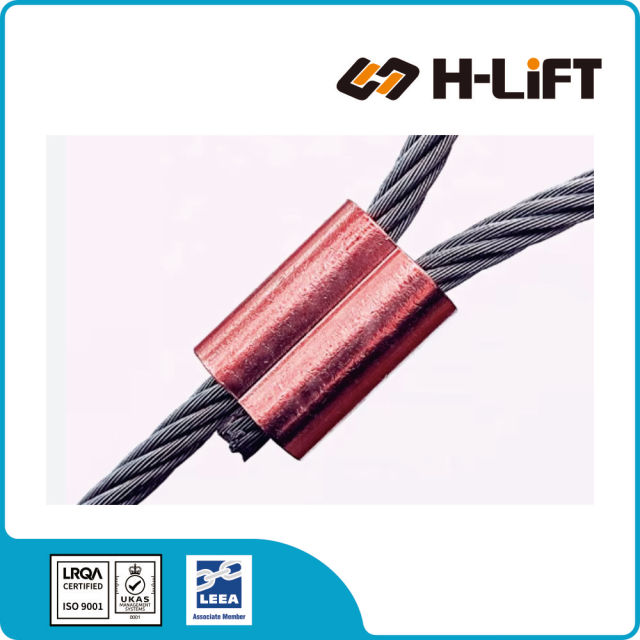

The H-Lift Copper Hourglass Sleeve is a premium termination fitting specifically engineered for use with stainless steel wire ropes. Its distinct hourglass profile facilitates easy swaging and ensures a uniform compression grip, while the copper construction effectively eliminates the risk of galvanic corrosion, making it the superior choice for marine and architectural rigging over standard aluminum sleeves.

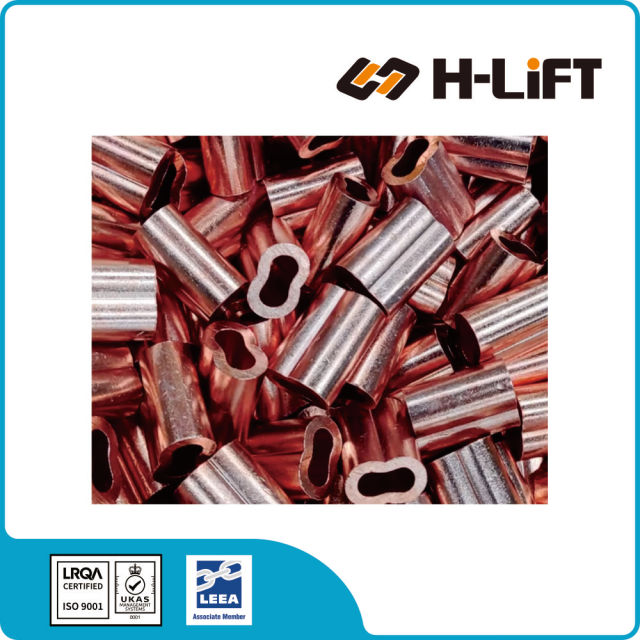

The Copper Hourglass (Duplex) Sleeve is specifically engineered for swaging Stainless Steel Wire Rope. Its unique figure-8 design keeps wire strands parallel during crimping, while the pure copper material prevents galvanic corrosion, ensuring a safe and durable termination in marine environments.
The unique Hourglass shape separates the two wire strands. This ensures they remain parallel and do not twist inside the sleeve, resulting in a cleaner, stronger crimp.
Specifically designed to prevent Galvanic Corrosion. Essential when using stainless steel wire rope in saltwater or outdoor environments where aluminum would fail.
When properly swaged, these sleeves can withstand 90% to 95% of the wire rope's nominal breaking strength. Copper flows effectively into cable crevices for a solid bond.
Available in a comprehensive range of fractional sizes from 3/64" up to 1/2" to fit standard US wire rope diameters.
A=Width | B=Height | C=Thickness | D=Length | L=Total Length| Item No. | Size | Dimensions (inch) | Weight | Product Code | ||||
|---|---|---|---|---|---|---|---|---|
| inch | A | B | C | D | L | kgs/1000pcs | ||
| WRFCH0364 | 3/64" | 1/16 | 1/8 | 9/64 | 13/64 | 3/8 | 1 | 6060060364 |
| WRFCH0116 | 1/16" | 3/32 | 11/64 | 11/64 | 1/4 | 25/64 | 1.4 | 6060060116 |
| WRFCH0332 | 3/32" | 7/64 | 1/4 | 15/64 | 3/8 | 29/64 | 4 | 6060060332 |
| WRFCH0108 | 1/8" | 9/64 | 21/64 | 9/32 | 1/2 | 9/16 | 8 | 6060060108 |
| WRFCH0532 | 5/32" | 3/16 | 27/64 | 3/8 | 19/32 | 5/8 | 12.3 | 6060060532 |
| WRFCH0316 | 3/16" | 7/32 | 7/16 | 7/16 | 43/64 | 7/8 | 25 | 6060060316 |
| WRFCH0732 | 7/32" | 1/4 | 33/64 | 15/32 | 23/32 | 7/8 | 32 | 6060060732 |
| WRFCH0104 | 1/4" | 9/32 | 19/32 | 17/32 | 27/32 | 1-1/8 | 36 | 6060060104 |
| WRFCH0516 | 5/16" | 3/8 | 23/32 | 21/32 | 1-1/64 | 1-1/8 | 64 | 6060060516 |
| WRFCH0308 | 3/8" | 7/16 | 13/16 | 23/32 | 1-1/8 | 1-1/2 | 89 | 6060060308 |
| WRFCH0102 | 1/2" | 19/32 | 17/64 | 31/32 | 1-15/32 | 1-7/8 | 270 | 6060060102 |
