Crane Scale HDCS type

No.1812

H-Lift HDCS Type Crane Scale is a high-precision digital weighing device designed for suspended loads in manufacturing, construction, shipping, and logistics. The housing material is optimized based on capacity to ensure the best balance of portability and industrial-grade durability.

  • Tailored Housing Construction: Features a lightweight aluminum alloy steel body for capacities up to 20t and a heavy-duty alloy steel body for 30t and above.
  • Crane/Hoist Suspension: High-strength load cell with a clear digital display for seamless integration with crane hooks.
  • Versatile Applications: Expertly handles machinery, vehicles, and containers too bulky for standard floor scales.
  • Wireless Connectivity: Optional data logging and remote monitoring capabilities for enhanced operational efficiency.
  • Shackle & Hook: The crane scale with shackle and hook is available upon request.
CONTACT US

  • Technical Data

  • What is a Crane Scale

Digital Crane Scale HDCS Type

HDCS Digital Crane Scale

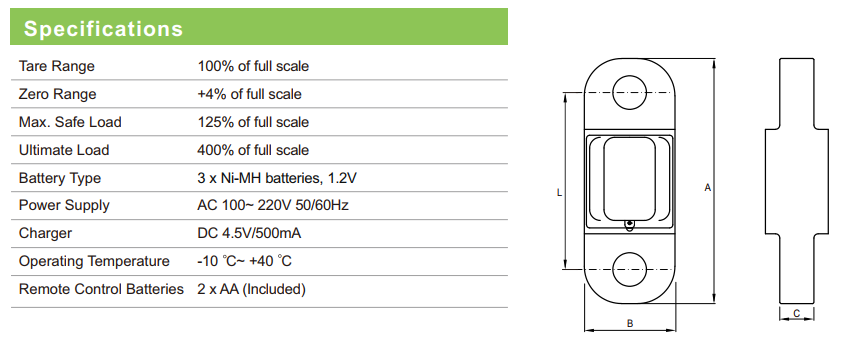

Technical Reference: Please refer to the diagram above to identify dimensions A, B, C, and L in the table below.

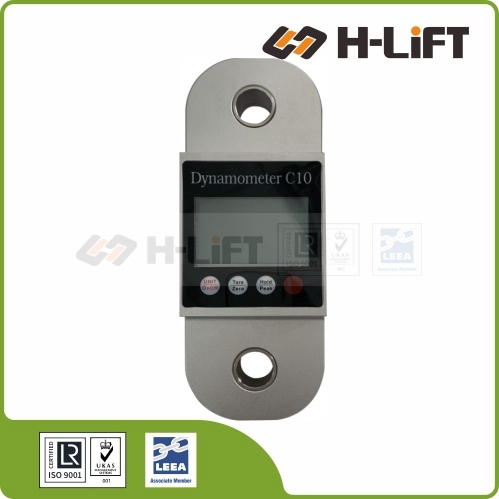

High Visibility: Large backlit LCD ensures readability in all lighting conditions.

Key Features & Benefits

  • Tailored Body Construction: Features a lightweight aluminum alloy steel body for capacities from 0.5t up to 20t, and a heavy-duty alloy steel body for capacities of 30t and above, offering the perfect balance of portability and industrial durability.
  • High-Visibility LCD Display: Equipped with a large, backlit LCD screen that ensures clear weight readings from a distance or in low-light conditions.
  • Intelligent Functionality: Includes Unit Conversion (kg/lbs/kN), Data Hold, Zero, Auto Power-off, and Battery Check to streamline operations.
  • Safety First: Features an integrated Overload Warning system to prevent accidents and ensure safe lifting operations.

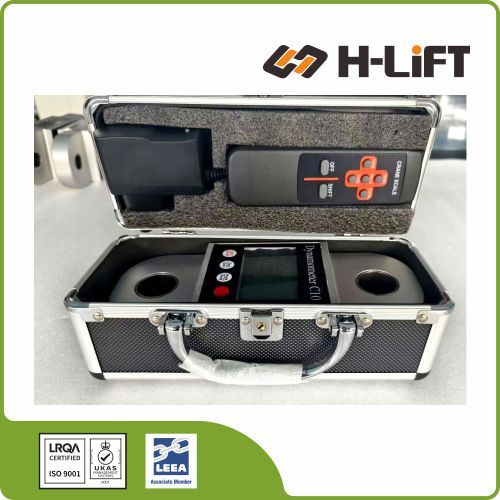

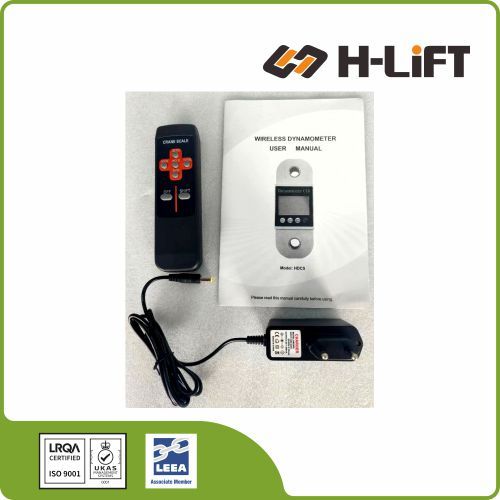

  • Remote Operation: Comes with an infrared remote control, allowing operators to change units or clear measurements from a safe distance.
  • Wide Capacity Range: Available in capacities from 500kg (0.5 ton) up to 100,000kg (100 ton) to suit various heavy-duty lifting needs.

Technical Specifications

Item No. Max. Capacity Min. Capacity Division Value Dimensions (mm) Net Weight Body Material Product Code
A B C L
(t) (kg) (kg) mm mm mm mm (kg)
HDCS-005 0.5 10 0.2 230 85 25 165 1.5 Aluminum 181200500
HDCS-010 1 10 0.5 230 85 25 165 1.5 Aluminum 181201000
HDCS-020 2 20 1 230 85 25 165 1.5 Aluminum 181202000
HDCS-030 3 30 1 230 85 25 165 1.5 Aluminum 181203000
HDCS-032 3.2 30 1 230 85 25 165 1.5 Aluminum 181203200
HDCS-050 5 40 1 230 85 32 165 1.6 Aluminum 181205000
HDCS-064 6.4 100 1 230 85 32 165 1.7 Aluminum 181206400
HDCS-100 10 100 2 315 100 49 200 3.6 Aluminum 181210000
HDCS-150 15 150 5 350 126 70 210 7.1 Aluminum 181215000
HDCS-200 20 200 10 350 126 70 210 7.1 Aluminum 181220000
HDCS-300 30 200 10 410 120 68 270 21 Iron 181230000
HDCS-500 50 400 20 465 150 100 323 43 Iron 181250000
HDCS-1000 100 1000 50 570 190 128 366 82 Iron 181210001

Aluminum Crane Scales

Lightweight, Durable, and Precision Engineered for Industrial Weighing

An aluminium crane scale is a hanging industrial weighing device made with an aluminium alloy housing, designed to measure the weight of loads lifted by a crane, hoist, or overhead lifting system.

What It Is

  • Installed between the crane hook and the load.
  • Weighs the load while it is suspended.
  • Commonly used in warehouses, factories, ports, construction sites, and logistics.

Why Choose Aluminium?

Compared with steel crane scales, aluminium models offer:

  • Lightweight: Easier to handle and install.
  • High strength: Aluminium alloy provides excellent load capacity.
  • Corrosion resistance: Suitable for outdoor or marine environments.
  • Portable: Ideal for mobile weighing tasks.

Main Components

  • Aluminium alloy body (often aircraft-grade).
  • High-accuracy load cell.
  • Top shackle or hook (crane connection).
  • Bottom hook (load connection).
  • Digital display (LED or LCD).

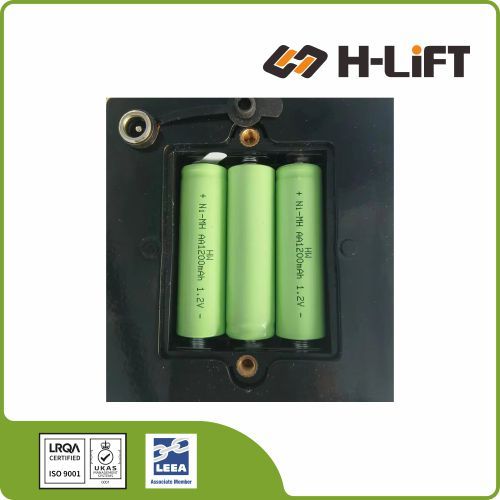

  • Battery or rechargeable power supply.
  • Optional wireless remote control or data output.

Typical Features

  • Weight units: kg / lb / ton.
  • Functions: tare, hold, peak value.
  • Built-in Overload protection.
  • Accuracy usually ±0.1%–0.5% of full scale.
  • Capacities range from 500 kg to 50+ tons.

Common Applications

Steel and metal fabrication • Shipping & cargo handling • Mining and quarrying • Heavy machinery assembly • Quality control during lifting operations

Aluminium vs. Steel Crane Scale Comparison

Feature Aluminium Crane Scale Steel Crane Scale
Weight Light Heavy
Portability High Lower
Corrosion Resistance Better Moderate
Heavy-Duty Impact Moderate Excellent
