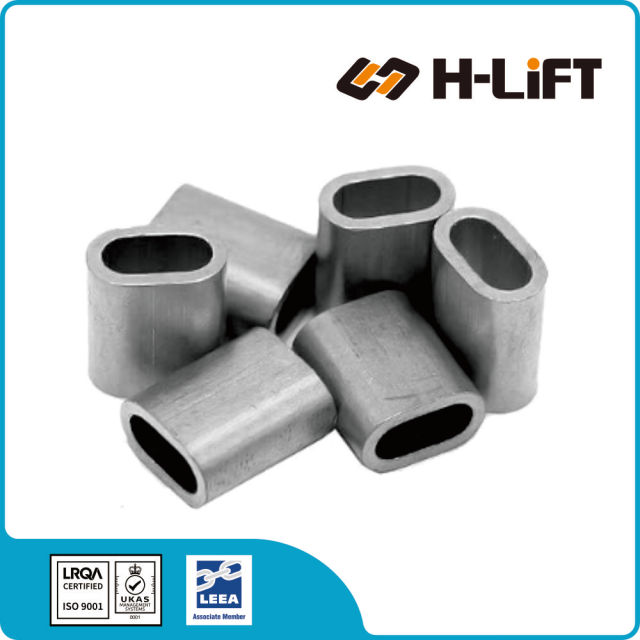

The H-Lift DIN 3093 Aluminium Ferrule is a standardized crimping sleeve essential for creating high-strength eye loops in wire rope assemblies. Fully compliant with DIN 3093 and EN 13411-3 standards, these ferrules provide a seamless and durable compression fit, ensuring safe and reliable terminations for lifting, rigging, and anchoring applications across marine, construction, and mining industries.

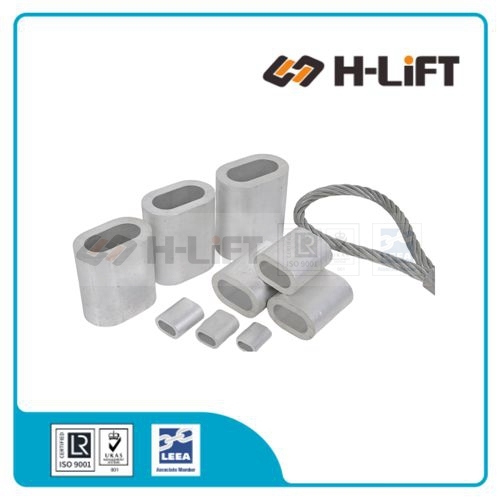

The DIN 3093 (EN 13411-3) Aluminium Ferrule is the industry standard for creating secure, permanent wire rope eye terminations. Manufactured from seamless aluminium alloy tubing, these oval swaging sleeves ensure uniform compression and maximum holding power for lifting slings and static assemblies.
Manufactured to DIN 3093 and the harmonized European standard EN 13411-3. Ensuring safety and reliability for lifting applications.
Made from Seamless Aluminium Alloy tubing. Unlike welded sleeves, this provides uniform strength during the pressing process and superior load retention.
Designed with a flattened oval profile (Form A/B) to easily accommodate the wire rope turnback, creating a perfect, tight eye loop when swaged.
Available in sizes from 1mm up to 60mm. Suitable for general engineering, lifting slings, fall arrest systems, and architectural rigging.

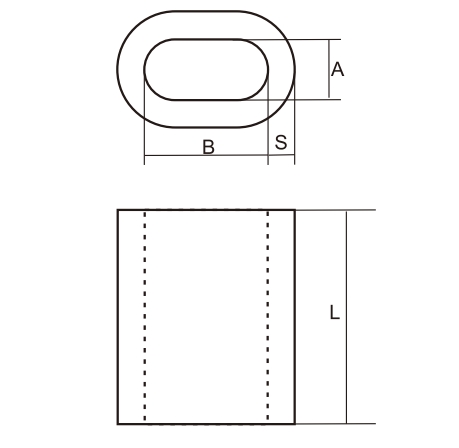

A=Inside Width | B=Inside Height | S=Wall Thickness | L=Total Length| Item No. | Size | Dimensions (mm) | Weight (kg/1000pcs) |
Product Code | |||
|---|---|---|---|---|---|---|---|
| A | B | S | L | ||||
| WRFAF010 | 1mm | 1.2 | 2.4 | 0.65 | 5 | 0.098 | 606001010 |
| WRFAF015 | 1.5mm | 1.7 | 3.4 | 0.75 | 6 | 0.176 | 606001015 |
| WRFAF020 | 2mm | 2.2 | 4.4 | 0.85 | 7 | 0.285 | 606001020 |
| WRFAF025 | 2.5mm | 2.7 | 5.4 | 1.05 | 9 | 0.439 | 606001025 |
| WRFAF030 | 3mm | 3.3 | 6.6 | 1.25 | 11 | 0.907 | 606001030 |
| WRFAF035 | 3.5mm | 3.8 | 7.6 | 1.5 | 13 | 1.18 | 606001035 |
| WRFAF040 | 4mm | 4.4 | 8.8 | 1.7 | 14 | 1.63 | 606001040 |
| WRFAF045 | 4.5mm | 4.9 | 9.8 | 1.9 | 16 | 2.39 | 606001045 |
| WRFAF050 | 5mm | 5.5 | 11.0 | 2.1 | 18 | 3.62 | 606001050 |
| WRFAF060 | 6mm | 6.6 | 13.2 | 2.5 | 21 | 5.87 | 606001060 |
| WRFAF065 | 6.5mm | 7.2 | 14.4 | 2.7 | 23 | 7.18 | 606001065 |
| WRFAF070 | 7mm | 7.8 | 15.6 | 2.9 | 25 | 9.83 | 606001070 |
| WRFAF080 | 8mm | 8.8 | 17.6 | 3.3 | 28 | 12.96 | 606001080 |
| WRFAF090 | 9mm | 9.9 | 19.8 | 3.7 | 32 | 18.94 | 606001090 |
| WRFAF100 | 10mm | 10.9 | 21.8 | 4.1 | 35 | 24.09 | 606001100 |
| WRFAF110 | 11mm | 12.1 | 24.2 | 4.5 | 39 | 35.35 | 606001110 |
| WRFAF120 | 12mm | 13.2 | 26.4 | 4.9 | 42 | 44.18 | 606001120 |
| WRFAF130 | 13mm | 14.2 | 28.4 | 5.4 | 46 | 59.86 | 606001130 |
| WRFAF140 | 14mm | 15.3 | 30.6 | 5.8 | 49 | 73.5 | 606001140 |
| WRFAF160 | 16mm | 17.5 | 35.0 | 6.7 | 56 | 111 | 606001160 |
| WRFAF180 | 18mm | 19.6 | 39.2 | 7.6 | 63 | 156 | 606001180 |
| WRFAF200 | 20mm | 21.7 | 43.4 | 8.4 | 70 | 217 | 606001200 |
| WRFAF220 | 22mm | 24.3 | 48.6 | 9.2 | 77 | 292 | 606001220 |
| WRFAF240 | 24mm | 26.4 | 52.8 | 10.0 | 84 | 376 | 606001240 |
| WRFAF260 | 26mm | 28.5 | 57.0 | 10.9 | 91 | 481 | 606001260 |
| WRFAF280 | 28mm | 31.0 | 62.0 | 11.7 | 98 | 603 | 606001280 |
| WRFAF300 | 30mm | 33.1 | 66.2 | 12.5 | 105 | 739 | 606001300 |
| WRFAF320 | 32mm | 35.2 | 70.4 | 13.4 | 112 | 897 | 606001320 |
| WRFAF340 | 34mm | 37.8 | 75.6 | 14.2 | 119 | 1077 | 606001340 |
| WRFAF360 | 36mm | 39.8 | 79.6 | 15.0 | 126 | 1275 | 606001360 |
| WRFAF380 | 38mm | 41.9 | 83.8 | 15.8 | 133 | 1503 | 606001380 |
| WRFAF400 | 40mm | 44.0 | 88.0 | 16.6 | 140 | 1734 | 606001400 |
| WRFAF420 | 42mm | 46.2 | 92.4 | 17.5 | 147 | 2024 | 606001420 |
| WRFAF440 | 44mm | 48.4 | 96.8 | 18.3 | 154 | 2314 | 606001440 |
| WRFAF460 | 46mm | 50.6 | 101.2 | 19.2 | 161 | 2662 | 606001460 |
| WRFAF480 | 48mm | 52.8 | 105.6 | 20.0 | 168 | 3010 | 606001480 |
| WRFAF500 | 50mm | 55.0 | 110.0 | 20.8 | 175 | 3412 | 606001500 |
| WRFAF520 | 52mm | 57.2 | 114.4 | 21.6 | 182 | 3813 | 606001520 |
| WRFAF540 | 54mm | 59.4 | 118.8 | 22.5 | 189 | 4293 | 606001540 |
| WRFAF560 | 56mm | 61.6 | 123.2 | 23.3 | 196 | 4772 | 606001560 |
| WRFAF580 | 58mm | 63.8 | 127.6 | 24.2 | 203 | 5326 | 606001580 |
| WRFAF600 | 60mm | 66.0 | 132.0 | 25.0 | 210 | 5880 | 606001600 |
