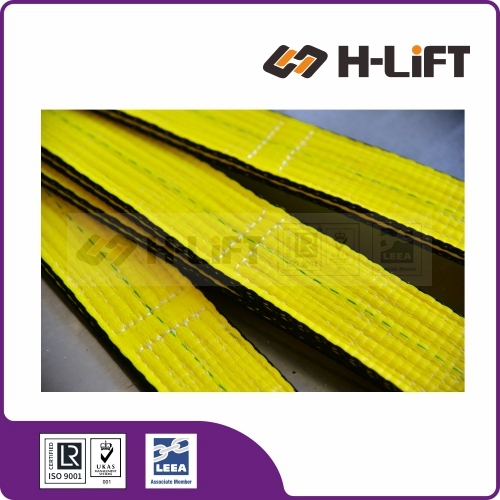

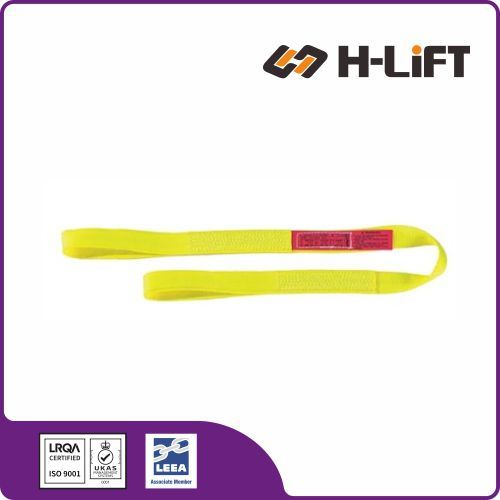

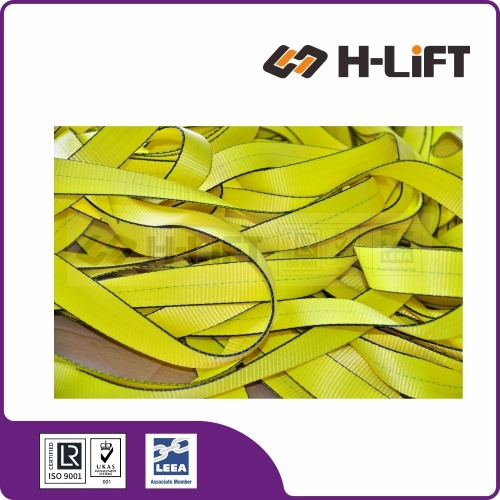

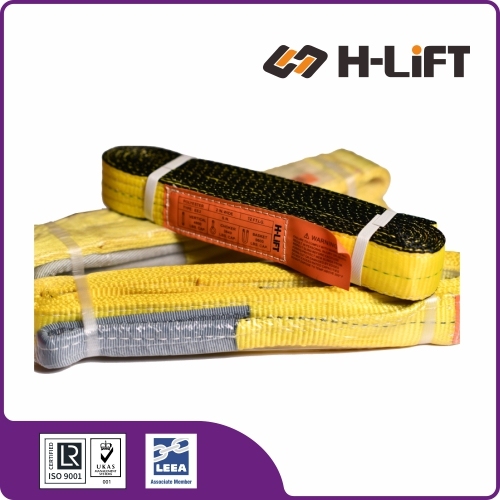

The Double Ply Eye & Eye Synthetic Web Sling (Class 7) is a strong and durable lifting sling made from two layers of synthetic webbing with flat loop eyes at both ends.
| Grade | Webbing Strength | Durability | Recommended For |
|---|---|---|---|
| Class 7 Current Item |
9,800 lbs / inch (Heavy Duty) |
High | Heavy construction, frequent use, abrasive loads. |
| Class 5 Standard |
6,800 lbs / inch (Standard Duty) |
Standard | Everyday lifting, general manufacturing. |
The rated capacities are based on stuffer weave construction webbing with a minimum certified tensile strength of 9,800 pounds per inch of webbing width.
| Item No. | Width (inch) | Working Load Limit (lbs) - 5:1 Safety Factor | Product Code | ||
|---|---|---|---|---|---|
 Vertical |
 Choker |
 Vertical Basket |
|||
| WS04-2-9010 | 1 | 3,100 | 2,480 | 6,200 | 303129010 |
| WS04-2-9015 | 1-1/2 | 4,700 | 3,760 | 9,400 | 303129015 |
| WS04-2-9017 | 1-3/4 | 5,400 | 4,320 | 10,800 | 303129017 |
| WS04-2-9020 | 2 | 6,200 | 4,960 | 12,400 | 303129020 |
| WS04-2-9030 | 3 | 8,800 | 7,040 | 17,600 | 303129030 |
| WS04-2-9040 | 4 | 11,000 | 8,800 | 22,000 | 303129040 |
| WS04-2-9050 | 5 | 13,700 | 10,960 | 27,400 | 303129050 |
| WS04-2-9060 | 6 | 16,500 | 13,200 | 33,000 | 303129060 |
| WS04-2-9080 | 8 | 22,700 | 18,160 | 45,400 | 303129080 |
| WS04-2-9100 | 10 | 28,400 | 22,720 | 56,800 | 303129100 |
| WS04-2-9120 | 12 | 34,100 | 27,280 | 68,200 | 303129120 |
Triangle & Choker Fitting: Constructed with a standard triangle fitting on one end and a slotted triangle choker fitting on the other. This design allows it to be used in Vertical, Basket, or Choker hitches.
Triangle & Triangle Fitting: Constructed with a standard triangle fitting on both ends. This type is suitable for Vertical or Basket hitches only (cannot be used in a choker hitch).
Flat Eye-and-Eye: Made with a flat loop eye on each end, with the loop opening on the same plane as the sling body. Ideal for use in basket hitches, vertical hitches, or choker hitches.
Twisted Eye: Similar to Type III, but the loop eyes are twisted to form an opening at a right angle to the sling body. This design provides a better choke hitch fit on the crane hook.
Endless Sling (Grommet): A continuous loop formed by joining the ends of the webbing together. It is versatile and the wear points can be adjusted by rotating the sling.
Reversed Eye (Return Eye): Formed by using multiple widths of webbing held edge-to-edge. Wear pads are attached to form loop eyes at right angles to the sling body. Extremely durable and strong.
The length of a web sling is measured from the bearing point of one eye to the bearing point of the other eye (pull to pull).
