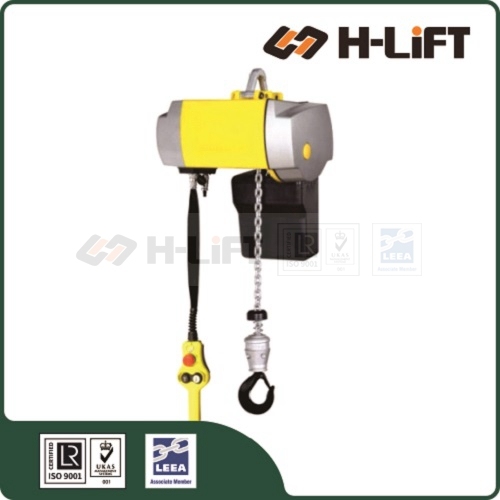

The H-Lift Electric Chain Hoist (EH-E type) is a highly durable and efficient mechanical lifting device engineered specifically for the safe vertical raising and lowering of heavy loads in diverse industrial and commercial environments.
Electric chain hoists are essential for industrial production lines and machine shops requiring frequent and fast lifting. Using an electric motor and controller, the EHE type ensures true vertical lift, keeping loads centered during operation for maximum stability.

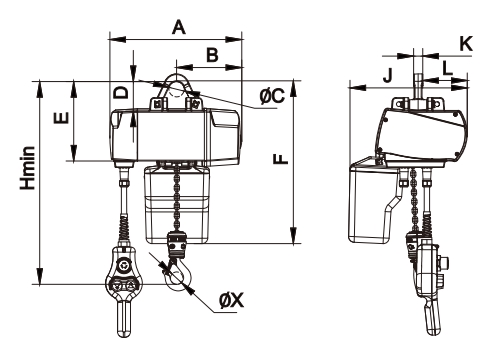

*Refer to the diagram above to identify dimensions A, B, C, D, E, F, Hmin (Headroom), J, L, K, and X.
| Item No. | Capacity | Std Lift | Lifting Speed | Hoist Motor | Rating | Chain Size | Falls | Group | Proof Load | Dimensions (mm) | N.W. | Product Code | ||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| (kg) | (m) | (m/min) | (kw) | (%) | (mm) | (kN) | A | B | C | D | E | F | Hmin | J | L | K | X | (kg) | ||||
| EHE0125S | 125 | 3 | 20 / 5 | 0.7 / 0.17 | 26.6 / 13.4 | 4 x 12 | 1 | M5 | 1.53 | 345 | 170 | 40 | 77 | 208 | 425 | 357 | 306 | 116 | 24 | 24 | 22 | 210500125 |
| EHE0250S | 250 | 3 | 8 / 2 | 0.7 / 0.17 | 26.6 / 13.4 | 4 x 12 | 1 | M5 | 3.06 | 345 | 170 | 40 | 77 | 208 | 425 | 357 | 306 | 116 | 24 | 24 | 22 | 210500250 |
| EHE0500S | 500 | 3 | 6 / 1.5 | 0.7 / 0.17 | 26.6 / 13.4 | 5 x 15 | 1 | M5 | 6.13 | 345 | 170 | 40 | 77 | 208 | 425 | 388 | 306 | 116 | 24 | 27 | 22.6 | 210500500 |
| EHE1000D | 1000 | 3 | 3 / 0.75 | 0.7 / 0.17 | 20 / 10 | 5 x 15 | 2 | M4 | 12.25 | 345 | 170 | 40 | 77 | 208 | 425 | 395 | 306 | 116 | 24 | 29 | 26.5 | 210501002 |
| EHE1000S | 1000 | 3 | 8 / 2 | 1.9 / 0.45 | 26.6 / 13.4 | 7 x 21 | 1 | M5 | 12.25 | 458 | 204 | 40 | 77 | 263 | 528 | 519 | 427 | 177 | 24 | 45 | 47.5 | 210501001 |
| EHE2000D | 2000 | 3 | 4 / 1 | 1.9 / 0.45 | 26.6 / 13.4 | 7 x 21 | 2 | M5 | 24.5 | 458 | 204 | 40 | 77 | 263 | 528 | 544 | 427 | 177 | 24 | 45 | 52.6 | 210502000 |
An electric chain hoist is a mechanical lifting device used to raise and lower heavy loads vertically. Commonly found in industrial and commercial settings, these hoists facilitate the efficient movement of materials and equipment. Known for their durability and ease of operation, electric chain hoists are widely used in manufacturing, construction, and warehousing.
Electric chain hoists and motorized trolleys are powerful industrial tools designed to improve efficiency and reduce manual handling. However, improper use can lead to serious accidents. Operators must be trained and competent. The following guidelines are critical for the safe operation of H-Lift electric chain hoists (Series EHE, EHB, EHK, EHD, etc.).
NEVER lift, support, or transport people using this equipment.
NEVER lift loads over people.
NEVER exceed the Working Load Limit (WLL) marked on the hoist nameplate.
Before the start of each shift, the operator should perform a visual and functional inspection.
Ensure the power supply matches the voltage indicated on the nameplate (e.g., 380V 3-Phase). Incorrect voltage can destroy the motor.
Most H-Lift hoists (EHB/EHK/EHE) feature negative phase protection. If the hoist does not start, check if the power phases are wired correctly.
Standard units are IP54 (Indoor/General). Do not use standard hoists in rain, heavy dust, or explosive environments unless specifically rated (e.g., CH-EP Explosion Proof series).
Respect the Duty Rating (ED%). Operating continuously beyond the rated duty cycle will overheat the motor and trip the thermal protection.
Regular maintenance extends the life of your equipment and ensures safety.
