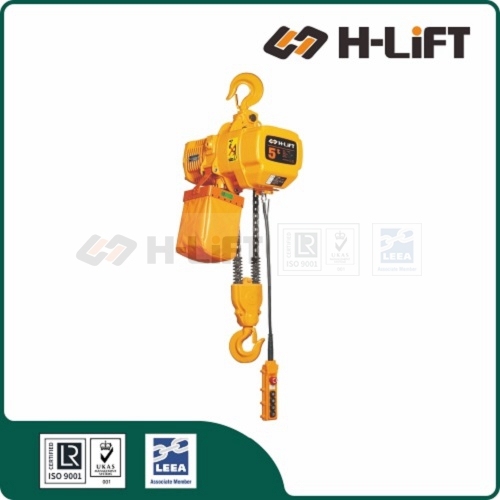

The H-Lift Electric Chain Hoist (EH-K type) is a highly efficient and durable mechanical lifting device specifically engineered for the safe, vertical hoisting of heavy loads in demanding industrial and commercial environments.
The EHK Series Electric Chain Hoist is designed for vertical lifting and lowering of materials with precision. Unlike standard single-speed units, the EHK series is equipped with a dual-speed motor, providing a Fast speed for productivity and a Slow speed for precise load positioning.

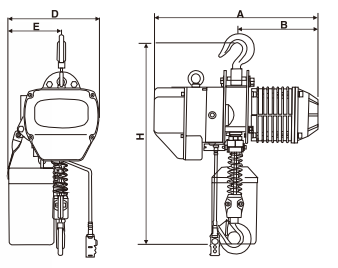

*Refer to the diagram above to identify dimensions A, B, D, E, and Hmin (Minimum Headroom).
| Item No. | Capacity | Work Group | Lift Speed | Hoist Motor | Load Chain | Falls | Proof Load | Hmin | Dimensions (mm) | N.W. | Product Code | |||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| (t) | (m/min) | (kw) | (mm) | (kN) | (mm) | A | B | D | E | (kg) | ||||
| EHK005S | 0.5 | 1Am/M4 | 7.2 / 2.4 | 1.1 / 0.37 | 6.3 | 1 | 6.13 | 530 | 460 | 230 | 288 | 165 | 39 | 210300500 |
| EHK010S | 1 | 1Am/M4 | 6.8 / 2.3 | 1.5 / 0.5 | 7.1 | 1 | 12.25 | 650 | 520 | 260 | 300 | 176 | 51 | 210301001 |
| EHK010D | 1 | 1Am/M4 | 3.6 / 1.2 | 1.1 / 0.37 | 6.3 | 2 | 12.25 | 680 | 460 | 230 | 288 | 165 | 45 | 210301002 |
| EHK020S | 2 | 1Am/M4 | 6.6 / 2.2 | 3.0 / 1.0 | 10 | 1 | 24.5 | 800 | 615 | 295 | 430 | 265 | 98 | 210302001 |
| EHK020D | 2 | 1Am/M4 | 3.4 / 1.1 | 1.5 / 0.5 | 7.1 | 2 | 24.5 | 835 | 520 | 260 | 300 | 236 | 55 | 210302002 |
| EHK030S | 3 | 1Am/M4 | 5.6 / 1.9 | 3.0 / 1.0 | 11.2 | 1 | 36.75 | 845 | 615 | 295 | 430 | 320 | 103 | 210303001 |
| EHK030D | 3 | 1Am/M4 | 3.3 / 1.1 | 3.0 / 1.0 | 10 | 2 | 36.75 | 950 | 615 | 295 | 430 | 320 | 113 | 210303002 |
| EHK030T | 3 | 1Am/M4 | 2.2 / 0.7 | 1.5 / 0.5 | 7.1 | 3 | 36.75 | 950 | 520 | 260 | 350 | 205 | 72 | 210303003 |
| EHK050D | 5 | 1Am/M4 | 2.8 / 0.9 | 3.0 / 1.0 | 11.2 | 2 | 61.25 | 1030 | 615 | 295 | 430 | 325 | 125 | 210305000 |
| EHK075T | 7.5 | 1Am/M4 | 1.8 / 0.6 | 3.0 / 1.0 | 11.2 | 3 | 91.88 | 1380 | 615 | 295 | 505 | 320 | 180 | 210307500 |
An electric chain hoist is a mechanical lifting device used to raise and lower heavy loads vertically. Commonly found in industrial and commercial settings, these hoists facilitate the efficient movement of materials and equipment. Known for their durability and ease of operation, electric chain hoists are widely used in manufacturing, construction, and warehousing.
Electric chain hoists and motorized trolleys are powerful industrial tools designed to improve efficiency and reduce manual handling. However, improper use can lead to serious accidents. Operators must be trained and competent. The following guidelines are critical for the safe operation of H-Lift electric chain hoists (Series EHE, EHB, EHK, EHD, etc.).
NEVER lift, support, or transport people using this equipment.
NEVER lift loads over people.
NEVER exceed the Working Load Limit (WLL) marked on the hoist nameplate.
Before the start of each shift, the operator should perform a visual and functional inspection.
Ensure the power supply matches the voltage indicated on the nameplate (e.g., 380V 3-Phase). Incorrect voltage can destroy the motor.
Most H-Lift hoists (EHB/EHK/EHE) feature negative phase protection. If the hoist does not start, check if the power phases are wired correctly.
Standard units are IP54 (Indoor/General). Do not use standard hoists in rain, heavy dust, or explosive environments unless specifically rated (e.g., CH-EP Explosion Proof series).
Respect the Duty Rating (ED%). Operating continuously beyond the rated duty cycle will overheat the motor and trip the thermal protection.
Regular maintenance extends the life of your equipment and ensures safety.
