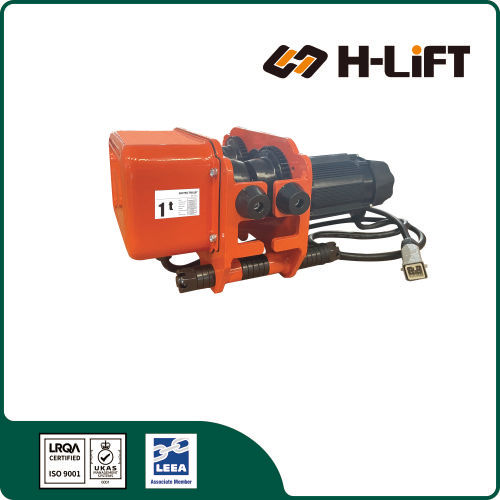

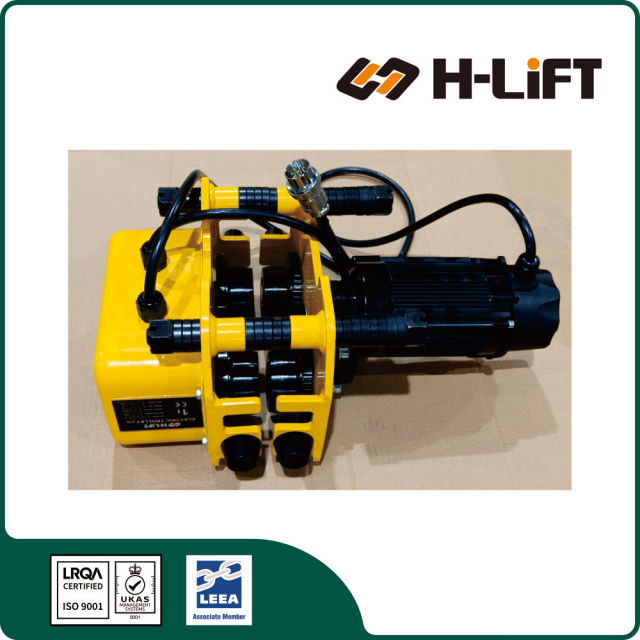

Electric Trolley ET-B type

Name: Electric Trolley ET-B type
Brand: H-Lift Industries Co Ltd
SKU: 2203
Availability: InStock
Rating: 5 (1 reviews)

No.2203

H-Lift Electric Trolley ET-B Type (1T-5T) is a motorized beam trolley designed for efficient horizontal load transport when paired with electric chain hoists.

Complete Lifting Solution: Optimized for integration with electric chain hoists for seamless vertical and horizontal movement.
Capacity Range: Available in 1T, 2T, 3T, and 5T models to suit various load requirements.
Wide Beam Compatibility: Adjustable for different I-beam and H-beam sizes commonly used in industrial settings.
Smooth Operation: Electric drive provides precise control and increased productivity for frequent travel applications.

Technical Data
Electric Trolley

Wired Control: Includes an ergonomic pendant controller for precise operation.

Versatile Travel: Engineered to negotiate curved tracks (See Min. Radius in specs).

Product Features

Electric Powered Travel: Provides smooth, effortless horizontal movement for electric chain hoists, controlled via a wired pendant control.
Dual Speed Options: Available in Single Speed (11 m/min) for standard tasks or Dual Speed (20/5 m/min) for precision positioning and efficiency.
Universal Beam Fit: Easily adjustable via threaded spindles to fit a wide range of I-beam and H-beam flange widths (Standard and Extended ranges available).
Robust & Protected: Features a compact frame with motors protected to IP54 against dust and water spray, suitable for industrial environments.
Smooth Operation: Machined steel wheels with sealed ball bearings ensure smooth running and long service life.
Curved Track Capable: Designed to travel on both straight and curved beam tracks.
Wide Capacity Range: Available in Working Load Limits (WLL) from 1 Ton up to 5 Ton.

Best paired with our Electric Chain Hoists for a complete lifting solution.

Beam Trolley Selection Guide

Trolley Type	Drive Method	Travel Speed	Recommended Application
Push Trolley (PT Type) Manual	Manual Push	Operator Dependent	Light loads (< 2T), short distances, infrequent movement.
Geared Trolley (GT Type) Hand Chain	Geared Hand Chain	Slow & Precise	Heavier loads (> 2T), short distances, precise positioning required.
Motorized Trolley (ET-B) Electric	Electric Motor	Fast / Dual Speed	Long travel distances, high frequency use, integration with Electric Hoists.

Technical Specifications

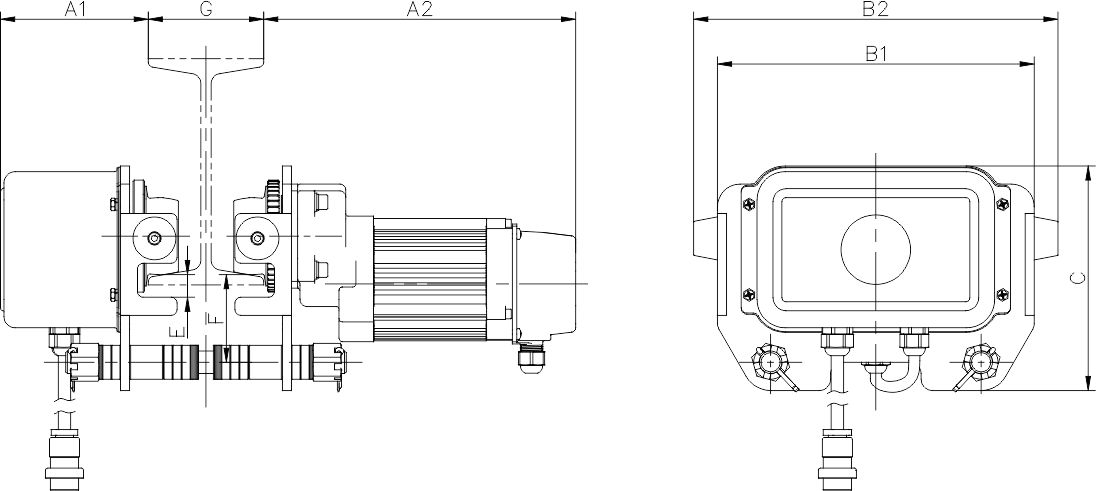

Item No.	Capacity	Travel Speed	Motor Power	Min. Curve Radius	Beam Range (mm)			Dimensions (mm)							N.W.	Product Code
Item No.	(t)	(m/min)	(kw)	(m)	Standard	Optional		A1	A2	B1	B2	C	E	F	(kg)	Product Code
ETB010	1	11 (Single)	0.15	1	74 - 140	141-200	201-310	131	276	280	322	199	20	77.5	22	220301000
ETB010	1	20/5 (Dual)	0.2/0.05	1	74 - 140	141-200	201-310	131	276	280	322	199	20	77.5	23	220301000
ETB020	2	11 (Single)	0.15	1.2	74 - 140	141-200	201-310	133	278	280	322	205	23.5	77.5	24.5	220302000
ETB020	2	20/5 (Dual)	0.2/0.05	1.2	74 - 140	141-200	201-310	133	278	280	322	205	23.5	77.5	25.5	220302000
ETB030	3	11 (Single)	0.3	1.6	100 - 152	153-200	201-310	140	307	346	388	255	25.5	77.5	46	220303000
ETB030	3	20/5 (Dual)	0.4/0.1	1.6	100 - 152	153-200	201-310	140	307	346	388	255	25.5	77.5	48	220303000
ETB050	5	11 (Single)	0.3	1.8	100 - 152	153-200	201-310	142	310	346	428	260	27.5	77.5	53.5	220305000
ETB050	5	20/5 (Dual)	0.4/0.1	1.8	100 - 152	153-200	201-310	142	310	346	428	260	27.5	77.5	55.5	220305000

An electric motorized trolley for an electric chain hoist is an essential piece of equipment used to facilitate the movement of heavy loads vertically and horizontally. This trolley is specifically designed to work in conjunction with an electric chain hoist, which is commonly used in industrial settings for lifting and lowering heavy objects.

Electric Motorized Trolley for Chain Hoist

Heavy-Duty Electric Trolley Unit

Key Features & Functions

Load Capacity Motorized trolleys are designed to handle different load capacities, ranging from a few hundred pounds to several tons. The capacity of the trolley should match or exceed the capacity of the electric chain hoist it is paired with.

Electric Drive These trolleys are equipped with an electric motor that provides horizontal movement along a beam or track. The electric drive system allows for precise control when positioning the load.

Control System Motorized trolleys typically come with control systems that allow operators to move the hoisted load forward, backward, left, and right. They may have pendant controls or remote controls for ease of operation.

Safety Features Safety is a critical consideration. Motorized trolleys often feature safety mechanisms such as limit switches to prevent over-travel, emergency stop buttons, and overload protection.

Beam Compatibility Designed to fit specific types of beams or tracks, such as I-beams or overhead crane tracks. It's important to ensure compatibility with the existing infrastructure.

Speed and Precision The trolley's electric motor allows for variable speed control, enabling precise positioning of the load. This is especially important when working with delicate or sensitive materials.

Versatility Motorized trolleys can be used in various industrial applications, including manufacturing, construction, warehouses, and maintenance facilities.

Mounting Options Depending on the design, motorized trolleys can be mounted on the top of the beam (top-running trolley) or suspended from the bottom of the beam (under-running trolley).

Selection & Safety Guide

When selecting a motorized trolley for an electric chain hoist, it's important to consider the following factors:

Load Capacity requirements
Type of beam or track in your facility
Required safety features
Specific requirements of your application

Note: Proper training and adherence to safety guidelines are crucial when operating these trolleys to prevent accidents and ensure the safe handling of heavy loads.
