Home > Products > All Collections > Cargo Securing & Lashing > Ratchet Straps & Tie Downs > Ratchet Straps EN 12195-2 > Single Part Web Lashing/Endless type Cam Buckle Strap

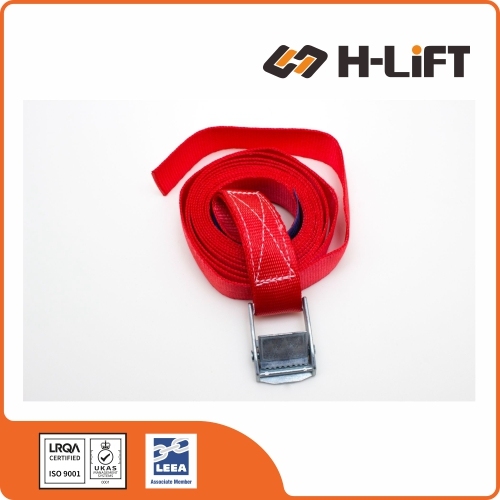

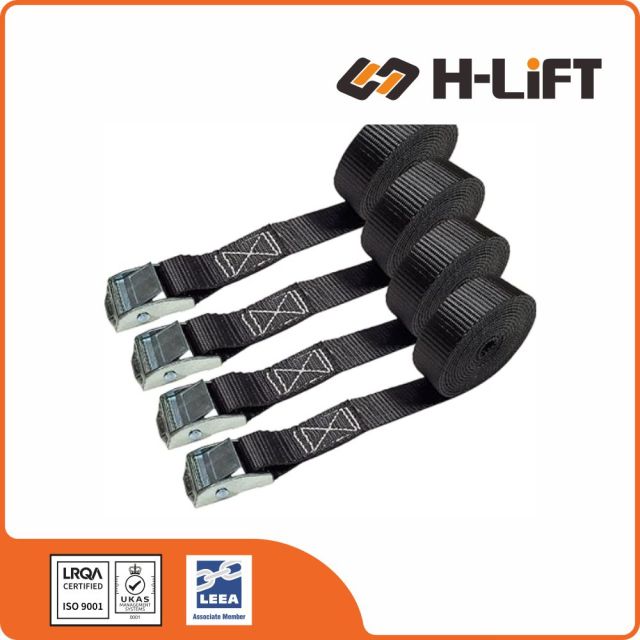

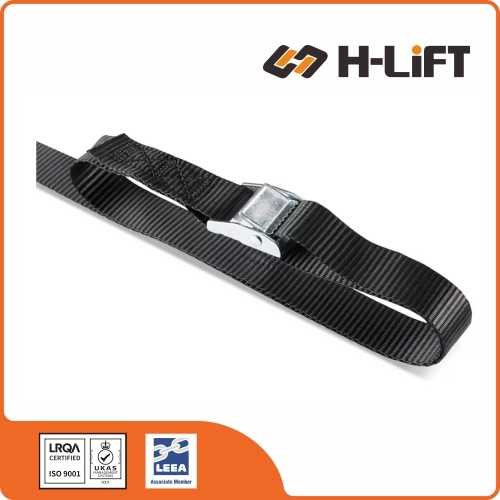

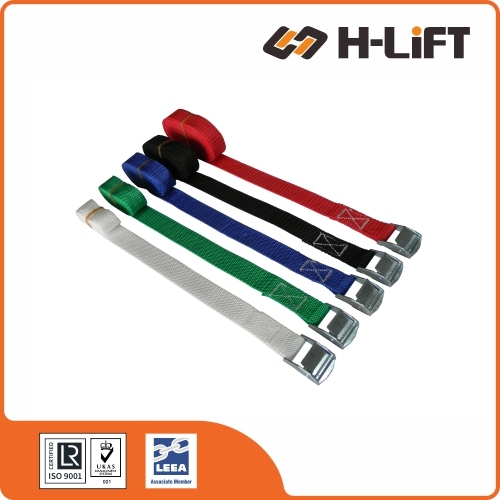

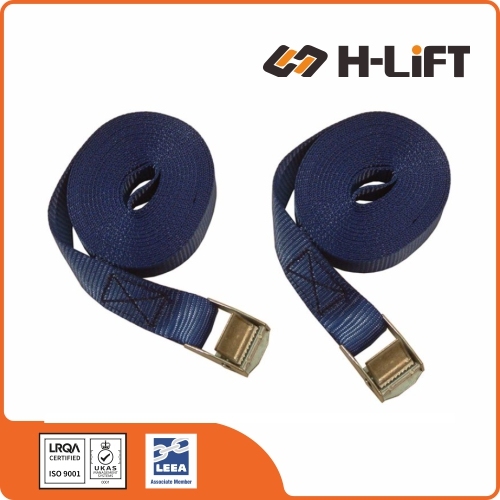

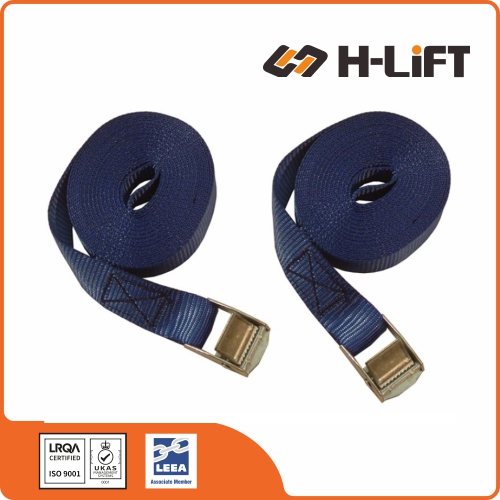

Endless type Cam Buckle Strap

Name: Endless type Cam Buckle Strap
Brand: H-Lift Industries Co Ltd
SKU: 4011025
Availability: InStock
Rating: 5 (1 reviews)

No.4011025

The Endless Type Cambuckle Strap, also known as a Single Part Web Lashing, is a highly versatile, one-piece cargo restraint system designed for bundling items together quickly and safely without the need for anchor points or hooks.

Continuous Loop Design: Formed as a single strap with no end fittings, allowing the user to wrap the webbing completely around the load and feed it back through the buckle to secure the cargo.
Controlled Tensioning: Features a pull-to-tighten cam buckle mechanism that gives the user direct control over the tension applied, preventing the over-tightening and potential damage often caused by ratchets.
Light to Medium Duty: Available in 25mm width configurations with varying Minimum Breaking Strengths (MBS) ranging from 250 kg to 500 kg, making it ideal for lighter bundling and securing tasks.
Multi-Purpose Utility: Highly effective for securing cargo on pallets, bundling timber or crates, or serving as a general-purpose tie-down for everyday use around the home, shop, garage, or farm.

Technical Data
Overview of Endless Cam Buckle Straps

Endless Cam Buckle Strap - No Hooks / Loop Type

Scratch-Free Lashing for Delicate Loads & Roof Racks

High Tenacity Polyester Endless Loop Design Scratch-Free Cam Buckle

Product Features

Scratch-Free Security: The "Endless" design eliminates metal hooks entirely. The strap simply wraps around the load and roof bars and feeds back into the buckle. This guarantees zero scratches on your vehicle's paintwork or roof rails.
Gentle on Cargo (Anti-Crush): Unlike ratchet straps that can exert crushing force, the Cam Buckle is tensioned by hand. This makes it the safest option for fragile loads like fiberglass kayaks, surfboards, carbon fiber bikes, and luggage.
Fast "Press-and-Pull": Operation is instant. Wrap the strap, thread the end, and pull tight. To release, simply press the thumb lever. Ideal for quick loading and unloading.
Versatile Bundling: Perfect for organizing loose items in the garage or warehouse, such as bundling hoses, extension cords, timber offcuts, or keeping drawers closed during a move.
Non-Slip Grip: The cam mechanism features aggressive teeth that grip the webbing firmly, ensuring the loop stays tight even under vibration.
Durable Webbing: Made from 25mm high-tenacity polyester webbing that resists UV degradation and water absorption.

Endless Strap Guide: Cam Buckle vs. Ratchet

Type	Tension Force	Best For
Endless Cam Buckle (This Product)	Hand Tight	Fragile / Roof Racks. Kayaks, surfboards, light bundling. Fast to use, impossible to overtighten and damage gear.
Endless Ratchet (Heavy Duty)	High Tension	Heavy Bundling. Bundling timber, steel pipes, or heavy pallet loads. Provides maximum tightness for secure holding.

Technical Specifications

Item No.	Width / Length	Tensioning Device	Capacity		Product Code
Item No.	Width / Length	Tensioning Device	Encircled (daN)	MBS(kg)	Product Code
ETD25025	25mm / 5m	Cambuckle	125	250	401102501
ETD25030	25mm / 5m	Cambuckle	150	300	401102502
ETD25040	25mm / 5m	Cambuckle	200	400	401102503
ETD25050	25mm / 5m	Cambuckle	250	500	401102504

Endless cam buckle straps are versatile and practical tools for securing various types of cargo. Here’s an overview of their features, uses, and benefits:

Overview of Endless Cam Buckle Straps

Design and Functionality

Construction: Endless cam buckle straps are made from durable materials like polyester, designed as a continuous loop without hooks or end fittings. This one-piece design allows the strap to wrap around the load, feeding back through the cam buckle for tensioning.
Tightening Mechanism: Unlike ratchet straps, which can over-tighten and potentially damage cargo, cam buckle straps tighten by pulling the strap through the buckle. This method provides better control over the tension applied to the load

Specifications

Dimensions: Available in various lengths and widths, such as 25mm wide and lengths ranging from 2m to 6m or more.
Load Capacity: The lashing capacities can vary widely; for example, some models have a working load limit (WLL) of 125kg to 250kg depending on the specific strap design and material used

Applications

Cargo Securing: Ideal for securing items on pallets, trailers, or trucks. They are also useful in home, shop, or farm settings for general tying down purposes
Bundling: Effective for bundling materials together, such as timber or crates, ensuring they remain stable during transport

Advantages

Ease of Use: The simple design makes them easy to handle and store.
Versatility: Suitable for a wide range of applications, from transporting goods to securing items in various environments.
Safety: The cam buckle mechanism reduces the risk of over-tightening, protecting the integrity of the cargo being secured.

In summary, endless cam buckle straps are an efficient choice for load restraint needs due to their ease of use, versatility, and safety features. They are particularly beneficial in scenarios where quick adjustments are necessary without compromising cargo integrity.
