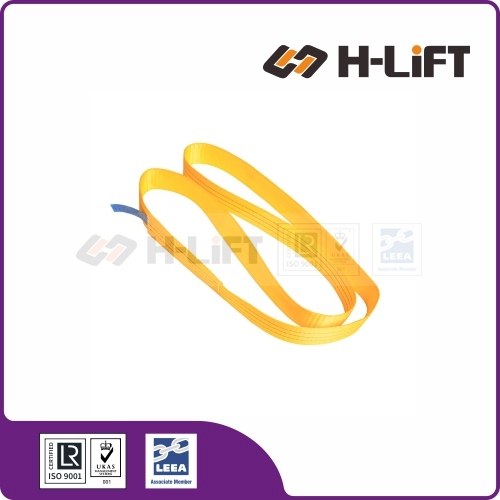

Endless Webbing Sling EN 1492-1

No.3041, 3042

The Endless Type Webbing Sling (EN 1492-1) is a cost-effective, versatile polyester lifting sling designed for continuous rotation, providing an infinite number of contact points to extend its working life.

  • EN 1492-1 Certified: Manufactured to strict European standards, ensuring high quality and a reliable 7:1 safety factor for lifting operations.
  • Infinite Contact Points: The endless loop design allows the sling to be rotated during use, spreading wear evenly and significantly increasing longevity.
  • Gentle on Loads: Constructed from high-strength polyester fabric that provides a broad, soft contact area to prevent damage to delicate or finished surfaces.
  • Versatile Configurations: Available in both Single Ply and Two Ply options, with color-coded capacities ranging from 1 tonne to 10 tonnes to suit frequently changing applications.

Technical Data

Product Features

  • Extended Lifespan The continuous loop design allows the user to rotate the sling, ensuring that the hook contact point changes with every lift. This distributes wear evenly and significantly extends service life.
  • Secure Grip The flat, flexible webbing conforms tightly to the load's shape, making it the ideal choice for Choker Hitches on cylindrical loads like pipes, tubes, and timber logs.
  • EN 1492-1 Compliance Manufactured strictly to EN 1492-1 standards with a 7:1 Safety Factor, ensuring reliability for industrial lifting in Europe and global markets.
  • Versatile Ply Options Available in Single Ply (for lighter loads and tight gaps) and Two Ply (for doubled capacity and durability).
  • Load Protection The wide, soft bearing surface protects delicate or finished surfaces from damage, scratching, or crushing better than wire rope or chain.
  • Easy Identification Fully colour-coded to international standards (e.g., Violet=1T, Green=2T) with black capacity stripes (1 stripe = 1 Tonne) for instant WLL recognition.
Compare Synthetic Sling Types
Type Shape Key Benefit Best Application
Endless Flat Sling
Current Item
Flat Webbing Loop Rotatable Wear Points Choker hitch, wide load contact, long service life.
Eye-Eye Flat Sling
Standard
Flat with Eyes Easy Hook Attachment Direct connection to crane hooks, general lifting.
Round Sling
Tubular
Soft Tube Loop Highest Flexibility Ultra-heavy loads, delicate surfaces, complex shapes.

Technical Specifications: Single Ply

Item No. WLL / Colour Working Load Limit (tonnes) Product Code
Straight Lift
M=1
Choked Lift
M=0.8
Basket Hitch (Angle β)
0-7° (M=2) 7-45° (M=1.4) 45-60° (M=1) Choked 45° (M=0.7) Choked 60° (M=0.5)
WS07-101 1T Violet 1.0 0.8 2.0 1.4 1.0 0.7 0.5 304103010
WS07-102 2T Green 2.0 1.6 4.0 2.8 2.0 1.4 1.0 304106020
WS07-103 3T Yellow 3.0 2.4 6.0 4.2 3.0 2.1 1.5 304109030
WS07-104 4T Grey 4.0 3.2 8.0 5.6 4.0 2.8 2.0 304112040
WS07-105 5T Red 5.0 4.0 10.0 7.0 5.0 3.5 2.5 304115050
WS07-106 6T Brown 6.0 4.8 12.0 8.4 6.0 4.2 3.0 304118060
WS07-108 8T Blue 8.0 6.4 16.0 11.2 8.0 5.6 4.0 304124080
WS07-110 10T Orange 10.0 8.0 20.0 14.0 10.0 7.0 5.0 304130010

Technical Specifications: Two Ply

Item No. WLL / Colour Working Load Limit (tonnes) Product Code
Straight Lift
M=1
Choked Lift
M=0.8
Basket Hitch (Angle β)
0-7° (M=2) 7-45° (M=1.4) 45-60° (M=1) Choked 45° (M=0.7) Choked 60° (M=0.5)
WS08-202 2T Green 2.0 1.6 4.0 2.8 2.0 1.4 1.0 304203020
WS08-203 3T Yellow 3.0 2.4 6.0 4.2 3.0 2.1 1.5 304205030
WS08-204 4T Grey 4.0 3.2 8.0 5.6 4.0 2.8 2.0 304206040
When ordering, please specify whether the length required is "Effective Working Length" (EWL) or "Circumference Length".

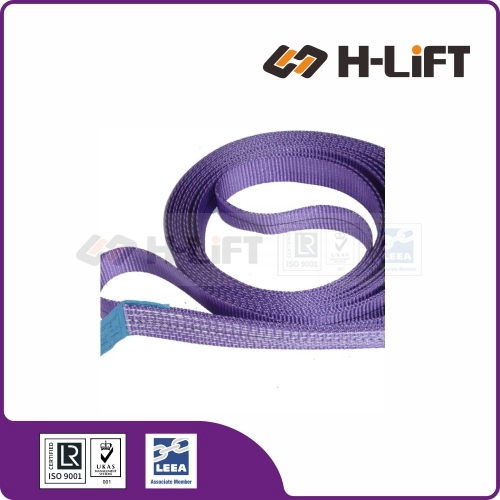

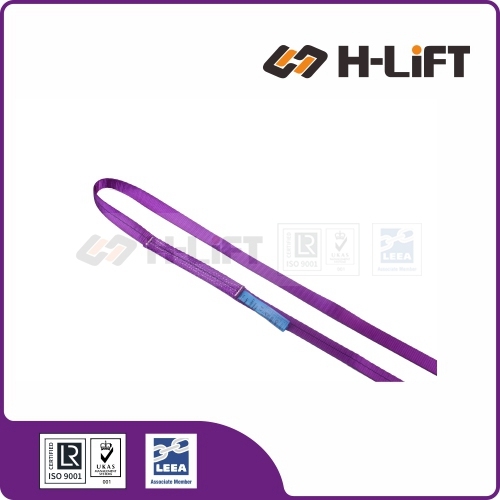

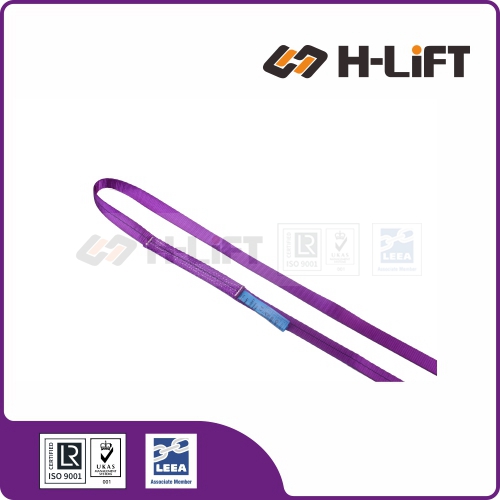

1T Endless Sling
1T Single Ply (Violet)

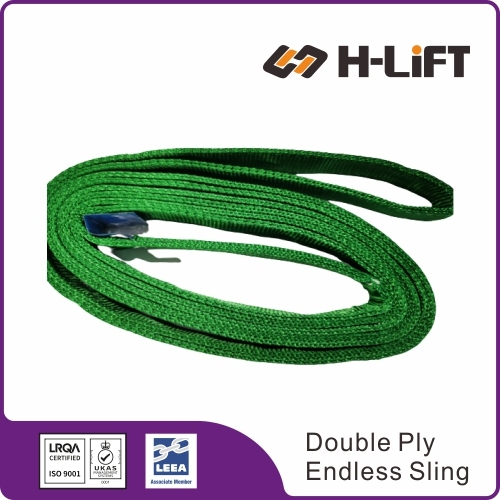

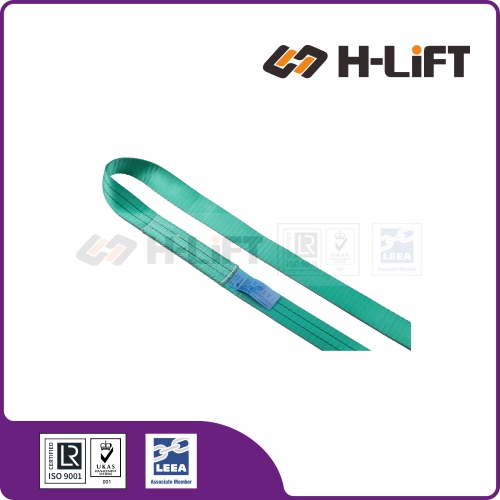

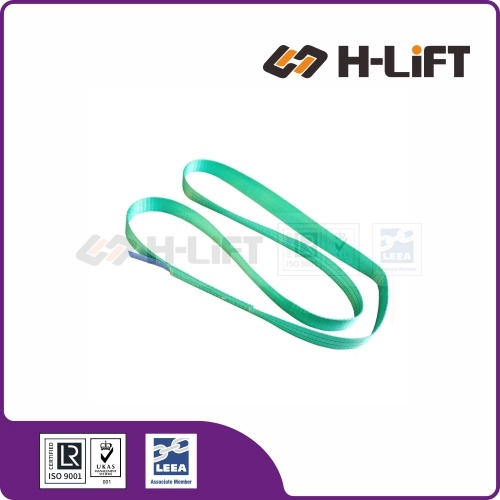

2T Endless Sling
2T Two Ply (Green)

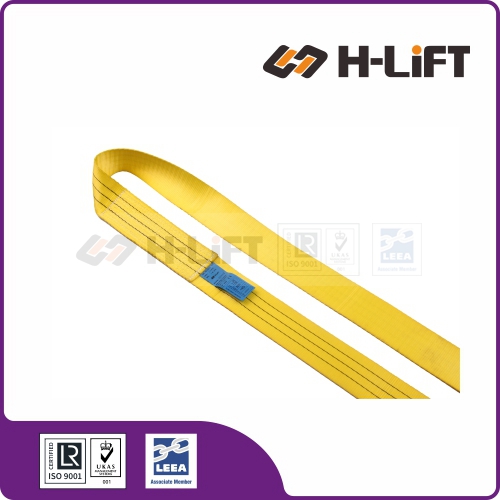

3T Endless Sling
3T Two Ply (Yellow)

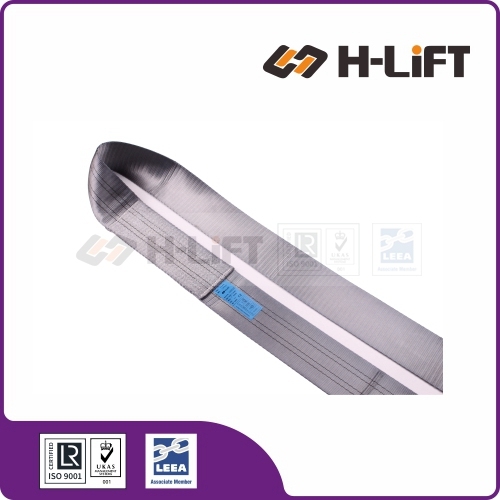

4T Endless Sling
4T Two Ply (Grey)
