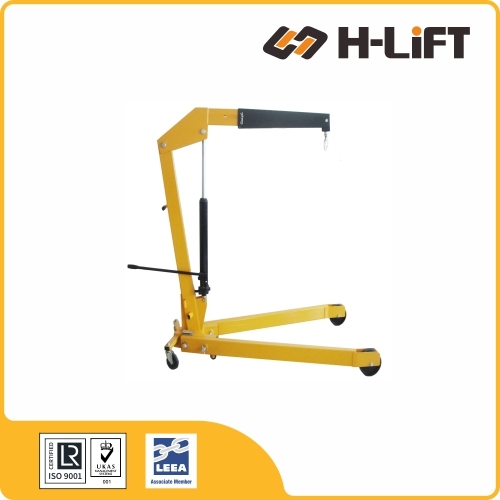

The H-Lift Engine Crane ECA Type is a mobile hydraulic hoist for lifting and removing heavy engines, transmissions, and components in automotive repair shops and workshops.
The ECA Type Engine Crane (Shop Crane/Cherry Picker) is an essential hydraulic hoist for automotive repair shops and warehouses. Equipped with an adjustable telescopic boom, heavy-duty swivel casters, and a forged swivel hook, it provides safe, smooth, and highly maneuverable lifting for engines and heavy industrial components.
Features three hook positions (P1/P2/P3). Extending the boom gives you a longer reach, while retracting it provides the maximum lifting capacity.
Equipped with a reliable hydraulic pump that allows for smooth, controlled lifting and lowering of heavy vehicle engines and parts without sudden drops.
Designed with an overload protection relief valve to prevent lifting beyond the rated capacity. Each unit is strictly 125% overload tested.
Mounted on heavy-duty swivel casters and built with a rugged steel frame. Makes it easy to roll and position the crane exactly where you need it.

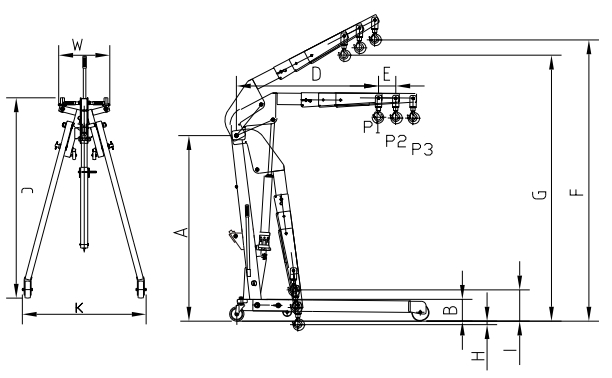

| Item No. | Capacity (P1/P2/P3) |
Dimensions (mm) | Weight (kg) |
Product Code | ||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| (kg) | A | B | C | D | E | F | G | H | I | W | K | |||
| ECA0500 | 500 / 425 / 350 | 1354 | 165 | 1582 | 897 | 102 | 2080 | 1920 | 130 | 330 | 170 | 960 | 75 | 816001005 |
| ECA1000 | 1000 / 800 / 700 | 1597 | 90 | 1749 | 1231 | 150 | 2450 | 2320 | / | 280 | 460 | 1100 | 115 | 816001010 |
| ECA2000 | 2000 / 1700 / 1500 | 1626 | 208 | 1911 | 1293 | 150 | 2700 | 2500 | / | 250 | 590 | 1170 | 165 | 816001020 |
