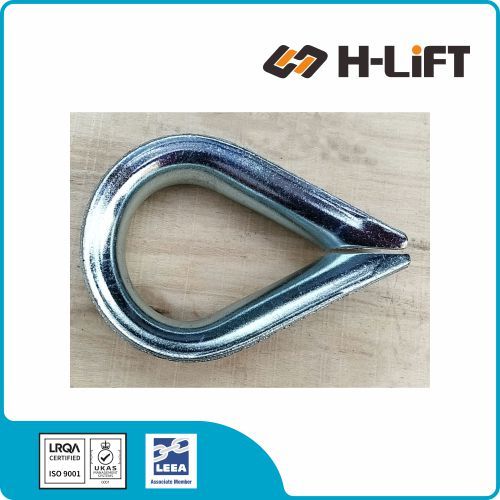

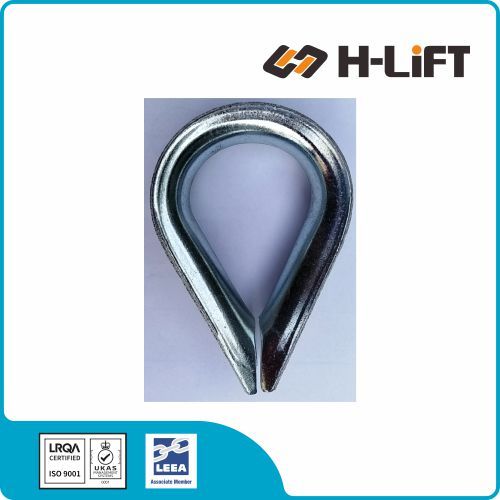

The H-Lift European Type Commercial Wire Rope Thimble is a lightweight, economical solution for protecting wire rope eyes in non-critical applications. Manufactured from galvanized steel with precision-formed construction, these thimbles are designed for architectural balustrades, fencing, and static tensioning, available in sizes from 3mm to 38mm wire rope diameter.

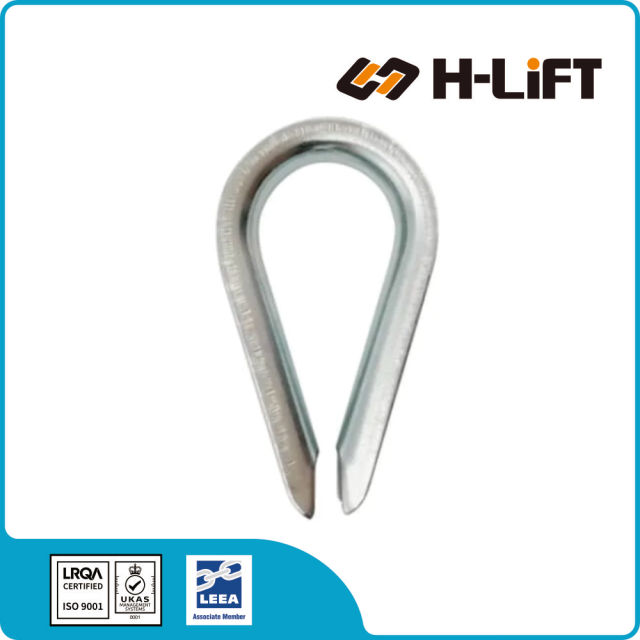

H-Lift European Commercial Type Thimbles offer a cost-effective solution for static rigging applications. Manufactured from durable mild steel with an electro-galvanized finish, these thimbles are designed to protect wire rope eyes in fencing, agriculture, and general non-critical securing tasks.
Ideal for static loads such as fencing, barrier cables, and agricultural rigging where certified lifting ratings are not required.
Electro-Galvanized finish provides resistance against rust and corrosion in indoor and mild outdoor environments.
Creates a smooth, rounded bearing surface inside the rope eye, preventing the cable from flattening or chafing against hardware.
Available in a comprehensive range of sizes from 3mm to 38mm to suit various small-to-medium diameter wire ropes.
Q: What is the difference between "Commercial" and "Heavy Duty" thimbles?
A: Commercial thimbles (like this European Type) are made from lighter gauge mild steel for static, non-critical loads. Heavy Duty thimbles (like DIN 6899B or US G-414) have thicker walls and are rated for dynamic loads.
Q: Can I use this thimble for overhead lifting?
A: No. This commercial thimble is recommended for light-duty, static applications only. For overhead lifting, use a thimble that meets specific lifting standards (e.g., DIN 6899B or FF-T-276b).

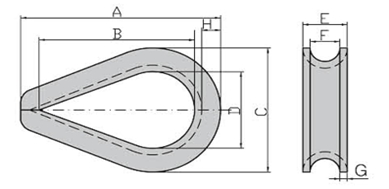

| Item No. | Size (mm) | Dimensions (mm) | Weight | Product Code | |||||||
|---|---|---|---|---|---|---|---|---|---|---|---|
| A | B | C | D | E | F | G | H | kg | |||
| WRTCT003 | 3 | 33 | 19 | 19 | 13 | 6.5 | 4.1 | 1.2 | 3.8 | 0.007 | 604012003 |
| WRTCT004 | 4 | 35 | 20 | 23 | 14 | 8 | 5 | 1.5 | 4 | 0.013 | 604012004 |
| WRTCT005 | 5 | 37 | 22 | 25 | 15 | 9 | 6 | 1.5 | 4.5 | 0.014 | 604012005 |
| WRTCT006 | 6 | 40 | 24 | 29 | 17 | 11 | 7 | 2 | 4.5 | 0.023 | 604012006 |
| WRTCT008 | 8 | 59 | 37 | 42 | 25 | 13 | 9 | 2 | 7 | 0.045 | 604012008 |
| WRTCT010 | 10 | 70 | 45 | 51 | 33 | 17 | 11 | 3 | 7 | 0.089 | 604012010 |
| WRTCT012 | 12 | 75 | 48 | 55 | 35 | 19 | 13 | 3 | 8 | 0.108 | 604012012 |
| WRTCT014 | 14 | 75 | 53 | 55 | 37 | 20 | 14 | 3 | 8 | 0.11 | 604012014 |
| WRTCT016 | 16 | 95 | 59 | 63 | 40 | 23 | 17 | 3 | 9.5 | 0.16 | 604012016 |
| WRTCT018 | 18 | 95 | 59 | 63 | 40 | 27 | 19 | 4 | 10 | 0.23 | 604012018 |
| WRTCT020 | 20 | 100 | 60 | 66 | 41 | 29 | 21 | 4 | 10 | 0.23 | 604012020 |
| WRTCT022 | 22 | 110 | 71 | 74 | 47 | 31 | 23 | 4 | 11 | 0.30 | 604012022 |
| WRTCT024 | 24 | 135 | 83 | 92 | 59 | 35 | 25 | 5 | 13.5 | 0.53 | 604012024 |
| WRTCT026 | 26 | 145 | 95 | 98 | 65 | 37 | 27 | 5 | 13.5 | 0.60 | 604012026 |
| WRTCT028 | 28 | 155 | 100 | 117 | 72 | 42 | 30 | 6 | 18.5 | 0.89 | 604012028 |
| WRTCT030 | 30 | 165 | 105 | 120 | 79 | 43 | 31 | 6 | 19 | 0.98 | 604012030 |
| WRTCT032 | 32 | 175 | 115 | 134 | 82 | 46 | 34 | 6 | 20 | 1.20 | 604012032 |
| WRTCT034 | 34 | 190 | 130 | 139 | 89 | 47 | 35 | 6 | 21 | 1.30 | 604012034 |
| WRTCT038 | 38 | 220 | 155 | 160 | 104 | 55 | 39 | 6 | 22 | 2.20 | 604012038 |
This product is a Commercial Grade component. It is intended for static use only (e.g., guy wires, fencing, landscaping). Do not use for lifting, towing, or critical safety applications. For lifting, please choose our DIN 6899B or US Type Heavy Duty thimbles.
Wire rope thimbles are essential rigging fittings used to protect the eye of a wire rope from wear and deformation. While both European and US Type thimbles serve this primary function, they differ significantly in design, material specifications, and load capacities. Understanding these differences is crucial for selecting the right hardware for your application.
| Feature | European Type (Commercial / DIN) | US Type (G411 / G414) |
|---|---|---|
| Shape | Rounded, open design | Angular, tear-drop shape |
| Duty Rating | Light Duty / Static Loads | Standard (G411) & Heavy Duty (G414) |
| Material Wall | Thinner gauge steel | Thick gauge (Heavy Duty versions) |
| Primary Use | Fencing, static suspension, light marine | Lifting, towing, heavy industrial rigging |
| Lifting Rated? | Generally No | Yes (G414 Heavy Duty) |
Typically features a more rounded shape with a smooth interior. This design helps in distributing the load evenly for static applications and reduces wear on the wire rope. The groove width is generally recommended to be at least 1mm larger than the rope diameter to prevent lateral abrasion.
Often features a more angular, tear-drop design which provides superior load distribution under tension. Heavy-duty versions (G414) have extended protective material around the edges (thicker walls) and a deeper groove, enhancing their resistance to deformation under dynamic loads.
Commonly made from mild steel or stainless steel (AISI 304 or AISI 316) and often electro-galvanized. They are designed for a balance of cost-effectiveness and performance, suitable for mild environments.
Manufactured from Carbon Steel (Hot Dip Galvanized) or Stainless Steel (AISI 316). The G411 type is known as standard duty, while G414 is Extra Heavy Duty, featuring a Hot Dip Galvanized coating that offers superior long-term corrosion resistance.
Generally used in lighter applications where static loads are common (e.g., architectural rigging, barrier cables). They are not typically rated for overhead lifting operations but are effective for securing loops in general environments.
Versatile for lifting, towing, and dynamic loading. The G414 Heavy Duty types are specifically engineered to handle high stress, shock loads, and frequent connections, making them the standard for industrial lifting assemblies.
In summary, European thimbles tend to be more cost-effective solutions for lighter, static uses such as landscaping and fencing. In contrast, US thimbles (specifically the G414 pattern) offer a broader range of duty grades and structural strength, making them the required choice for overhead lifting and heavy-duty rigging needs.
