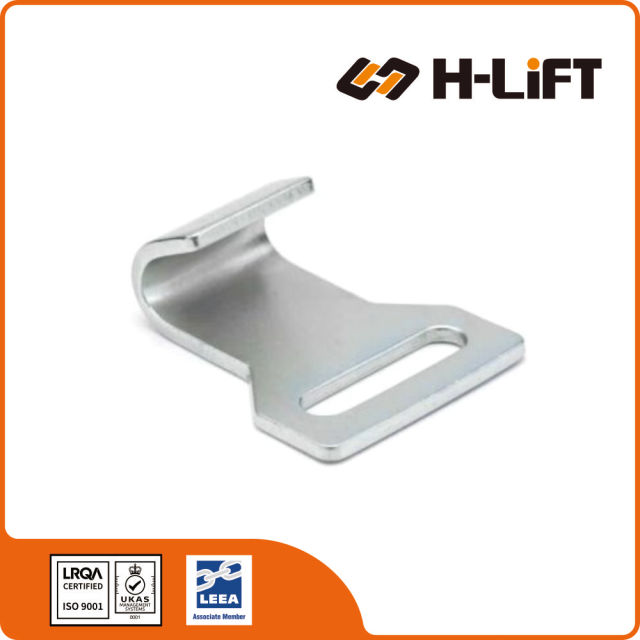

The Flat Hook and Load Hook represent highly robust, specialized end fittings engineered for heavy-duty cargo tie-down systems, providing secure and stable anchor connections primarily for commercial flatbed transport and heavy hauling.
Heavy-Duty Flat Hooks: Designed with a wide, flat profile and an internal defense guard to protect the webbing from wear, making them ideal for locking securely into the under-rail of flatbed trailers.
Specialized Load Hooks: Engineered for versatile anchoring, these robust hooks offer deep throat openings to easily engage with a variety of structural anchor points, D-rings, and heavy cargo edges.
Durable Construction: Manufactured from heat-treated carbon steel or forged alloy steel, and finished with a protective zinc plating or powder coating to deliver maximum resistance against rust, corrosion, and severe weather.
High-Capacity Compatibility: Perfectly suited to accommodate 2", 3", and 4" high-tension webbing straps, offering exceptional Breaking Strengths (BS) required for demanding commercial and industrial lashing applications.

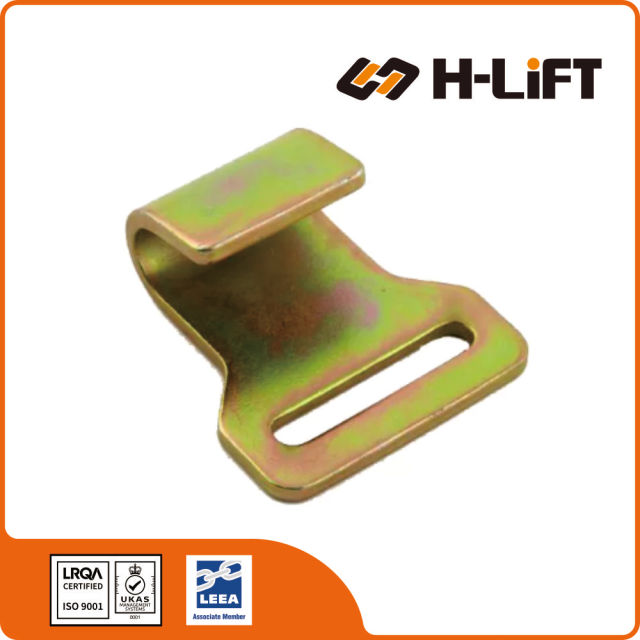

Heavy Duty Flat Hooks: Designed with a wide surface area to prevent webbing wear and securely latch onto flatbed trailer rails. Available in 2-inch, 3-inch, and 4-inch widths with breaking strengths up to 8,000kg (17,600 lbs).

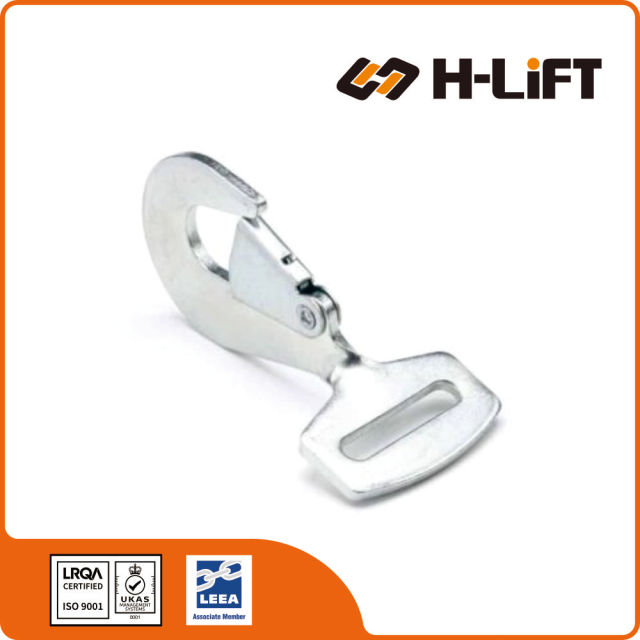

Twisted Snap Hooks: The twisted design allows the strap to remain flat while the hook attaches to a D-ring or anchor point, reducing twist and wear on the webbing assembly. Ideal for heavy transport and logistics.
Car Lashing Hooks: Compact, high-strength hooks (up to 2,000kg) specifically engineered for vehicle transport straps. These hooks often feature a safety latch to ensure cars remain secure on car carriers during transit.
Finish: Zinc plated for corrosion resistance and long service life in outdoor conditions.

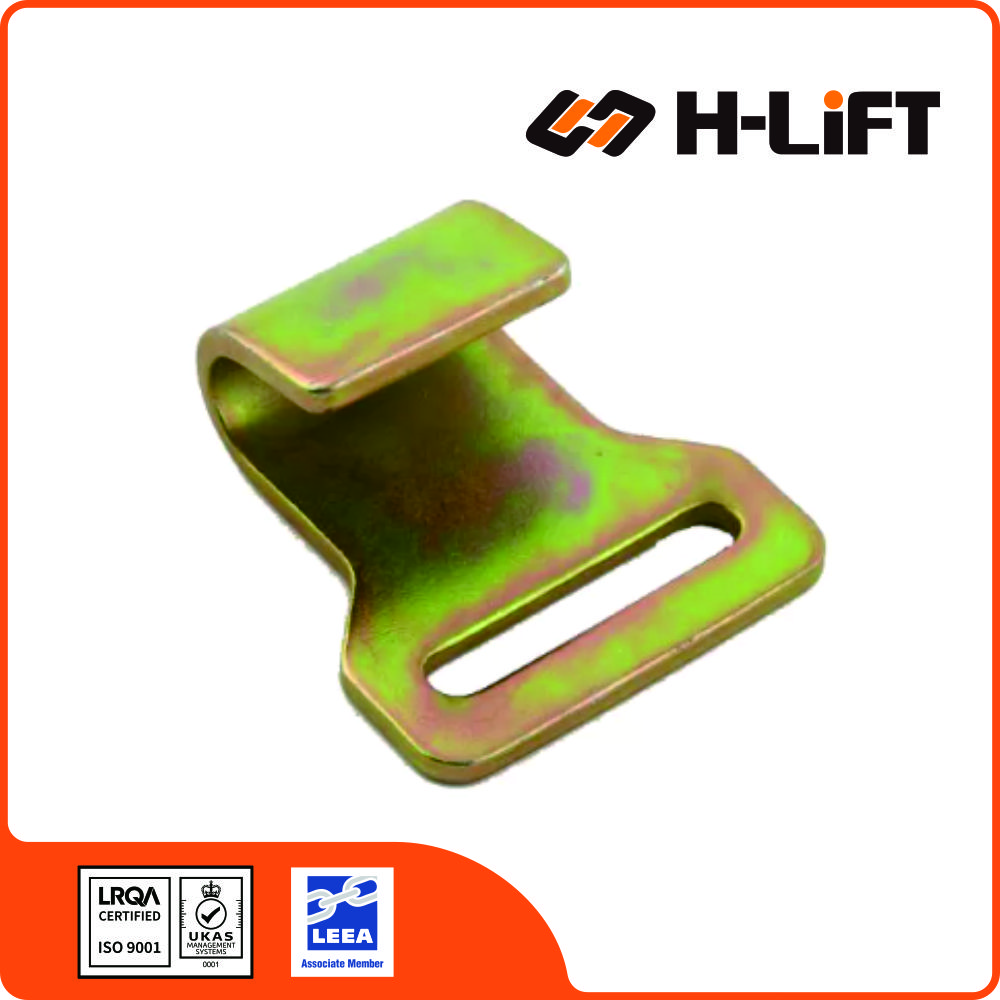

Flat Hooks

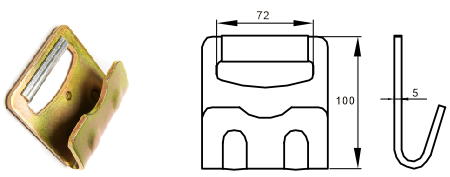

FH10000 (4")
BS: 8,000kg / 17,600lbs
Code: 408210029

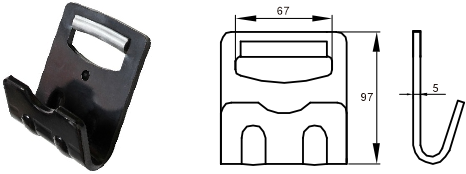

FH7500 (3")
BS: 8,000kg / 17,600lbs
Code: 408207530

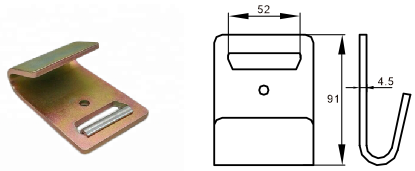

FH5001 (2")
BS: 4,535kg / 10,000lbs
Code: 408205031

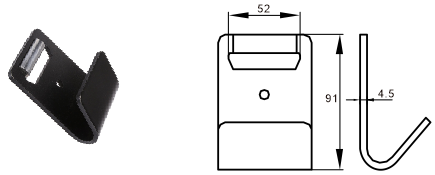

FH5002 (2")
BS: 4,535kg / 10,000lbs
Code: 408205032

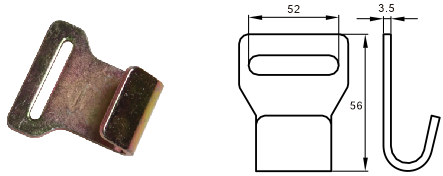

FH5003 (2")
BS: 3,000kg / 6,600lbs
Code: 408205033
Snap Hooks

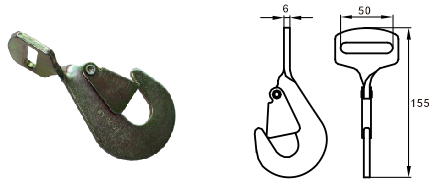

FHT5000 (2" Twist)
BS: 5,000kg / 11,000lbs
Code: 408205035

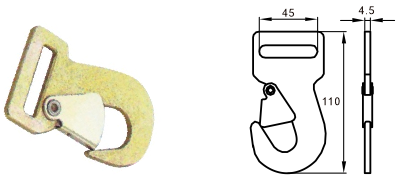

FHS5002 (2" Flat)
BS: 2,500kg / 5,500lbs
Code: 408205034

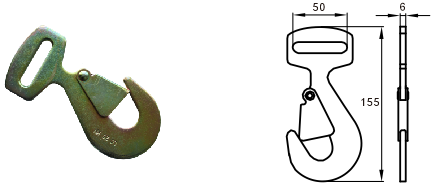

FHS5001 (2" Flat)
BS: 5,000kg / 11,000lbs
Code: 408205036
Car Lashing Hooks

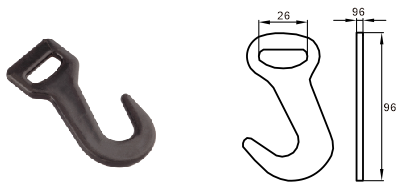

FHS2515 (1")
BS: 1,500kg / 3,300lbs
Code: 408202537

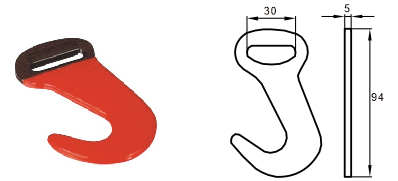

FHS2520 (1")
BS: 2,000kg / 4,400lbs
Code: 408202538
