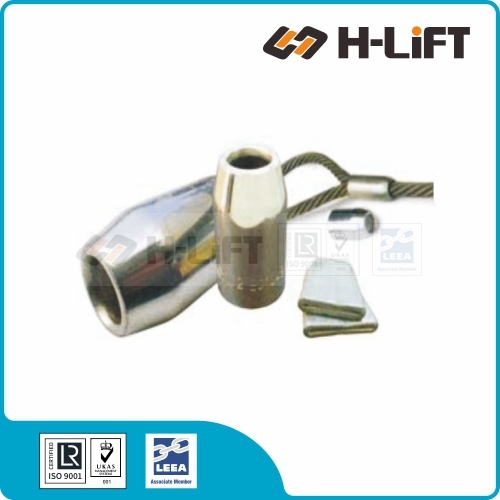

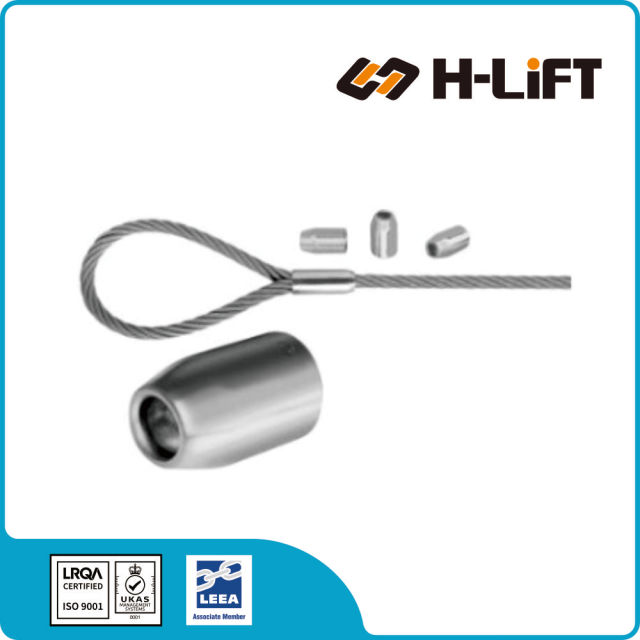

The H-Lift Flemish Eye Steel Sleeve (S-505) is a specialized swaging ferrule designed for creating high-efficiency "Flemish eye" terminations. Unlike standard swaging, this sleeve is used in conjunction with a specific splicing technique where the wire rope strands are unlaid and reformed, ensuring that the termination retains nearly 100% of the rope's breaking strength even if the sleeve is damaged. It is the industry standard for critical lifting slings and heavy-duty rigging applications.

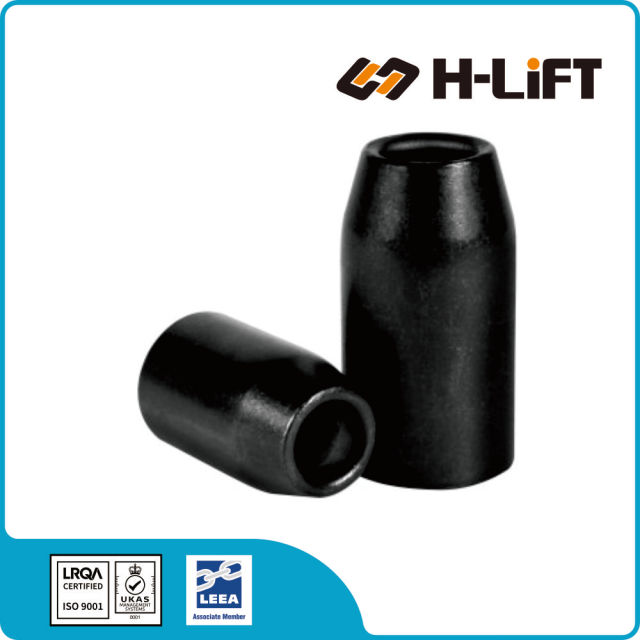

The Flemish Eye Steel Sleeve (S-505 Type) is a heavy-duty swaging sleeve designed specifically for securing Flemish Eye (Molly Hogan) splices. Made from special low carbon steel, it offers excellent cold-forming ductility and, when properly swaged, creates a termination capable of achieving up to 100% of the wire rope's breaking strength.
Designed for Flemish Eye (Molly Hogan) splices. This splicing method provides mechanical security even without the sleeve, but with the sleeve, it can achieve 100% of the rope's breaking strength.
Manufactured from special Low Carbon Steel. This material offers excellent ductility, allowing for cold swaging without cracking, even in low-temperature environments.
Superior resistance to abrasion and impact compared to aluminum sleeves. Ideal for rough environments like steel mills, foundries, and mining.
Available in a wide range of imperial sizes from 1/4" up to 6". Suitable for the largest industrial lifting slings and crane cables.
A=Length | B=Inner Width | D=Inside Diameter | E=Wall Thickness | C=After Swage Max Width| Item No. | Size | Dimensions (inch) | Max. After Swage | Weight | Product Code | ||||
|---|---|---|---|---|---|---|---|---|---|
| inch | A | B | D | E | C (inch) | kgs/100pcs | |||
| WRFFE0104 | 1/4" | 1 | 0.66 | 0.31 | 0.28 | 0.47 | 0.57 | 2.27 | 6060050104 |
| WRFFE0516 | 5/16" | 1.5 | 0.91 | 0.38 | 0.44 | 0.62 | 0.75 | 6.36 | 6060050516 |
| WRFFE0308 | 3/8" | 1.5 | 0.91 | 0.47 | 0.39 | 0.66 | 0.75 | 6.36 | 6060050308 |
| WRFFE0716 | 7/16" | 2 | 1.22 | 0.53 | 0.65 | 0.85 | 1.01 | 15 | 6060050716 |
| WRFFE0102 | 1/2" | 2 | 1.22 | 0.63 | 0.56 | 0.91 | 1.01 | 13 | 6060050102 |
| WRFFE0916 | 9/16" | 2.75 | 1.47 | 0.7 | 0.63 | 1.03 | 1.24 | 29 | 6060050916 |
| WRFFE0508 | 5/8" | 2.75 | 1.47 | 0.75 | 0.63 | 1.09 | 1.24 | 26 | 6060050508 |
| WRFFE0304 | 3/4" | 3.19 | 1.72 | 0.91 | 0.84 | 1.28 | 1.46 | 40 | 6060050304 |
| WRFFE0708 | 7/8" | 3.56 | 2.03 | 1.03 | 1 | 1.53 | 1.68 | 60 | 6060050708 |
| WRFFE1000 | 1" | 4 | 2.28 | 1.16 | 1.13 | 1.72 | 1.93 | 89 | 6060051000 |
| WRFFE1108 | 1-1/8" | 4.8 | 2.5 | 1.28 | 1.25 | 1.94 | 2.13 | 118 | 6060051108 |
| WRFFE1104 | 1-1/4" | 5.19 | 2.78 | 1.44 | 1.41 | 2.16 | 2.32 | 161 | 6060051104 |
| WRFFE1308 | 1-3/8" | 5.81 | 3 | 1.56 | 1.56 | 2.38 | 2.52 | 192 | 6060051308 |
| WRFFE1102 | 1-1/2" | 6.25 | 3.25 | 1.69 | 1.69 | 2.63 | 2.71 | 227 | 6060051102 |
| WRFFE1304 | 1-3/4" | 7.25 | 3.84 | 1.94 | 1.97 | 3.13 | 3.1 | 366 | 6060051304 |
| WRFFE2000 | 2" | 8.5 | 4.38 | 2.25 | 2.25 | 3.63 | 3.56 | 514 | 6060052000 |
| WRFFE2104 | 2-1/4" | 9.56 | 5.03 | 2.5 | 2.53 | 4.03 | 4.12 | 879 | 6060052104 |
| WRFFE2102 | 2-1/2" | 10.5 | 5.5 | 2.75 | 2.81 | 4.5 | 4.5 | 1068 | 6060052102 |
| WRFFE2304 | 2-3/4" | 11.5 | 5.75 | 3 | 3.09 | 4.75 | 4.7 | 1271 | 6060052304 |
| WRFFE3000 | 3" | 12 | 6 | 3.25 | 3.38 | 5 | 4.96 | 1335 | 6060053000 |
| WRFFE3104 | 3-1/4" | 13 | 6.5 | 3.86 | 3.54 | 5.43 | 5.37 | 1650 | 6060053104 |
| WRFFE3102 | 3-1/2" | 14 | 7 | 3.88 | 3.94 | 5.84 | 5.77 | 2106 | 6060053102 |
| WRFFE3304 | 3-3/4" | 15 | 7.5 | 4.06 | 4.25 | 6.31 | 6.23 | 2497 | 6060053304 |
| WRFFE4000 | 4" | 16 | 8.13 | 4.38 | 4.5 | 6.81 | 6.69 | 3087 | 6060054000 |
| WRFFE4102 | 4-1/2" | 18 | 9.13 | 4.88 | 5.06 | 7.66 | 7.45 | 4540 | 6060054102 |
| WRFFE5000 | 5" | 20 | 10.52 | 5.5 | 5.63 | 8.73 | 8.28 | 6600 | 6060055000 |
| WRFFE6000 | 6" | 24 | 12.54 | 6.5 | 6.75 | 10.2 | 9.93 | 12300 | 6060056000 |
