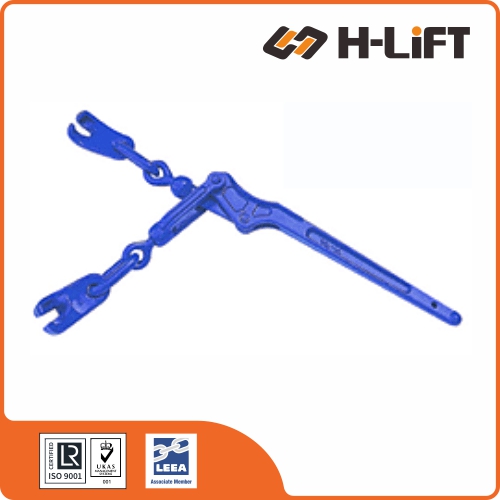

Name: G70 Lever type Load Binder with Claw Hook LLBH type
Brand: H-Lift Industries Co Ltd
SKU: 411504
Availability: InStock
Rating: 5 (1 reviews)

No.411504

The G70 Lever Type Load Binder with Claw Hooks (LLBH Type) is a high-performance mechanical chain tensioner compliant with AS/NZS 4344, specifically engineered for secure load restraint on trucks, trailers, and low loaders.

Integrated Claw Hooks: Specifically designed with claw-style hooks that securely cradle the chain link, preventing bending stress and allowing the system to achieve its full 100% Lashing Capacity (LC) rating without reduction.
Lever-Action Design: Utilizes a robust manual lever mechanism that draws lashing points together efficiently, enabling transport operators to quickly take up chain slack and secure heavy cargo with minimal effort.
Grade 70 Optimization: Purpose-built to match the superior strength-to-weight ratio of Grade 70 transport chains, making it a critical component for heavy-duty commercial transport primarily in the Australian and New Zealand markets.
Heavy-Duty Capacities: Available in tailored sizes to fit 7-8mm and 10mm chains, providing substantial Lashing Capacities of 3.8 tons and 6.0 tons respectively, with a Minimum Ultimate Load up to 12 tons.

Technical Data
Transport Chain and Fittings AS/NZS 4344
Technical Guide

G70 Lever Load Binder with Claw Hooks

AS/NZS 4344 Compliant Heavy Duty Load Restraint

AS/NZS 4344 Claw Hooks Grade 70 LC 3.8T - 6.0T

Product Features

Claw Hook Design: Fitted with heavy-duty G70 Claw Hooks, designed to securely grip transport chains or attach directly to compatible chassis anchor points.
AS/NZS 4344 Compliant: Fully tested and certified to meet the stringent Australian and New Zealand Standards for load restraint equipment.
High Lashing Capacity: Offers a robust Lashing Capacity (LC) of 3,800kg for 7-8mm chains and 6,000kg for 10mm chains, suitable for general freight and heavy machinery transport.
Durable Lever Action: The forged steel lever mechanism provides powerful leverage for tightening chains with minimal effort, featuring a safety design to prevent accidental release.
Traceability: Each binder is marked with the Lashing Capacity, chain size, and "G70" grade for easy identification and safety compliance checks.

Technical Specifications

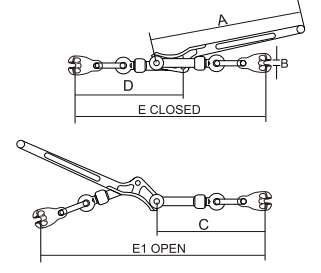

*Refer to table below for dimensions A-E1

Item No.	Chain Size (mm)	Lashing Capacity (ton)	Proof Load (ton)	Min. Ultimate Load (ton)	Dimensions (mm)						Product Code
Item No.	Chain Size (mm)	Lashing Capacity (ton)	Proof Load (ton)	Min. Ultimate Load (ton)	A	B	C	D	E	E1	Product Code
LLB08H	7-8	3.8	4.3	7.6	392	9.5	285	285	495	590	411504008
LLB10H	10	6.0	6.9	12.0	438	10.5	330	310	560	670	411504010

The G70 Transport Chain and Fittings range is widely utilized in the transportation industry for heavy-duty load binding, tie-down, and securing applications. Engineered for high performance, these components meet the rigorous requirements of AS/NZS 4344, ensuring safety and reliability in Australia and New Zealand.

Chain Specifications

Material: High-strength, heat-treated alloy steel.
Finish: Distinctive gold chromate finish for corrosion resistance and identification.
Strength: Superior strength-to-weight ratio compared to conventional chains.
Marking: Clearly stamped with "G70" to indicate grade.

Fittings & Compatibility

Fittings such as hooks, links, and connectors are manufactured to match the G70 chain's performance. They comply with AS/NZS 4344 and feature critical safety elements, such as latch mechanisms on hooks to prevent accidental detachment.

Usage Guidelines

Inspection: Regularly inspect for wear, deformation, or damage.
Limits: Always adhere to the Safe Working Load (SWL) / Lashing Capacity (LC).
Compatibility: Ensure all components in the lashing system are rated G70 or higher.

Grade 70 Component Example (AS/NZS 4344)

⚠️ Note on Standards:
While this information is accurate to current industry practices, standards (such as AS/NZS 4344) may be updated over time. Always refer to the latest version of the standard and consult with experts for specific application guidance.

Technical Guide: Load Binder Hook Types

Differences Between Grab, Cradle & Claw Hooks

Technical Guide Safety Critical AS/NZS 4344 Chain Fittings

Why Hook Choice Matters

When selecting a load binder, the type of end fitting determines the safety and capacity of your lashing system. Incorrect hook selection can lead to chain deformation, reduced working load limits, and potential failure.

This guide compares the three most common hook types:

Standard Grab Hook: General purpose, reduced capacity.
Cradle Grab Hook (Winged): Heavy duty, full capacity support.
Claw Hook: Specialized profile, full capacity support.

Detailed Breakdown

1. Standard Grab Hook

Design: A standard hook with a narrow throat and a plain, rounded bottom.
Chain Interaction: The chain link rests on a single point at the bottom of the hook. Under tension, this "point loading" can cause the chain link to bend or deform.
Capacity Impact: Reduces the chain's Working Load Limit (WLL) by approximately 25%.
Best For: General towing or non-critical lashing where full chain capacity is not required.

2. Cradle Grab Hook

Design: Also known as a "Winged Grab Hook," it features extra metal "wings" or lugs on both sides of the hook throat.
Chain Interaction: The wings cradle the chain link, supporting the shoulders of the link and preventing it from bending or shearing under load.
Capacity Impact: Maintains 100% of the chain's Lashing Capacity.
Best For: Heavy transport (AS/NZS 4344 compliant) where maximum strength is required.

3. Claw Hook

Design: A specialized hook often found on European or specific Australian binders (like the LLBH type), featuring a contoured seat.
Chain Interaction: Similar to the Cradle Hook, the Claw Hook is designed to fully seat the chain link, distributing the load evenly to prevent deformation.
Capacity Impact: Maintains 100% of the chain's Lashing Capacity.
Best For: Specific chassis anchor points or users preferring this profile over the winged design.

Quick Comparison Summary

Feature	Standard Grab Hook	Cradle (Winged) Hook	Claw Hook
Visual Profile	Plain throat	Side "Wings"	Contoured Seat
Chain Support	Point Contact (Risk of Bending)	Full Support (Cradled)	Full Support (Seated)
Capacity Impact	Reduces LC by 25%	100% Capacity	100% Capacity
Standard Use	General Use	AS/NZS 4344 (Transport)	AS/NZS 4344 (Transport)
