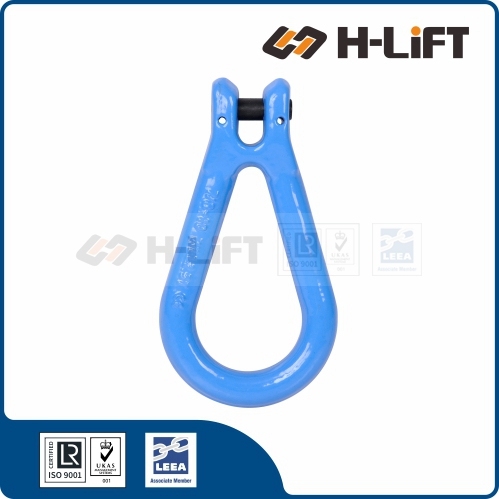

Name: Grade 100 Clevis Reeving Link CRL type
Brand: H-Lift Industries Co Ltd
SKU: 505015
Availability: InStock
Rating: 5 (1 reviews)

No.505015

The Grade 100 Clevis Reeving Link (CRL Type) is a heavy-duty, high-strength terminal connector engineered specifically for use in reevable (choker) chain slings and general lifting applications.

Direct Chain Attachment: Features a built-in clevis mechanism with a load pin, allowing for fast, secure, and direct connection to Grade 100 lifting chains without extra coupling links.
Choker Configuration: Ideal for functioning as the top or terminal end fitting in a reevable sling setup, allowing the chain to pass through the link smoothly.
Grade 100 Superior Strength: Forged from quenched and tempered super alloy steel, providing approximately 25% higher lifting capacity than standard Grade 80 links.
Rigorous Quality Control: Subjected to 100% magnaflux crack detection and break testing to ensure maximum reliability and safety in demanding industrial environments.

Technical Data
G-100 Alloy Fittings

Grade 100 Clevis Reeving Link - CRL Type

Terminal Link for Choker Hitches & Reeving Applications

Grade 100 Alloy Steel Choker Hitch Optimized Clevis Connection Chain Protection

*Wide opening allows chain to pass through for secure choking

Product Features

Optimized for Choker Hitches: Specifically designed to function as a terminal link for "Reeving" (Choking) applications. The chain passes through the wide link opening to tighten around the load securely.
Chain Protection: Unlike using a standard grab hook for choking (which can crush links), the CRL's smooth, rounded profile allows the chain to slide freely and naturally, reducing stress concentrations and extending chain life.
Direct Clevis Connection: Features an integrated clevis pin for direct attachment to Grade 100 Chain. No need for a separate Connecting Link (Hammerlock).
Dual Functionality: Can also be used as a Clevis Master Link for single-leg slings, or as an adapter to connect eye-type fittings to the chain.
Grade 100 Alloy: Manufactured from high-strength Grade 100 steel, offering 25% higher lifting capacity than Grade 80 equivalents.
Standard: Compliant with EN 1677-1 and ASTM A952.

Choker Hitch Methods: Hook vs. Link

Method	Chain Interaction	Safety & Wear
Reeving Link (CRL) (This Product)	Smooth Pass-Through	Best Practice. Chain slides through the wide ring. No crushing forces. Extends chain life.
Hook Back (Choking) (Standard Hook)	Point Loading	High Wear. Hooking onto a link causes bending stress and point loading, reducing the chain's WLL significantly.

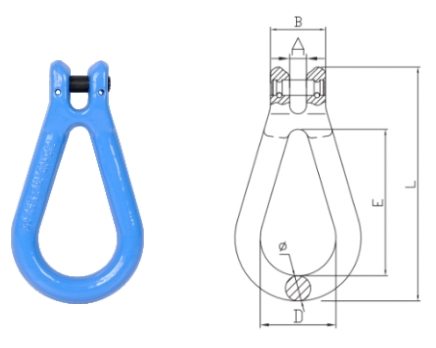

Technical Specifications

Item No.	Chain Size (mm)	WLL (ton)	Main Dimensions (mm)						Weight (kg)	Product Code
Item No.	Chain Size (mm)	WLL (ton)	A	B	D	E	φ	L	Weight (kg)	Product Code
10-CRL-13	13	6.7	16.5	55.5	66.5	137.5	22	228	1.76	505015013
10-CRL-16	16	10	19	68	72	165	26	264	2.8	505015016

Grade 100 Sling Components are high-strength alloy steel lifting accessories designed for heavy-duty lifting applications. Compared with Grade 80, Grade 100 offers higher working load limits (WLL) at the same size, or the same WLL with a smaller, lighter component.

What Does "Grade 100" Mean?

High-Strength Alloy: Heat-treated, quenched, and tempered steel.
Increased Capacity: Typically 25% higher WLL than Grade 80.
Safety Factor: Minimum breaking force ≈ 4 × WLL.
Standards: EN 818-4 / EN 818-6, ASTM equivalents.

Common Sling Components

1. Master Links

Used to connect the sling to the crane hook.

Master Link (ML)
Master Link Assembly (2-leg, 3-leg, 4-leg)
Pear-shaped master links

2. Hooks

End fittings for attaching loads.

Clevis Self-Locking Hook (Common)
Eye Self-Locking Hook
Sling Hook with Latch
Foundry Hook
Shortening Hook (Eye/Clevis)

3. Connecting Links

Used to join chain or components.

Clevis Connector
Hammerlock / Coupling Link
Repair Link (Special use only)

4. Special Components

For complex rigging scenarios.

Swivels (Bearing/Non-bearing)
Chain Adjusters
Lifting Rings (Rotating)
Grab Hooks

Grade 80 vs Grade 100 (Quick Comparison)

Item	Grade 80	Grade 100
Relative Strength	Base	+25% Higher
Sling Weight	Heavier	Lighter
Typical Marking	G80 / 8	G100 / 10
Cost	Lower	Higher

Identification & Markings

Every Grade 100 component must be clearly marked with:

Grade: G100 or 10
Manufacturer's Mark
Size or WLL
Traceability Code (Batch / Heat Number)

⚠️ Safety & Compatibility Warning

❌ NEVER mix Grade 100 with Grade 80 components in the same sling assembly.
✅ Use only Grade 100 chain + Grade 100 fittings together.
Regularly inspect for wear (>10%), cracks, deformation, heat damage, or corrosion.
