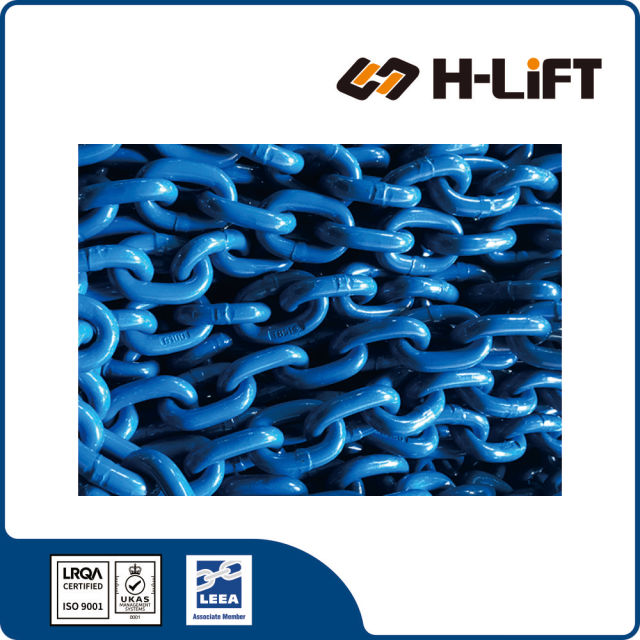

H-Lift Grade 100 Lifting Chain is a premium, high-strength alloy steel chain designed specifically for heavy-duty overhead lifting, offering approximately 25% higher lifting capacity than standard Grade 80 chains.
| Chain Size | Grade 80 WLL | Grade 100 WLL | Increase |
|---|---|---|---|
| 8 mm | 2.0 Tonnes | 2.5 Tonnes | +25% |
| 10 mm | 3.15 Tonnes | 4.0 Tonnes | +25% |
| 13 mm | 5.3 Tonnes | 6.7 Tonnes | +25% |
| 16 mm | 8.0 Tonnes | 10.0 Tonnes | +25% |
| Item No. | Nominal Size (mm) | Pitch (mm) | Ext. Width (mm) | WLL (t) | Proof Force (kN) | Min Breaking Force (kN) | Weight (kg/m) | Product Code |
|---|---|---|---|---|---|---|---|---|
| G10S0618 | 6 | 18 | 22.2 | 1.4 | 35.3 | 56.5 | 0.8 | 504010618 |
| G10S0824 | 8 | 24 | 29.6 | 2.5 | 62.8 | 101 | 1.4 | 504010824 |
| G10S1030 | 10 | 30 | 37.0 | 4 | 98.1 | 157 | 2.2 | 504011030 |
| G10S1339 | 13 | 39 | 48.1 | 6.7 | 166 | 265 | 3.8 | 504011337 |
| G10S1648 | 16 | 48 | 59.2 | 10 | 251 | 402 | 5.7 | 504011648 |
| G10S1854 | 18 | 54 | 66.6 | 12.5 | 318 | 509 | 7.3 | 504011854 |
| G10S2060 | 20 | 60 | 74.0 | 16 | 393 | 628 | 9 | 504012060 |
| G10S2266 | 22 | 66 | 81.4 | 19 | 475 | 760 | 10.9 | 504012266 |
Grade 100 Sling Components are high-strength alloy steel lifting accessories designed for heavy-duty lifting applications. Compared with Grade 80, Grade 100 offers higher working load limits (WLL) at the same size, or the same WLL with a smaller, lighter component.
Used to connect the sling to the crane hook.
End fittings for attaching loads.
Used to join chain or components.
For complex rigging scenarios.
| Item | Grade 80 | Grade 100 |
|---|---|---|
| Relative Strength | Base | +25% Higher |
| Sling Weight | Heavier | Lighter |
| Typical Marking | G80 / 8 | G100 / 10 |
| Cost | Lower | Higher |
Every Grade 100 component must be clearly marked with:
Blue E-coating (electrophoretic coating) is a specialized corrosion-resistant finish applied to the surface of Grade 100 lifting chains. It provides enhanced protection against rust, improves aesthetics, and offers a distinct visual indicator for grade identification in busy industrial environments.
Creates a bonded protective layer that makes the chain highly resistant to rust and moisture. Essential for outdoor construction, mining, and offshore operations.
Color Coding: The distinct blue color serves as an immediate visual indicator, making it easy to distinguish Grade 100 (Blue) from Grade 80 (typically Black) to prevent mismatching.
The E-coating process applies a uniform, consistent layer even between links, ensuring thorough protection that extends the chain's service life.
Provides a clean, professional finish. While functional, it is also beneficial for applications where the visual appearance of rigging gear matters.
Chains with blue E-coating are commonly used in heavy-duty lifting industries like construction and mining where strength and environmental resistance are critical.
