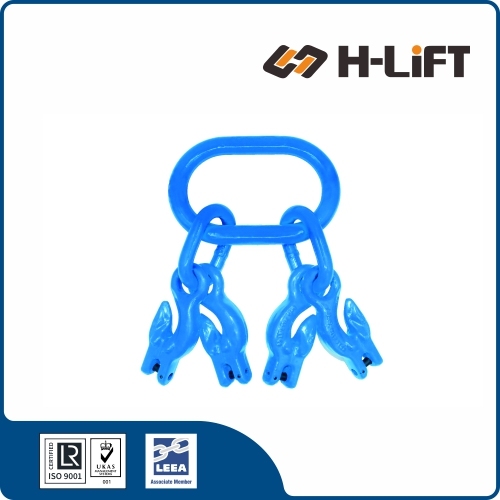

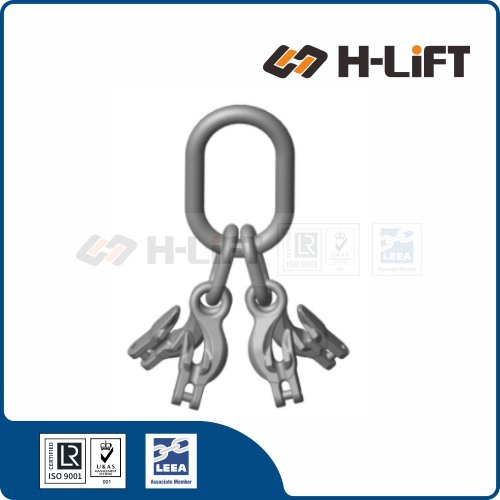

The Grade 100 Master Link Assembly with Integrated Shortening Hooks (MAQ Type) is an all-in-one top rigging component designed specifically for 3-leg and 4-leg chain slings.
*Integrated hooks simplify 4-leg sling assembly
| Method | Parts Required | Advantages |
|---|---|---|
| Integrated (MAQ) (This Product) |
1 Component (MAQ Assembly Only) |
Efficient. Hooks are built-in. Lighter, shorter vertical length, and faster to assemble. |
| Traditional Build (Separate Parts) |
9+ Components (1 Master Link + 4 Connectors + 4 Grab Hooks) |
Modular. Allows replacing individual parts, but heavy, bulky, and time-consuming to assemble. |
| Item No. | Chain Size (mm) |
WLL (ton) |
Included Parts | Weight (kg) |
Product Code | |
|---|---|---|---|---|---|---|
| Master Link | Shortener Sub-Assembly | |||||
| 10-MAQ-06 | 6 | 3.0 | 10-MLY-06 | 10-EGC-06 X 4 | 2.5 | 505030006 |
| 10-MAQ-08 | 8 | 5.3 | 10-MLY-08 | 10-EGC-08 X 4 | 5.09 | 505030008 |
| 10-MAQ-10 | 10 | 8.4 | 10-MLY-10 | 10-EGC-10 X 4 | 9.02 | 505030010 |
| 10-MAQ-13 | 13 | 14 | 10-MLY-13 | 10-EGC-13 X 4 | 15.94 | 505030013 |
| 10-MAQ-16 | 16 | 21.2 | 10-MLY-16 | 10-EGC-16 X 4 | 28.1 | 505030016 |
Grade 100 Sling Components are high-strength alloy steel lifting accessories designed for heavy-duty lifting applications. Compared with Grade 80, Grade 100 offers higher working load limits (WLL) at the same size, or the same WLL with a smaller, lighter component.
Used to connect the sling to the crane hook.
End fittings for attaching loads.
Used to join chain or components.
For complex rigging scenarios.
| Item | Grade 80 | Grade 100 |
|---|---|---|
| Relative Strength | Base | +25% Higher |
| Sling Weight | Heavier | Lighter |
| Typical Marking | G80 / 8 | G100 / 10 |
| Cost | Lower | Higher |
Every Grade 100 component must be clearly marked with:
