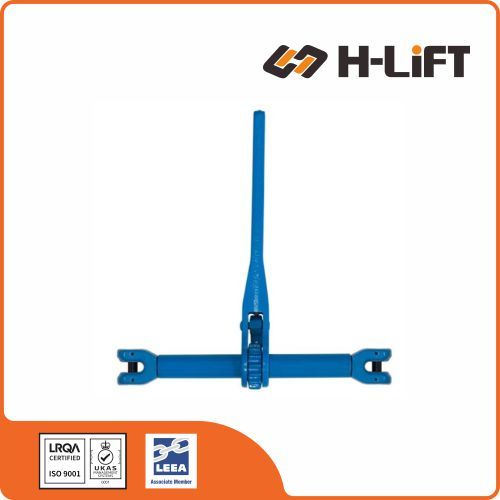

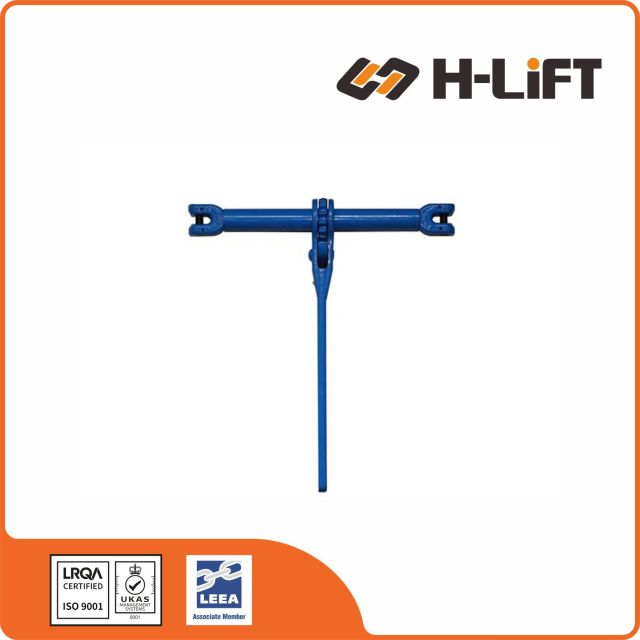

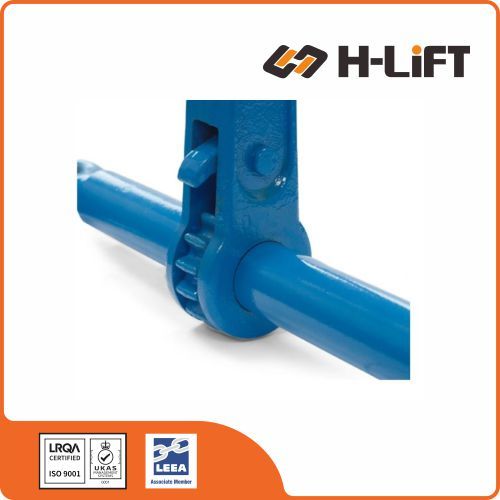

The Grade 100 Ratchet Load Binder with Clevis Attachments (RLCT Type) is an essential, high-strength tool used to securely tighten and lock chains around cargo for safe transportation on flatbeds and heavy-duty trailers.

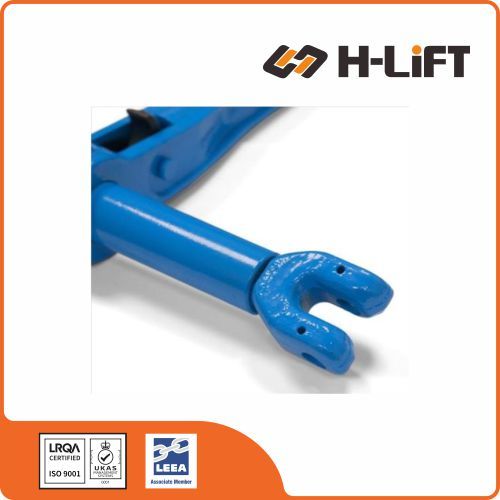

*Complete with clevis grab hooks ready for use
| Type | Operation | Safety & Ease |
|---|---|---|
| Ratchet Binder (This Product) |
Geared / Screw | Safest Choice. No recoil. Allows infinite adjustment for precise tension. Easier to use, requires less force. |
| Lever Binder (Snap Binder) |
Lever Action | Risk of Injury. Handle stores kinetic energy and can "snap back" violently if not handled correctly. Harder to tighten. |
| Item No. | Size (mm) |
LC (kN) |
BF (kN) |

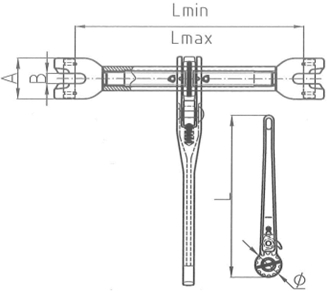

Main Dimensions (mm) | Weight (kg) |
Product Code | |||||
|---|---|---|---|---|---|---|---|---|---|---|---|
| A | B | L | Φ | Lmin | Lmax | ||||||
| RLCT08 | 8 | 50 | 100 | 40 | 10 | 383 | 56 | 312 | 472 | 2.6 | 411104008 |
| RLCT10 | 10 | 80 | 160 | 49 | 13 | 388.6 | 65 | 337 | 497 | 3.9 | 411104010 |
| RLCT13 | 13 | 134 | 268 | 64 | 16 | 392.5 | 69 | 341 | 505 | 5.4 | 411104013 |
The relevant standard is BS EN 12195-3: 2001. This requires:
Note: Lashing Capacity (LC) is expressed in daN (decaNewton). 1 daN ≈ 1 kg.
Ensure the load binder (tensioner) is free to align and not bent over an edge. The chain must not be twisted. Hooks must engage correctly. Sharp Edges: If using over small radius edges without protection, the lashing capacity MUST be reduced according to manufacturer instructions.
Hydrogen Embrittlement: Never expose chains to acids. If contaminated, clean with clear water and dry naturally.
Rejection Criteria: Do not use if you find illegible markings, bent/elongated links, distorted hooks, or missing safety latches.
Storage: Store in a clean, dry area, hanging up if possible to prevent corrosion and contamination.
