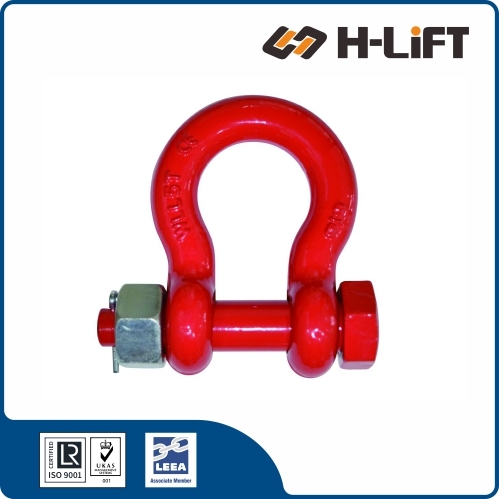

The Grade 80 Bolt Type Alloy Anchor Shackle (BBS Type) is a high-strength, bow-shaped lifting component engineered for highly secure and versatile rigging applications. Combining a spacious anchor profile with a highly secure bolt-type pin assembly, it is ideal for long-term installations and complex lifting operations.
*Bolt type pin for permanent and offshore applications
| Rigging Challenge | BBS Type (This Product) | Other Types |
|---|---|---|
| Side Loading / Multi-leg | ✔ YES | ✘ NO (Dee Type) |
| Vibration / Rotation | ✔ SECURE | ✘ RISK (Screw Pin) |
| Long-term Permanent | ✔ BEST CHOICE | ✘ TEMPORARY |
| Product Code | Shape | Pin Type | Best For... |
|---|---|---|---|
| SDS Type | Chain (D-Shape) | Screw Pin | Single-leg, Temporary, Straight Pull. |
| SBS Type | Anchor (Bow) | Screw Pin | Multi-leg, Side loading, Temporary. |
| BDS Type | Chain (D-Shape) | Bolt Type | Single-leg, Permanent installation. |
| BBS Type (This Product) |
Anchor (Bow) | Bolt Type | Multi-leg, Side loading, Permanent/Offshore. |
| Item No. | Size (inch) |
WLL (t) |
Main Dimensions (mm) | Weight (kg) |
Product Code | ||||||
|---|---|---|---|---|---|---|---|---|---|---|---|
| A | C | D | L | N | L1 | B | |||||
| 8-BBS-08 | 5/16" | 1.2 | 13.5 | 21.3 | 8 | 53 | 9.5 | 50.5 | 8.4 | 0.10 | 502050008 |
| 8-BBS-10 | 3/8" | 1.6 | 16.8 | 25.9 | 9.7 | 63.2 | 11 | 62 | 10.8 | 0.15 | 502050010 |
| 8-BBS-11 | 7/16" | 2.5 | 19 | 29.5 | 11.2 | 74 | 13 | 70 | 12.8 | 0.22 | 502050011 |
| 8-BBS-13 | 1/2" | 3.3 | 20.6 | 33.3 | 12.7 | 83.3 | 16 | 79.5 | 14.8 | 0.46 | 502050013 |
| 8-BBS-16 | 5/8" | 5 | 27 | 42.9 | 17.5 | 106.4 | 19 | 101.5 | 18 | 0.73 | 502050016 |
| 8-BBS-19 | 3/4" | 7 | 32 | 51 | 20.6 | 126.2 | 22 | 117.5 | 19.4 | 1.10 | 502050019 |
| 8-BBS-22 | 7/8" | 9.5 | 36.6 | 57.9 | 24.6 | 148 | 25 | 136 | 21.5 | 1.79 | 502050022 |
| 8-BBS-25 | 1" | 12.5 | 43 | 68.3 | 27 | 166.6 | 28 | 153.5 | 23.8 | 2.57 | 502050025 |
| 8-BBS-28 | 1-1/8" | 15 | 46 | 74 | 31.75 | 190 | 32 | 171.5 | 25.6 | 3.75 | 502050028 |
| 8-BBS-32 | 1-1/4" | 18 | 51.6 | 82.5 | 35 | 210 | 35 | 192 | 31 | 5.31 | 502050032 |
| 8-BBS-35 | 1-3/8" | 21 | 57 | 92 | 36 | 232.7 | 38 | 202 | 33.4 | 7.18 | 502050035 |
| 8-BBS-38 | 1-1/2" | 30 | 60.5 | 98 | 41 | 254 | 42 | 222 | 34 | 9.43 | 502050038 |
| 8-BBS-44 | 1-3/4" | 40 | 73 | 126 | 57.2 | 313.7 | 51 | 278 | 38 | 13.38 | 502050044 |
| 8-BBS-50 | 2" | 55 | 82.5 | 146 | 61 | 347.5 | 57 | 307 | 45 | 23.70 | 502050050 |
Grade 80 Sling Components are the long-established industry standard for chain slings and heavy lifting. Fully compliant with international lifting regulations and designed for durability.
Used to connect the sling to a crane or hoist hook.
End fittings for secure load attachment.
Essential hardware to join chains or fittings.
The core lifting medium and adjustment tools.
| Feature | Grade 80 | Grade 100 |
|---|---|---|
| Strength Level | Standard Industry Standard | +25% Higher |
| Component Size | Larger | Smaller (for same WLL) |
| Weight | Heavier | Lighter |
| Cost | More Cost-Effective | Higher |
