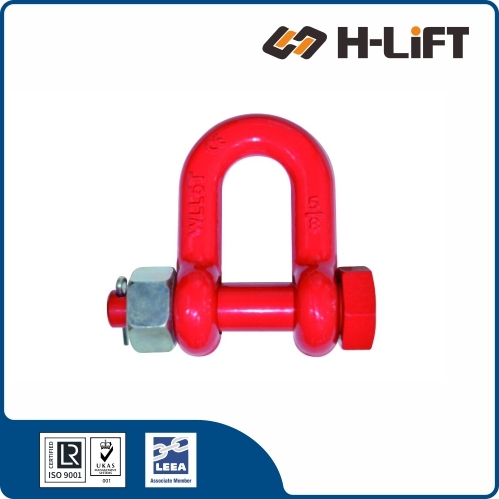

The Grade 80 Bolt Type Alloy Chain Shackle (BDS Type) is a heavy-duty, D-shaped lifting connector engineered for straight-line pulling. Featuring a highly secure bolt, nut, and cotter pin assembly, it provides maximum reliability for permanent or long-term installations in rigorous industrial environments.
*Cotter pin prevents loosening under vibration
| Feature | Bolt Type (This Product) | Screw Pin |
|---|---|---|
| Vibration Risk | Secure Cotter pin prevents loosening. |
Risk Pin can "walk out" under vibration. |
| Duration | Permanent / Long-term | Temporary / Frequent moves |
| Installation Speed | Slower (Requires tools) | Faster (Hand tighten/Bar) |
| Product Code | Shape | Pin Type | Best For... |
|---|---|---|---|
| SDS Type | Chain (D-Shape) | Screw Pin | Single-leg, Temporary, Pick & Place. |
| SBS Type | Anchor (Bow) | Screw Pin | Multi-leg, Side loading, Temporary. |
| BDS Type (This Product) |
Chain (D-Shape) | Bolt Type | Single-leg, Permanent Installation. |
| BBS Type | Anchor (Bow) | Bolt Type | Multi-leg, Side loading, Permanent/Offshore. |
| Item No. | Size (inch) |
WLL (t) |
Main Dimensions (mm) | Weight (kg) |
Product Code | |||||
|---|---|---|---|---|---|---|---|---|---|---|
| A | D | B | L | L1 | C | |||||
| 8-BDS-08 | 5/16" | 1.2 | 13.5 | 8 | 9.5 | 48.5 | 50.5 | 8.4 | 0.10 | 502051008 |
| 8-BDS-10 | 3/8" | 1.6 | 16.8 | 9.7 | 11 | 58.4 | 62 | 10.8 | 0.15 | 502051010 |
| 8-BDS-11 | 7/16" | 2.5 | 19.1 | 11.2 | 13 | 67.6 | 70 | 12.8 | 0.22 | 502051011 |
| 8-BDS-13 | 1/2" | 3.3 | 20.6 | 12.7 | 16 | 77 | 79.5 | 14.8 | 0.34 | 502051013 |
| 8-BDS-16 | 5/8" | 5 | 27 | 17.5 | 19 | 97.3 | 101.5 | 18 | 0.67 | 502051016 |
| 8-BDS-19 | 3/4" | 7 | 32 | 20.6 | 22 | 116.6 | 117.5 | 19.4 | 1.14 | 502051019 |
| 8-BDS-22 | 7/8" | 9.5 | 36.6 | 24.6 | 25 | 135.4 | 136 | 21.5 | 1.75 | 502051022 |
| 8-BDS-25 | 1" | 12.5 | 43 | 27 | 28 | 152.4 | 153.5 | 23.8 | 2.52 | 502051025 |
| 8-BDS-28 | 1-1/8" | 15 | 46 | 31.8 | 32 | 172.4 | 171.5 | 25.6 | 3.45 | 502051028 |
| 8-BDS-32 | 1-1/4" | 18 | 51.6 | 35 | 35 | 190.5 | 192 | 31 | 4.90 | 502051032 |
| 8-BDS-35 | 1-3/8" | 21 | 57 | 35 | 38 | 206.8 | 202 | 33.4 | 6.24 | 502051035 |
| 8-BDS-38 | 1-1/2" | 30 | 60.5 | 41 | 42 | 230.1 | 222 | 34 | 8.39 | 502051038 |
| 8-BDS-44 | 1-3/4" | 40 | 73 | 53.8 | 51 | 279 | 278 | 38 | 14.24 | 502051044 |
| 8-BDS-50 | 2" | 55 | 82.5 | 61 | 57 | 324.6 | 307 | 45 | 21.22 | 502051050 |
Grade 80 Sling Components are the long-established industry standard for chain slings and heavy lifting. Fully compliant with international lifting regulations and designed for durability.
Used to connect the sling to a crane or hoist hook.
End fittings for secure load attachment.
Essential hardware to join chains or fittings.
The core lifting medium and adjustment tools.
| Feature | Grade 80 | Grade 100 |
|---|---|---|
| Strength Level | Standard Industry Standard | +25% Higher |
| Component Size | Larger | Smaller (for same WLL) |
| Weight | Heavier | Lighter |
| Cost | More Cost-Effective | Higher |
