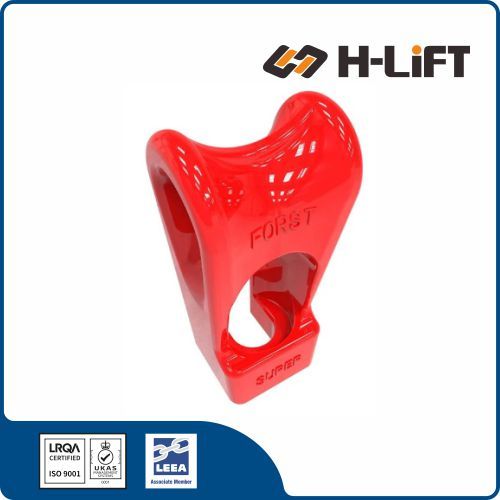

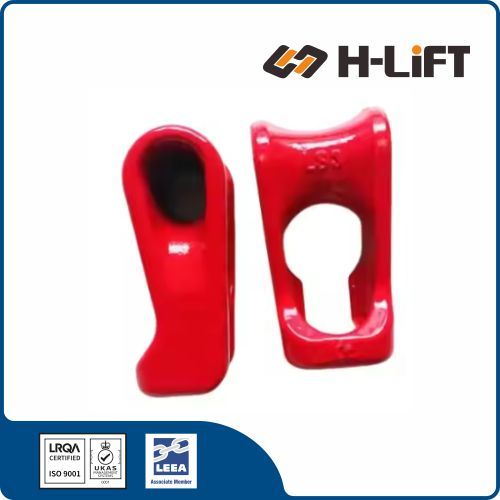

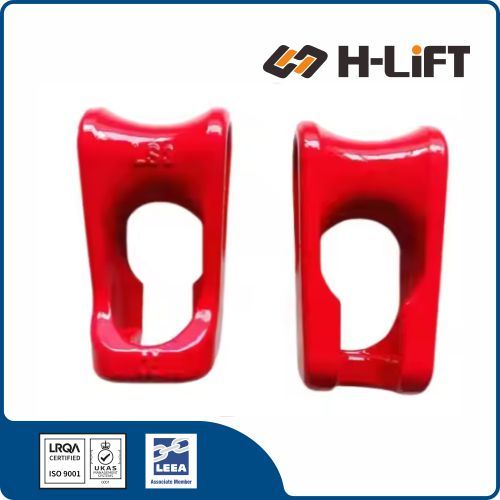

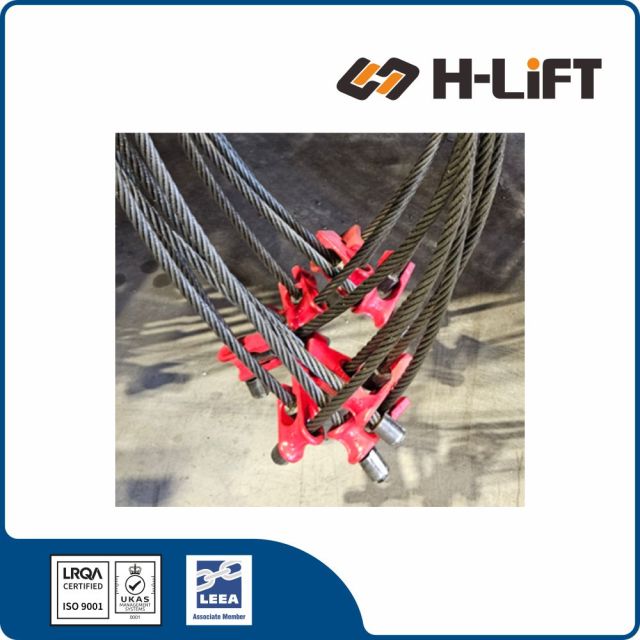

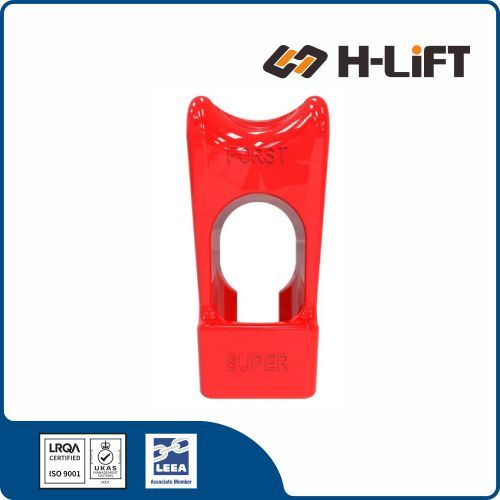

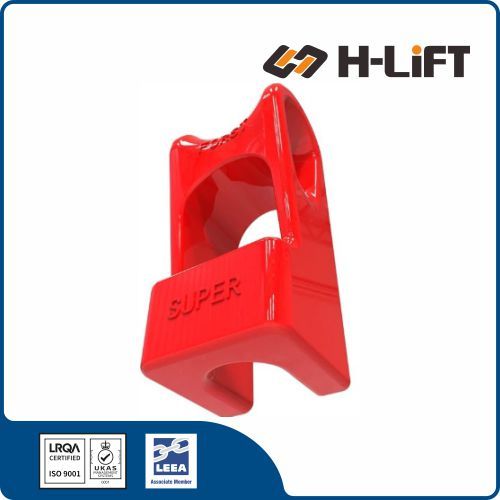

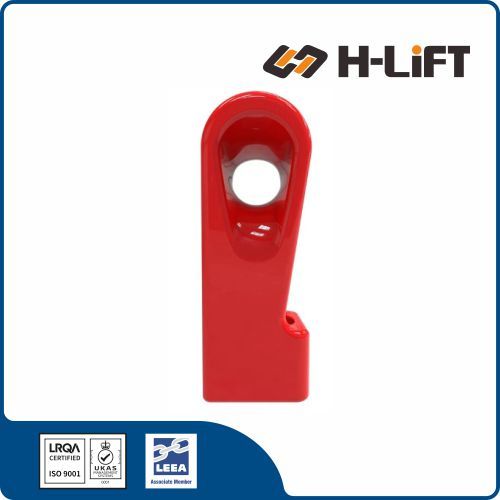

The Grade 80 Cast Steel Logging Choker Hook is a specialized, heavy-duty rigging component designed exclusively for the demanding environments of the forestry and logging industries. It is used to securely grab and tighten chains around logs for efficient skidding, pulling, and hauling operations.
*Rugged cast steel designed for dragging logs
| Hook Type | Chain Interaction | Function |
|---|---|---|
| Choker Hook (This Product) |
Chain passes through the hook throat. Tightens around the log as you pull (Choking action). | |
| Grab Hook (Clevis / Eye) |
LOCKS | Chain link slots into the narrow throat. Fixed length, does not slide. Used for towing or shortening chains. |
| Item No. | WLL (t) |
Main Dimensions (mm) | Weight (kg) |
Product Code | ||||
|---|---|---|---|---|---|---|---|---|
| A | B | C | R | L | ||||
| 8-CSC-01 | 2 | 18 | 18 | 16 | 15 | 101 | 0.44 | 502053001 |
| 8-CSC-02 | 2 | 17.5 | 20 | 18 | 16.5 | 93 | 0.30 | 502053002 |
| 8-CSC-03 | 2 | 18 | 20.5 | 19.2 | 15.8 | 112 | 0.62 | 502053003 |
Grade 80 Sling Components are the long-established industry standard for chain slings and heavy lifting. Fully compliant with international lifting regulations and designed for durability.
Used to connect the sling to a crane or hoist hook.
End fittings for secure load attachment.
Essential hardware to join chains or fittings.
The core lifting medium and adjustment tools.
| Feature | Grade 80 | Grade 100 |
|---|---|---|
| Strength Level | Standard Industry Standard | +25% Higher |
| Component Size | Larger | Smaller (for same WLL) |
| Weight | Heavier | Lighter |
| Cost | More Cost-Effective | Higher |
