The Grade 80 Chain and Wire Rope Connector (CRC Type) is a specialized transitional fitting designed to safely and seamlessly couple alloy lifting chains directly to wire rope assemblies. It provides a highly reliable, low-profile connection point for complex rigging setups where the specific advantages of both chain and wire rope are required.
The CRC Grade 80 Connector is a specialized hybrid link designed to seamlessly connect Grade 80 Lifting Chain to Wire Rope (via thimble). Its streamlined profile eliminates the bulk of standard shackles, allowing the assembly to pass smoothly through winch rollers, fairleads, and sheaves.
| Feature | Standard Shackle | CRC Connector (This Product) |
|---|---|---|
| Profile / Bulk | Bulky Pin protrudes, can snag on obstacles. |
Streamlined Smooth profile, fits through rollers. |
| Stability | Loose connection, moves around. | Rigid / Stable. Acts as a solid link. |
| Best For | General temporary lifting. | Winch lines, Drag lines, Permanent rigs. |
Specifically engineered to join chain and wire rope. The wire rope end features a wider bearing surface to fit standard thimbles perfectly, reducing wear on the rope eye.
The compact, low-profile design passes easily through machinery components like fairleads and sheaves, preventing jams common with bulky shackles.
Features a load pin and retaining sleeve mechanism (similar to a connecting link) for quick, tool-free assembly on-site.
Essential for Towing, Trawling (Fishing), Mining Winches, and Mooring where the durability of chain meets the reach of wire rope.

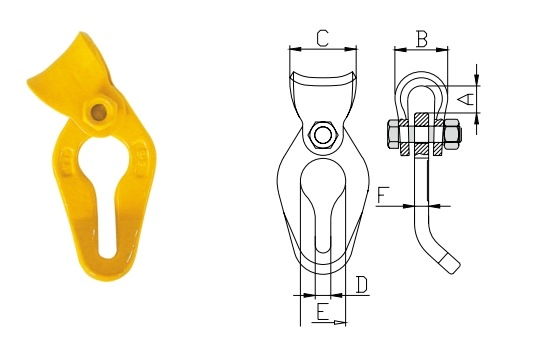

| Item No. | Chain Size (mm) | WLL (t) | Main Dimensions (mm) | Weight (kg) | Product Code | |||||
|---|---|---|---|---|---|---|---|---|---|---|
| A | B | C | D | E | F | |||||
| 8-CRC-06 | 6 | 1.4 | 20 | 42 | 49 | 10 | 30 | 8 | 0.53 | 502026006 |
| 8-CRC-08 | 7+8 | 2 | 20 | 42 | 49 | 11.5 | 33.5 | 10.5 | 0.65 | 502026008 |
| 8-CRC-10 | 10 | 3.15 | 21.5 | 47 | 57 | 13 | 40 | 10.5 | 1.00 | 502026010 |
Grade 80 Sling Components are the long-established industry standard for chain slings and heavy lifting. Fully compliant with international lifting regulations and designed for durability.
Used to connect the sling to a crane or hoist hook.
End fittings for secure load attachment.
Essential hardware to join chains or fittings.
The core lifting medium and adjustment tools.
| Feature | Grade 80 | Grade 100 |
|---|---|---|
| Strength Level | Standard Industry Standard | +25% Higher |
| Component Size | Larger | Smaller (for same WLL) |
| Weight | Heavier | Lighter |
| Cost | More Cost-Effective | Higher |
