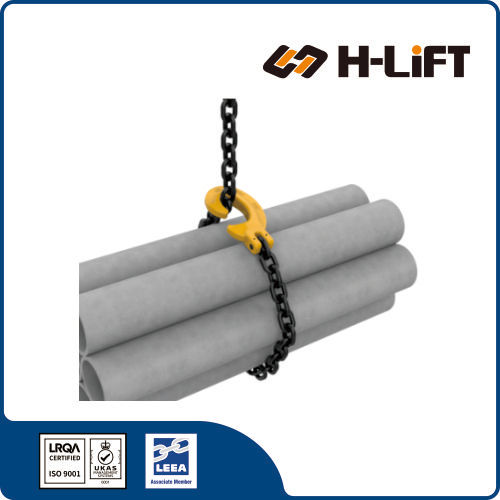

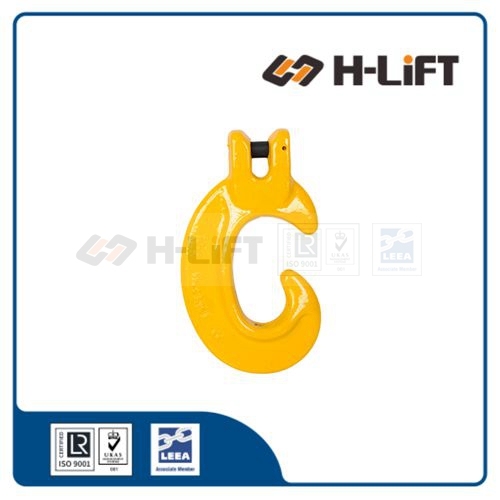

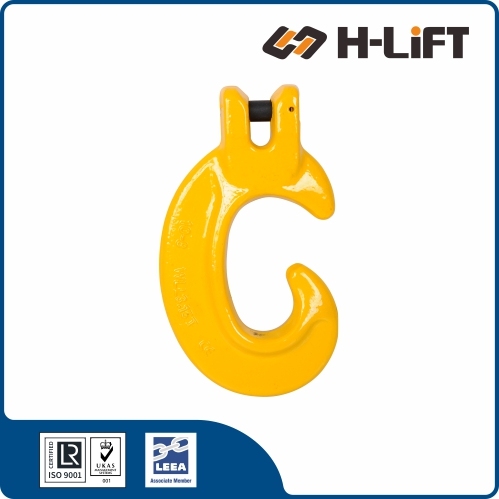

The Grade 80 Clevis C Hook (CCK Type) is a heavy-duty, latch-free lifting component with a wide throat opening. It is designed for fast, repetitive rigging operations where a standard safety latch would reduce efficiency.
*Latch-free design for quick connection in rough terrain
| Hook Type | Latch System | Best Application |
|---|---|---|
| Clevis C-Hook (CCK Type) |
No Latch | Forestry & Skidding. Best for dragging logs where mud/dirt would jam or break a spring latch. |
| Sling Hook (Standard) |
Spring Latch | Overhead Lifting. Safety latch is mandatory for lifting goods overhead in factories/sites. |

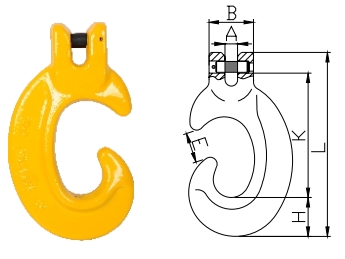

| Item No. | Chain Size (mm) |
WLL (t) |
Main Dimensions (mm) | Weight (kg) |
Product Code | |||||
|---|---|---|---|---|---|---|---|---|---|---|
| A | E | B | H | K | L | |||||
| 8-CCK-08 | 7+8 | 2 | 9.5 | 20 | 35 | 28 | 90 | 136 | 0.57 | 502025008 |
| 8-CCK-10 | 10 | 3.15 | 13 | 29.5 | 46 | 39.5 | 127 | 189 | 1.40 | 502025010 |
| 8-CCK-13 | 13 | 5.3 | 16.5 | 39.5 | 59 | 52 | 166.5 | 246 | 3.00 | 502025013 |
| 8-CCK-16 | 16 | 8 | 18.5 | 46.5 | 72 | 59 | 206 | 298 | 5.42 | 502025016 |
Grade 80 Sling Components are the long-established industry standard for chain slings and heavy lifting. Fully compliant with international lifting regulations and designed for durability.
Used to connect the sling to a crane or hoist hook.
End fittings for secure load attachment.
Essential hardware to join chains or fittings.
The core lifting medium and adjustment tools.
| Feature | Grade 80 | Grade 100 |
|---|---|---|
| Strength Level | Standard Industry Standard | +25% Higher |
| Component Size | Larger | Smaller (for same WLL) |
| Weight | Heavier | Lighter |
| Cost | More Cost-Effective | Higher |
