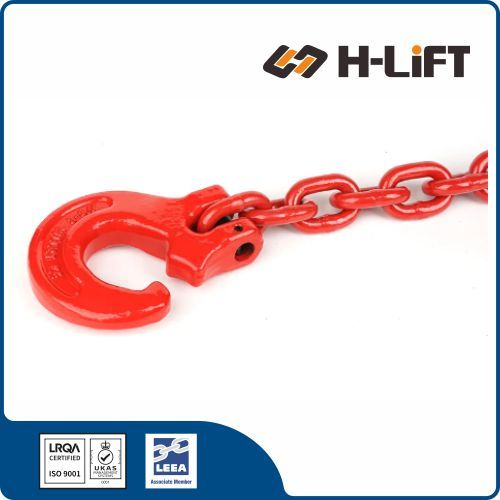

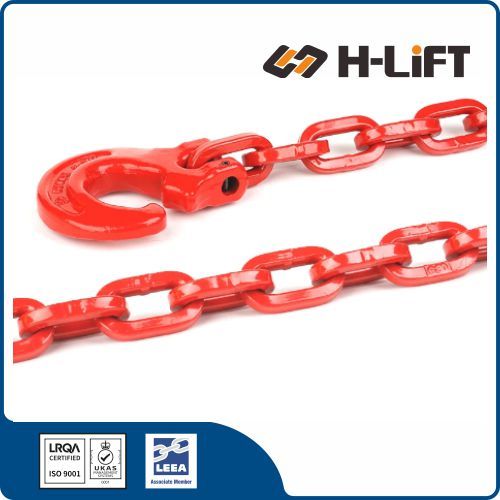

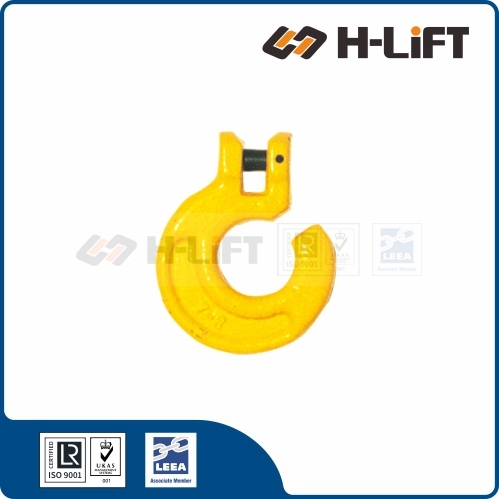

The Grade 80 Clevis Forest Hook (CFK Type), commonly known as a logging clevis, is a highly specialized rigging component engineered specifically for the forestry and logging industries. It is designed to securely grip and choke chains around logs for heavy-duty skidding, pulling, and hauling.
*Narrow tip for secure choking, snag-free profile
| Hook Type | Design Focus | Performance in Woods |
|---|---|---|
| Forest Hook (CFK) (This Product) |
Logging Specific | Snag-Free. Special shape slides over roots/rocks. Hooks securely into chain links for skidding. |
| Standard Sling Hook (General Purpose) |
Lifting Only | Prone to Damage. Safety latch will break in mud/dirt. Hook shape may catch on debris while dragging. |

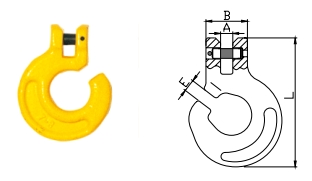

| Item No. | Chain Size (mm) |
WLL (t) |
Main Dimensions (mm) | Weight (kg) |
Product Code | |||
|---|---|---|---|---|---|---|---|---|
| B | A | E | L | |||||
| 8-CFK-06 | 6 | 1.12 | 31 | 8 | 8.5 | 83 | 0.286 | 502018006 |
| 8-CFK-08 | 7+8 | 2 | 35 | 9.5 | 9.8 | 95.5 | 0.413 | 502018008 |
| 8-CFK-10 | 10 | 3.15 | 44 | 13 | 13 | 137 | 0.920 | 502018010 |
| 8-CFK-13 | 13 | 5.3 | 53 | 16 | 16 | 165 | 1.750 | 502018013 |
Grade 80 Sling Components are the long-established industry standard for chain slings and heavy lifting. Fully compliant with international lifting regulations and designed for durability.
Used to connect the sling to a crane or hoist hook.
End fittings for secure load attachment.
Essential hardware to join chains or fittings.
The core lifting medium and adjustment tools.
| Feature | Grade 80 | Grade 100 |
|---|---|---|
| Strength Level | Standard Industry Standard | +25% Higher |
| Component Size | Larger | Smaller (for same WLL) |
| Weight | Heavier | Lighter |
| Cost | More Cost-Effective | Higher |
