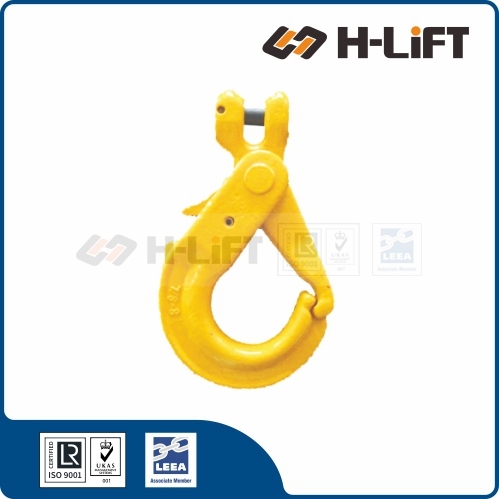

The Grade 80 Clevis Self-Locking Hook with Grip Latch (NCS Type) is an advanced safety lifting component. It automatically closes under load and features an ergonomic grip design for enhanced operator safety during rigging operations.
*Automatically locks under load for maximum safety
| Hook Type | Latch Type | Safety Level |
|---|---|---|
| Self-Locking Hook (This Product) |
Positive Lock | Maximum Safety. Latch mechanically locks when loaded. Essential for construction sites and overhead lifting. |
| Sling Hook (Standard) |
Spring Latch | Basic Retention. The spring latch only keeps the sling in place when slack. It does not lock under load. |

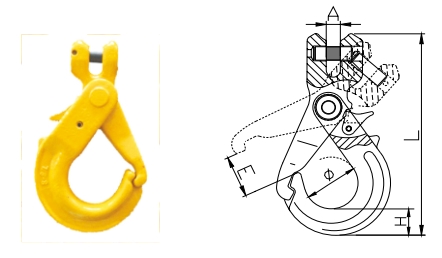

| Item No. | Chain Size (mm) |
WLL (t) |
Main Dimensions (mm) | Weight (kg) |
Product Code | ||||
|---|---|---|---|---|---|---|---|---|---|
| A | H | E | L | Φ | |||||
| 8-NCS-08 | 7+8 | 2 | 9.5 | 22 | 34 | 150 | 40 | 0.68 | 502021008 |
| 8-NCS-10 | 10 | 3.15 | 12.5 | 26 | 43 | 189 | 50 | 1.25 | 502021010 |
| 8-NCS-13 | 13 | 5.3 | 15 | 31 | 50 | 229 | 60 | 2.15 | 502021013 |
| 8-NCS-16 | 16 | 8 | 18.5 | 38 | 70 | 299 | 72 | 3.80 | 502021016 |
Grade 80 Sling Components are the long-established industry standard for chain slings and heavy lifting. Fully compliant with international lifting regulations and designed for durability.
Used to connect the sling to a crane or hoist hook.
End fittings for secure load attachment.
Essential hardware to join chains or fittings.
The core lifting medium and adjustment tools.
| Feature | Grade 80 | Grade 100 |
|---|---|---|
| Strength Level | Standard Industry Standard | +25% Higher |
| Component Size | Larger | Smaller (for same WLL) |
| Weight | Heavier | Lighter |
| Cost | More Cost-Effective | Higher |
