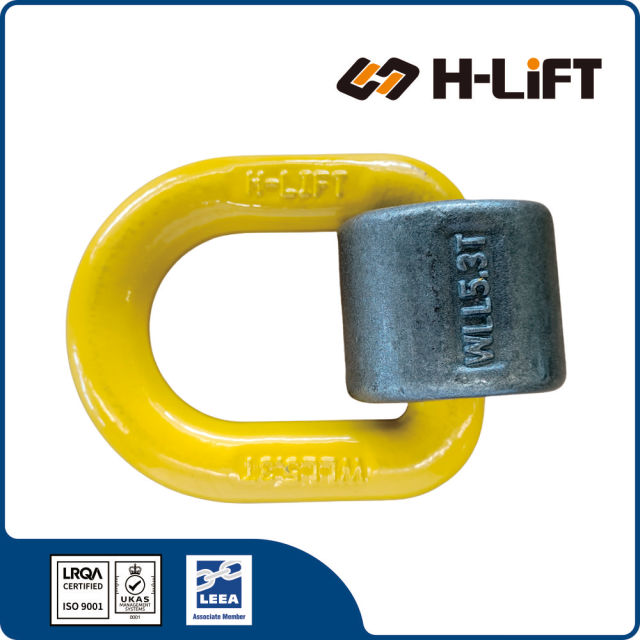

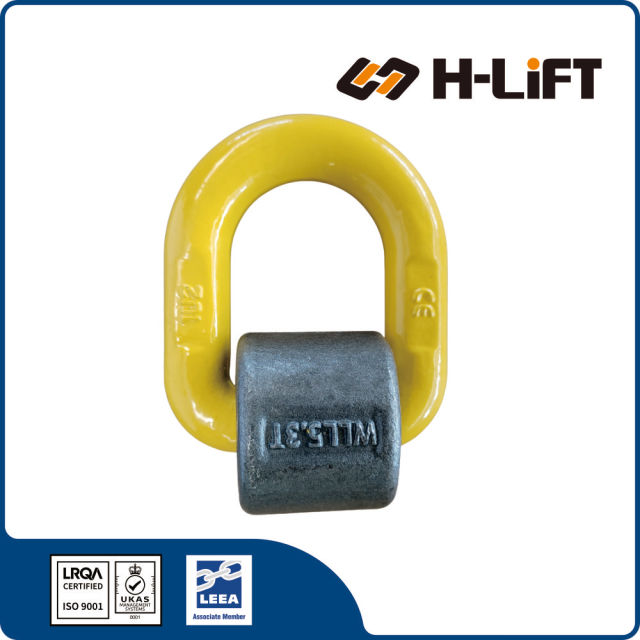

The Grade 80 D-Ring with Spring (DRS Type), also known as a Weld-On D-Ring, is a heavy-duty forged lifting and lashing point designed for permanent installation on steel surfaces. It is ideal for creating fixed anchor points on spreader beams, truck trailers, excavators, and heavy machinery.
*Spring holds ring firm to prevent rattling
| Feature | Standard D-Ring | Spring D-Ring (DRS Type) |
|---|---|---|
| Noise / Vibration | Rattles Ring flops around while driving. |
Silent Spring holds ring firm against base. |
| Accessibility | Passive Lays flat, harder to grab with gloves. |
Positionable Stays firmly upright for easy hooking. |
| Ideal For | Static heavy machinery. | Trucks, Trailers, Excavators. |
| Item No. | WLL (Tonnes) |
Main Dimensions (mm) | Weight (kg) |
Product Code | |||
|---|---|---|---|---|---|---|---|
| A | B | D | M | ||||
| 8-DRS-1 | 1.12 | 41 | 78.5 | 13 | 38 | 0.47 | 502033001 |
| 8-DRS-2 | 2 | 42 | 88 | 14 | 40 | 0.51 | 502033002 |
| 8-DRS-3 | 3.15 | 46 | 94 | 17 | 43 | 0.69 | 502033003 |
| 8-DRS-5 | 5.3 | 55 | 118 | 22 | 61 | 1.46 | 502033005 |
| 8-DRS-8 | 8 | 70 | 141 | 26.5 | 70.5 | 2.52 | 502033008 |
| 8-DRS-10 | 10 | 85 | 165 | 28 | 76 | 3.59 | 502033010 |
| 8-DRS-15 | 15 | 97 | 188 | 34 | 90 | 5.79 | 502033015 |
| 8-DRS-20 | 20 | 149 | 282 | 46 | 125 | 15.42 | 502033020 |
Grade 80 Sling Components are the long-established industry standard for chain slings and heavy lifting. Fully compliant with international lifting regulations and designed for durability.
Used to connect the sling to a crane or hoist hook.
End fittings for secure load attachment.
Essential hardware to join chains or fittings.
The core lifting medium and adjustment tools.
| Feature | Grade 80 | Grade 100 |
|---|---|---|
| Strength Level | Standard Industry Standard | +25% Higher |
| Component Size | Larger | Smaller (for same WLL) |
| Weight | Heavier | Lighter |
| Cost | More Cost-Effective | Higher |
