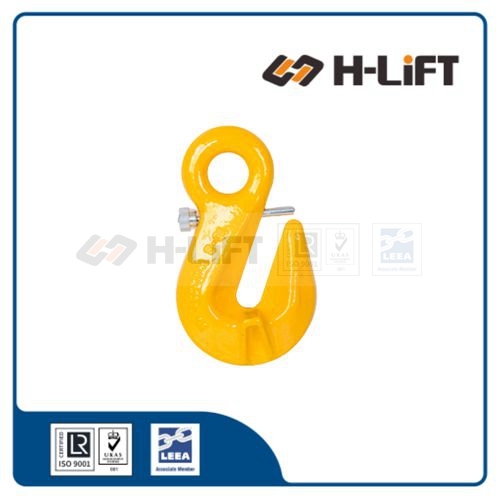

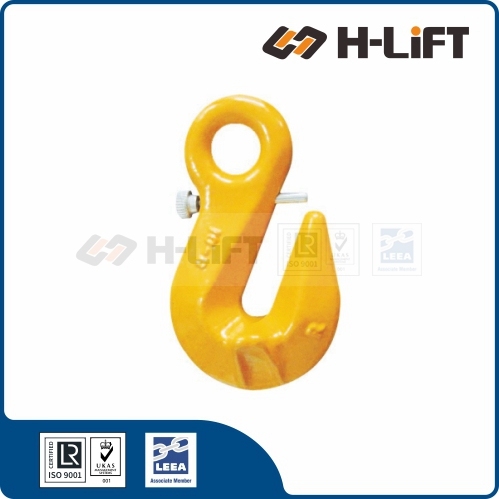

The Grade 80 Eye Cradle Grab Hook with Safety Pin (EGS Type) is a heavy-duty chain shortening component designed to safely adjust lifting chain lengths. It features a locking pin mechanism that securely retains the chain, preventing accidental disengagement during dynamic rigging operations.
*Cradle wings support the chain link fully
| Type | Installation | Best For |
|---|---|---|
| Eye Grab Hook (EGS / This Product) |
Needs Connector Flexible |
Versatility. Ideal for connecting to non-standard fittings or mixed assemblies (e.g., Wire Rope to Chain). Allows for easy hook replacement. |
| Clevis Grab Hook (CGS Type) |
Direct Pin Dedicated |
Simplicity. Best for standard chain slings. Fewer parts required, reducing weight and assembly time. |
| Item No. | Chain Size (mm) |
WLL (t) |
Main Dimensions (mm) | Weight (kg) |
Product Code | ||||
|---|---|---|---|---|---|---|---|---|---|
| Φ | B | D | E | L | |||||
| 8-EGS-08 | 7+8 | 2 | 17 | 50 | 9.5 | 10.5 | 88.5 | 0.29 | 502011008 |
| 8-EGS-10 | 10 | 3.15 | 20 | 71 | 13 | 13 | 121.5 | 0.75 | 502011010 |
| 8-EGS-13 | 13 | 5.3 | 26 | 96 | 15.5 | 16.5 | 158 | 1.62 | 502011013 |
| 8-EGS-16 | 16 | 10 | 36 | 112.5 | 19 | 18.5 | 183 | 3.00 | 502011016 |
Grade 80 Sling Components are the long-established industry standard for chain slings and heavy lifting. Fully compliant with international lifting regulations and designed for durability.
Used to connect the sling to a crane or hoist hook.
End fittings for secure load attachment.
Essential hardware to join chains or fittings.
The core lifting medium and adjustment tools.
| Feature | Grade 80 | Grade 100 |
|---|---|---|
| Strength Level | Standard Industry Standard | +25% Higher |
| Component Size | Larger | Smaller (for same WLL) |
| Weight | Heavier | Lighter |
| Cost | More Cost-Effective | Higher |
