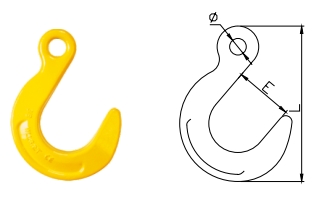

The Grade 80 Eye Foundry Hook (EFK Type) features a wide throat opening designed for foundries and pipe handling. It easily engages large or irregular loads where standard hooks cannot fit.
*Designed for large diameter loads and high-heat environments
| Hook Type | Throat Opening | Best For |
|---|---|---|
| Foundry Hook (This Product) |
Extra Wide | Oversized Objects. Fitting over large pipes, trunnions, or thick plates where standard hooks won't fit. (Note: Usually no latch) |
| Sling Hook (Standard) |
Standard | Standard Lifting Points. Designed to fit into eye bolts, shackles, or master links. Includes safety latch. |
| Item No. | Chain Size (mm) |
WLL (t) |
Dimensions (mm) | Weight (kg) |
Product Code | ||
|---|---|---|---|---|---|---|---|
| T (Throat) | E | L | |||||
| 8-EFK-07 | 7 | 1.6 | 63.5 | 18 | 163 | 1.09 | 502019007 |
| 8-EFK-08 | 8 | 2 | 63.5 | 18 | 163 | 1.09 | 502019008 |
| 8-EFK-10 | 10 | 3.2 | 76 | 22 | 200 | 2.03 | 502019010 |
| 8-EFK-13 | 13 | 5.4 | 89 | 27 | 238 | 3.22 | 502019013 |
| 8-EFK-16 | 16 | 8.2 | 102 | 32 | 278 | 5.26 | 502019016 |
| 8-EFK-20 | 20 | 12.8 | 114.5 | 38 | 325 | 9.10 | 502019020 |
| 8-EFK-22 | 22 | 15.5 | 127.5 | 45 | 361 | 11.3 | 502019022 |
| 8-EFK-26 | 26 | 21.6 | 140 | 66.5 | 402 | 16.8 | 502019026 |
| 8-EFK-32 | 32 | 32.8 | 153.5 | 81.5 | 461 | 26.6 | 502019032 |
| Item No. | Chain Size (inch) |
WLL (lbs) |
Dimensions (inch) | Weight (lbs) |
Product Code | ||
|---|---|---|---|---|---|---|---|
| E (Throat) | Φ | L | |||||
| 8-EFK-9/32 | 9/32 (1/4) | 3500 | 2.5 | 0.71 | 6.42 | 2.40 | 502019007 |
| 8-EFK-5/16 | 5/16 | 4500 | 2.5 | 0.71 | 6.42 | 2.40 | 502019008 |
| 8-EFK-3/8 | 3/8 | 7100 | 2.99 | 0.87 | 7.87 | 4.48 | 502019010 |
| 8-EFK-1/2 | 1/2 | 12000 | 3.5 | 1.06 | 9.37 | 7.10 | 502019013 |
| 8-EFK-5/8 | 5/8 | 18100 | 4.02 | 1.26 | 10.94 | 11.6 | 502019016 |
| 8-EFK-3/4 | 3/4 | 28300 | 4.51 | 1.5 | 12.8 | 20.06 | 502019020 |
| 8-EFK-7/8 | 7/8 | 34200 | 5.02 | 1.77 | 14.21 | 24.91 | 502019022 |
| 8-EFK-1 | 1 | 47700 | 5.51 | 2.62 | 15.83 | 37.04 | 502019026 |
| 8-EFK-1-1/4 | 1-1/4 | 72300 | 6.04 | 3.21 | 18.15 | 58.64 | 502019032 |
Grade 80 Sling Components are the long-established industry standard for chain slings and heavy lifting. Fully compliant with international lifting regulations and designed for durability.
Used to connect the sling to a crane or hoist hook.
End fittings for secure load attachment.
Essential hardware to join chains or fittings.
The core lifting medium and adjustment tools.
| Feature | Grade 80 | Grade 100 |
|---|---|---|
| Strength Level | Standard Industry Standard | +25% Higher |
| Component Size | Larger | Smaller (for same WLL) |
| Weight | Heavier | Lighter |
| Cost | More Cost-Effective | Higher |
