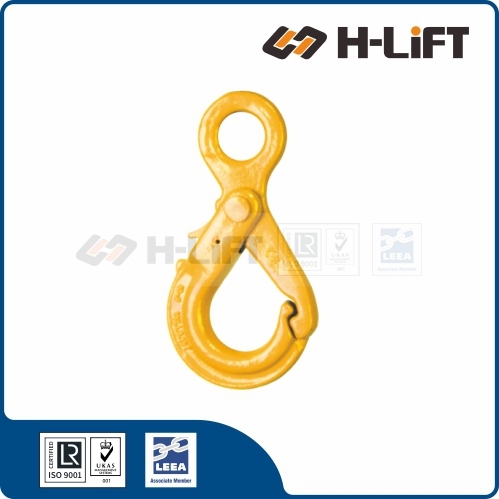

The Grade 80 Eye Self-Locking Hook with Grip Latch (NES Type) is designed for safe and reliable overhead lifting. Its automatic locking mechanism ensures secure load capture during rigorous industrial operations.
*Automatically locks under load for maximum safety
| Type | Connection | Best For |
|---|---|---|
| Eye Self-Locking (NES / This Product) |
Round Eye Universal |
Wire Rope & Mixed Use. Best if you are using wire rope slings (fits thimbles) or need to connect via a Hammerlock. |
| Clevis Self-Locking (NCS Type) |
Clevis Pin Chain Only |
Chain Slings. Pins directly to the chain link. Faster assembly, fewer parts, lighter weight. |
| Feature | Standard Hook | Self-Locking Hook (NES) |
|---|---|---|
| Safety Latch | Spring Latch Can break or bend |
Positive Lock Fail-safe Mechanism |
| Reliability | Risk of Opening If load goes slack |
Locks Under Load Cannot open while lifting |
| Item No. | Chain Size (mm) |
WLL (t) |
Main Dimensions (mm) | Weight (kg) |
Product Code | ||||
|---|---|---|---|---|---|---|---|---|---|
| Φ1 | H | E | L | Φ | |||||
| 8-NES-08 | 7+8 | 2 | 25 | 22 | 34 | 164 | 40 | 0.68 | 502020008 |
| 8-NES-10 | 10 | 3.15 | 32 | 26 | 42 | 201.5 | 50 | 1.30 | 502020010 |
| 8-NES-13 | 13 | 5.3 | 40 | 31 | 50 | 243.4 | 60 | 2.06 | 502020013 |
| 8-NES-16 | 16 | 8 | 50 | 38 | 70 | 299 | 72 | 3.73 | 502020016 |
Grade 80 Sling Components are the long-established industry standard for chain slings and heavy lifting. Fully compliant with international lifting regulations and designed for durability.
Used to connect the sling to a crane or hoist hook.
End fittings for secure load attachment.
Essential hardware to join chains or fittings.
The core lifting medium and adjustment tools.
| Feature | Grade 80 | Grade 100 |
|---|---|---|
| Strength Level | Standard Industry Standard | +25% Higher |
| Component Size | Larger | Smaller (for same WLL) |
| Weight | Heavier | Lighter |
| Cost | More Cost-Effective | Higher |
