Home > Products > All Collections > Lifting Chains, Slings & Fittings > Grade 80 Lifting Swivel LTS Type
  • Grade 80 Lifting Swivel LTS Type
  • Grade 80 Lifting Swivel LTS Type
  • Grade 80 Lifting Swivel LTS Type
  • Grade 80 Lifting Swivel LTS Type

Grade 80 Lifting Swivel LTS Type

No.502028

The Grade 80 Lifting Swivel (LTS Type) is a highly versatile and compact lifting point engineered to safely handle dynamic loads. Designed with metric threads for secure attachment, it allows the load to self-align during lifts, significantly reducing dangerous side loads and stress on the rigging assembly.

  • Full Articulation: Features a 360° rotational swivel combined with a pivoting bail, ensuring the lifting point automatically aligns with the direction of the load for maximum safety and efficiency.
  • Compact & Lightweight: Engineered for a low-profile fit, making it an ideal solution for tight spaces while still delivering exceptional heavy-duty performance.
  • Grade 80 Alloy Strength: Forged from premium quenched and tempered alloy steel, offering superior durability, high Working Load Limits (WLL), and a robust 4:1 safety factor.
  • Wide Size Range: Available in a comprehensive selection of metric thread sizes from M8 up to M64, accommodating a broad spectrum of industrial lifting requirements and heavy machinery handling.
CONTACT US

  • Technical Data

  • G-80 Alloy Fittings

Grade 80 Lifting Swivel - LTS Type

Load Stabilization & Twist Prevention (Eye-Eye)
Grade 80 Alloy Steel Torque Relief Eye-to-Eye 4:1 Safety Factor
Grade 80 Lifting Swivel Product Shot LTS Swivel Technical Drawing

*Allows free rotation to prevent wire rope unlaying

Product Features

  • Twist Prevention: Essential for applications where the load may spin. The swivel action relieves torque, protecting the integrity of your lifting medium (wire rope or chain).
  • Load Stabilization: Helps stabilize the lifted load by allowing it to rotate freely to position itself, preventing dangerous "wind up" of the rigging lines.
  • Eye-to-Eye Design: The LTS configuration features large eyes on both ends, allowing for easy connection to shackles, connecting links, or hooks.
  • Robust Construction: Forged from Quenched & Tempered Grade 80 Alloy Steel. Proof Load tested to 2.5x WLL.
The Importance of Swivels
Rigging Type Without Swivel With Lifting Swivel
Wire Rope High Risk: Rope unlays (unravels) and loses strength permanently. Protected: Torque is released, rope structure stays intact.
Chain Risk: Chain twists and kinks, causing uneven stress. Smooth: Chain hangs straight and balances naturally.

Technical Specifications

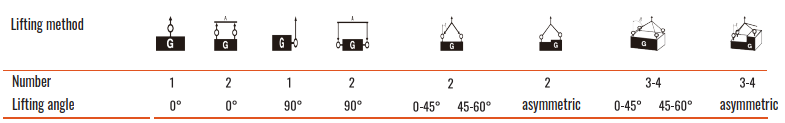

Item No. Size
D × E		 WLL (Tonnes) Dimensions (mm) Weight
(kg)		 Product Code
90° 0° ΦB ΦC G T A W Φ
8-LTS-08013 M8 × 13 0.3 0.6 36 16.5 52 41 55 30 14 0.45 50202808013
8-LTS-10018 M10 × 18 0.5 1 36 16.5 52 41 55 30 14 0.45 50202810018
8-LTS-12018 M12 × 18 0.5 1 36 16.5 52 41 55 30 14 0.46 50202812018
8-LTS-12045 M12 × 45 0.5 1 36 16.5 52 41 55 30 14 0.48 50202812045
8-LTS-12110 M12 × 110 0.5 1 36 16.5 52 41 55 30 14 0.54 50202812110
8-LTS-14020 M14 × 20 1.12 2.24 36 16.5 52 41 55 30 14 0.49 50202814020
8-LTS-16020 M16 × 20 1.12 2.24 36 16.5 52 42 55 30 14 0.47 50202816020
8-LTS-16120 M16 × 120 1.12 2.24 36 16.5 52 42 55 30 14 0.63 50202816120
8-LTS-18030 M18 × 30 2 4 49.5 19 69 56 70 35 16 0.95 50202818030
8-LTS-20030 M20 × 30 2 4 49.5 19 69 56 70 35 16 0.99 50202820030
8-LTS-20040 M20 × 40 2 4 49.5 19 69 56 70 35 16 1.02 50202820040
8-LTS-20120 M20 × 120 2 4 49.5 19 69 56 70 35 16 1.21 50202820120
8-LTS-24030 M24 × 30 3.15 6.3 57 22 78 65.5 85 40 18 1.33 50202824030
8-LTS-24090 M24 × 90 3.15 6.3 57 22 78 65.5 85 40 18 1.54 50202824090
8-LTS-24120 M24 × 120 3.15 6.3 57 22 78 65.5 85 40 18 1.65 50202824120
8-LTS-27035 M27 × 35 3.15 6.3 57 22 78 65.5 85 40 20 1.47 50202827035
8-LTS-30035 M30 × 35 5.3 10.6 66 23.5 96.5 80.5 85 40 20 2.30 50202830035
8-LTS-30045 M30 × 45 5.3 10.6 66 23.5 96.5 80.5 85 40 20 2.35 50202830045
8-LTS-30120 M30 × 120 5.3 10.6 66 23.5 96.5 80.5 85 40 20 2.77 50202830120
8-LTS-30035A M30 × 35 8 12.8 80 28 112 92 115 50 22 3.73 50202830035A
8-LTS-30038A M30 × 38 8 12.8 80 28 112 92 115 50 22 3.79 50202830038A
8-LTS-30120A M30 × 120 8 12.8 80 28 112 92 115 50 22 4.21 50202830120A
8-LTS-36050 M36 × 50 8 12.8 80 27 109 89.5 115 50 22 3.88 50202836050
8-LTS-36090 M36 × 90 8 12.8 80 27 109 89.5 115 50 22 4.19 50202836090
8-LTS-36128 M36 × 128 8 12.8 80 27 109 89.5 115 50 22 4.50 50202836128
8-LTS-36400 M36 × 400 8 12.8 80 27 109 89.5 115 50 22 6.67 50202836400
8-LTS-39050 M39 × 50 8 12.8 80 27 109 89.5 115 50 22 3.95 50202839050
8-LTS-39090 M39 × 90 8 12.8 80 27 109 89.5 115 50 22 3.71 50202839090
8-LTS-42050 M42 × 50 10 16 80 27 109 89.5 115 50 25 4.46 50202842050
8-LTS-48050 M48 × 50 10 16 80 27 109 89.5 115 50 25 4.62 50202848050
8-LTS-56084 M56 × 84 15 24 117 42 246 214 152 70 32 11.80 50202856084
8-LTS-64095 M64 × 95 15 24 117 42 257 225 152 70 32 12.50 50202864095
Grade 80 Chain Fittings

G-80 Alloy Fittings / Grade 80 Sling Components

Grade 80 Sling Components are the long-established industry standard for chain slings and heavy lifting. Fully compliant with international lifting regulations and designed for durability.

What Does “Grade 80” Mean?

  • High-strength Alloy Steel
  • Min breaking force ≈ 4 × WLL
  • Heat-treated (Quenched & Tempered)
  • Standard: EN 818-4 / EN 818-6
  • Marked “G80” or “8”

Common Grade 80 Components

1. Master Links

Used to connect the sling to a crane or hoist hook.

  • Master Link (ML)
  • Master Link Assembly (Multi-leg)
  • Pear-shaped master links

2. Hooks

End fittings for secure load attachment.

  • Clevis Self-Locking Hook
  • Eye Self-Locking Hook
  • Sling Hook with Safety Latch
  • Foundry Hook
  • Grab Hook (Shortening)

3. Connecting Links

Essential hardware to join chains or fittings.

  • Clevis Connecting Link
  • Hammerlock / Coupling Link
  • Repair Link (Special use only)

4. Chain & Adjusters

The core lifting medium and adjustment tools.

  • Grade 80 Alloy Chain (Marked G80)
  • Shortening Clutch
  • Swivel (Bearing/Non-bearing)
  • Lifting Rings

Typical Applications

  • Chain slings (1 to 4 legs)
  • Construction & Civil Works
  • Manufacturing & Workshops
  • Steel Fabrication
  • General Industrial Lifting

Identification Marks

  • Grade: G80 / 8
  • Manufacturer’s ID
  • Size or WLL (Working Load Limit)
  • Traceability Batch Code

Grade 80 vs. Grade 100

Feature Grade 80 Grade 100
Strength Level Standard Industry Standard +25% Higher
Component Size Larger Smaller (for same WLL)
Weight Heavier Lighter
Cost More Cost-Effective Higher

⚠️ Safety & Compatibility Notes

  • DO NOT mix Grade 80 components with other grades (G70, G100) in the same sling leg.
  • Always match Grade 80 chain with Grade 80 fittings.
  • Observe sling angle factors and WLL reductions during lifts.
  • Inspect regularly for: Wear (>10%), Cracks/Distortion, Corrosion, or Heat Damage.

Why Choose Grade 80?

✅ Proven Reliability ✅ Wide Availability ✅ Cost-Effective ✅ Global Acceptance
Grade 80 Chain Sling Assembly
