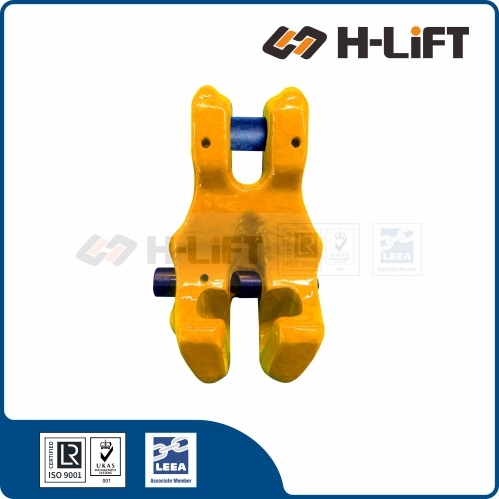

The Grade 80 Shortening Clutch Locking Type (SCL Type) safely adjusts chain sling lengths. Its integrated safety pin firmly locks the chain in place, preventing accidental release even when the load is slack.
*Locking pin prevents accidental release
| Type | Security | Why Choose This? |
|---|---|---|
| Shortening Clutch (SCL / This Product) |
Locking Pin | Maximum Safety. Chain cannot accidentally fall out. Ideal for critical lifts or when the chain might go slack. |
| Grab Hook (CGS / EGS) |
Open Throat | Speed & Cost. Faster to adjust (just drop the chain in), cheaper, but chain can slip out if not under tension. |
| Item No. | Chain Size (mm) |
WLL (t) |

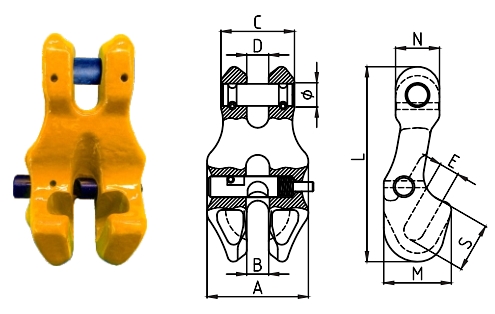

Main Dimensions (mm) | Weight (kg) |
Product Code | |||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| A | B | C | D | E | φ | L | M | |||||
| 8-SCL-06 | 6 | 1.12 | 38 | 7.5 | 27 | 7.5 | 7.5 | 7.7 | 73 | 27 | 0.25 | 502023006 |
| 8-SCL-08 | 7+8 | 2 | 50 | 9.5 | 33 | 9.5 | 9.2 | 9.2 | 92 | 33 | 0.41 | 502023008 |
| 8-SCL-10 | 10 | 3.15 | 60 | 11.5 | 43 | 11.5 | 12 | 13.3 | 115 | 42.2 | 0.82 | 502023010 |
| 8-SCL-13 | 13 | 5.3 | 79 | 15 | 55 | 15 | 15.5 | 16.3 | 149 | 54 | 1.67 | 502023013 |
| 8-SCL-16 | 16 | 8 | 98 | 19 | 70 | 19 | 18.5 | 19.7 | 184 | 70 | 3.85 | 502023016 |
Grade 80 Sling Components are the long-established industry standard for chain slings and heavy lifting. Fully compliant with international lifting regulations and designed for durability.
Used to connect the sling to a crane or hoist hook.
End fittings for secure load attachment.
Essential hardware to join chains or fittings.
The core lifting medium and adjustment tools.
| Feature | Grade 80 | Grade 100 |
|---|---|---|
| Strength Level | Standard Industry Standard | +25% Higher |
| Component Size | Larger | Smaller (for same WLL) |
| Weight | Heavier | Lighter |
| Cost | More Cost-Effective | Higher |
