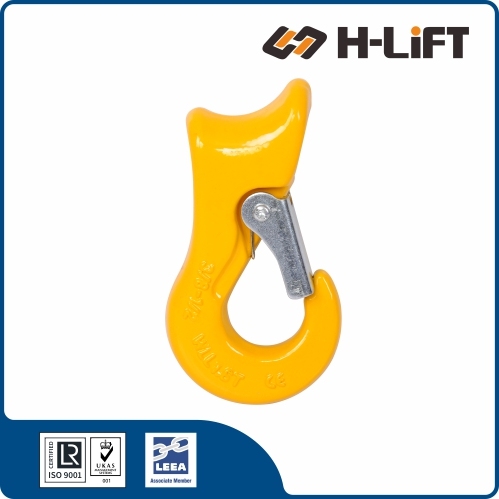

The Grade 80 Sliding Choke Hook (SCH Type) is a specialized rigging component designed specifically to create secure choker hitches. It slides freely along the length of a chain, wire rope, or synthetic sling to tightly grip and secure bulky or awkwardly shaped loads.
*Slides along chain to tighten around logs or pipes
| Hook Type | Action | Primary Function |
|---|---|---|
| Choke Hook (SCH) (This Product) |
Bundling / Tightening. Slides along the chain to squeeze the load (e.g., pipes, logs). |
|
| Grab Hook (Shortener) |
Locking 🔒 | Shortening. Grabs a specific link to shorten the leg length. Does NOT slide. |
| Item No. | Chain Size (inch) |
WLL (t) |
Main Dimensions (mm) | Weight (kg) |
Product Code | ||||
|---|---|---|---|---|---|---|---|---|---|

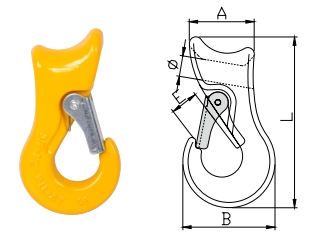

| Φ | A | B | E | L | |||||
| 8-SCH-13 | 3/8 - 1/2 | 1.6 | 17 | 50 | 71 | 18 | 132 | 0.68 | 502027013 |
| 8-SCH-16 | 5/8 | 2 | 22 | 63.5 | 79 | 20 | 151.3 | 1.21 | 502027016 |
| 8-SCH-20 | 3/4 | 3 | 28 | 69 | 103 | 26 | 170 | 1.99 | 502027020 |
| 8-SCH-26 | 1 | 5 | 32.5 | 85.7 | 135 | 33 | 213 | 4.18 | 502027026 |
Grade 80 Sling Components are the long-established industry standard for chain slings and heavy lifting. Fully compliant with international lifting regulations and designed for durability.
Used to connect the sling to a crane or hoist hook.
End fittings for secure load attachment.
Essential hardware to join chains or fittings.
The core lifting medium and adjustment tools.
| Feature | Grade 80 | Grade 100 |
|---|---|---|
| Strength Level | Standard Industry Standard | +25% Higher |
| Component Size | Larger | Smaller (for same WLL) |
| Weight | Heavier | Lighter |
| Cost | More Cost-Effective | Higher |
