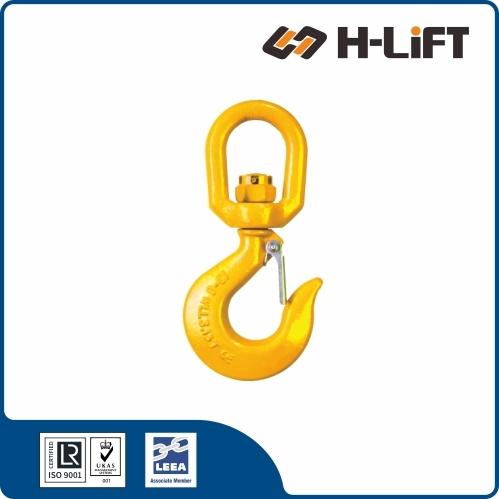

The Grade 80 Swivel Hook (SWH Type) is a heavy-duty lifting component designed to naturally align with the load during lifting operations. Its built-in swivel mechanism prevents the lifting chain or wire rope from twisting, significantly reducing dangerous torque and stress on the rigging assembly.
*Swivel top allows 360° rotation for alignment
| Type | Internal | Usage Rule |
|---|---|---|
| Positioning Swivel (Standard SWH / This Product) |
Plain Washer | Rotate BEFORE lifting. Used to align the hook. Must NOT rotate while carrying weight. |
| Bearing Swivel (Heavy Duty) |
Ball Bearing | Rotate UNDER load. Designed for loads that need to spin or turn while suspended. |

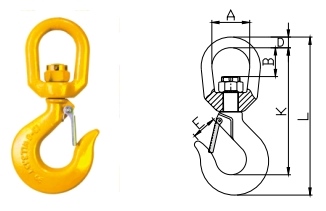

| Item No. | Chain Size (mm) |
WLL (t) |
Main Dimensions (mm) | Weight (kg) |
Product Code | |||||
|---|---|---|---|---|---|---|---|---|---|---|
| A | E | B | D | K | L | |||||
| 8-SWH-06 | 6 | 1.12 | 32 | 17 | 22.5 | 9 | 109 | 137 | 0.34 | 502016006 |
| 8-SWH-08 | 7+8 | 2 | 42 | 21.5 | 35 | 15.8 | 150 | 192 | 1.02 | 502016008 |
| 8-SWH-10 | 10 | 3.15 | 42.5 | 26 | 35 | 15.8 | 162.5 | 208.5 | 1.24 | 502016010 |
| 8-SWH-13 | 13 | 5.3 | 48 | 32.5 | 39 | 18 | 191 | 246 | 2.33 | 502016013 |
| 8-SWH-16 | 16 | 8 | 62 | 43 | 53 | 25 | 243.5 | 313 | 4.66 | 502016016 |
| 8-SWH-20 | 20 | 12.5 | 68 | 49.5 | 51 | 28.5 | 276.5 | 363.5 | 7.40 | 502016020 |
| 8-SWH-22 | 22 | 15 | 79 | 54.5 | 65 | 32 | 332 | 431 | 10.60 | 502016022 |
| 8-SWH-26 | 26 | 21.2 | 105 | 81 | 114 | 40 | 429.5 | 545.5 | 21.40 | 502016026 |
| 8-SWH-32 | 32 | 31.5 | 105 | 100 | 96 | 40 | 465.3 | 596 | 32.00 | 502016032 |
Grade 80 Sling Components are the long-established industry standard for chain slings and heavy lifting. Fully compliant with international lifting regulations and designed for durability.
Used to connect the sling to a crane or hoist hook.
End fittings for secure load attachment.
Essential hardware to join chains or fittings.
The core lifting medium and adjustment tools.
| Feature | Grade 80 | Grade 100 |
|---|---|---|
| Strength Level | Standard Industry Standard | +25% Higher |
| Component Size | Larger | Smaller (for same WLL) |
| Weight | Heavier | Lighter |
| Cost | More Cost-Effective | Higher |
