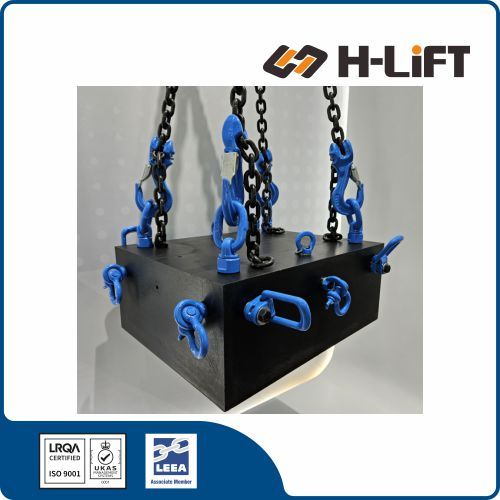

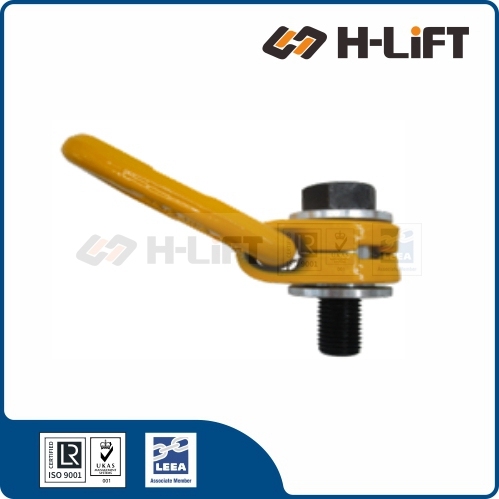

Grade 80 Swivel Lifting Point SLP type

No.502029

The Grade 80 Swivel Lifting Point (SLP Type) is a heavy-duty, bolt-on lifting accessory engineered to provide a highly secure and maneuverable attachment point for complex rigging operations. Designed to thread directly into the load, it significantly reduces stress on both the lifting equipment and the load itself.

  • Free Rotation: Features a built-in swivel mechanism that allows the load to rotate freely during the lift, making it ideal for loads that need to be carefully maneuvered or positioned.
  • Secure Threaded Attachment: Designed to be bolted directly into a threaded hole on heavy machinery or dies, providing a reliable and temporary lifting point.
  • Extensive Size Range: Available in a wide variety of metric thread sizes, starting from M8 and scaling up to M48 to accommodate diverse industrial requirements.
  • High Working Load Limits: Built to handle substantial weight, safely supporting Working Load Limits (WLL) ranging from 0.3 tonnes up to a massive 20 tonnes.
  • Technical Data

  • G-80 Alloy Fittings

Grade 80 Swivel Lifting Point - SLP Type

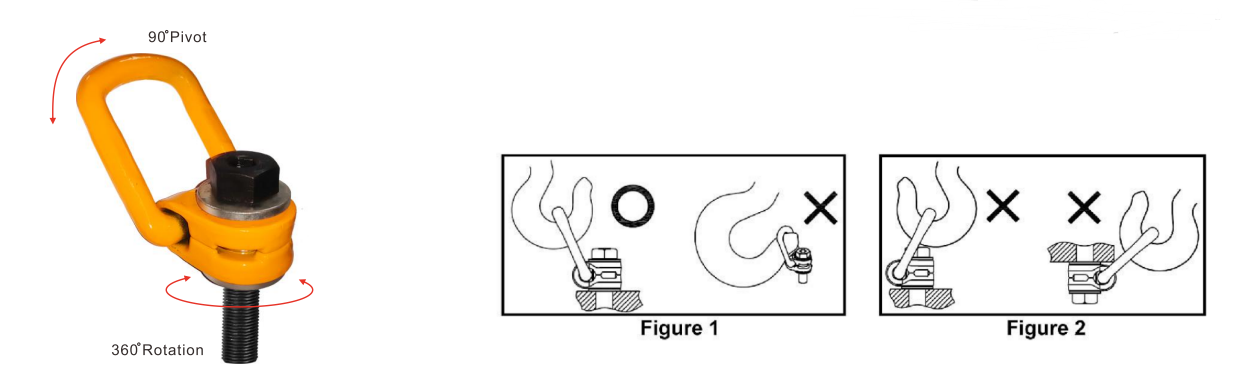

360° Rotation & 180° Pivot for Angular Loads
Grade 80 Alloy Steel 360° Rotation 180° Pivot 4:1 Safety Factor
Grade 80 Swivel Lifting Point Product Image SLP Dimensional Drawing

*Automatically aligns with pull direction to prevent bolt bending

Product Features

  • Dual Motion Capabilities: Rotates 360° under load and pivots 180°. This flexibility ensures the lifting ring always aligns with the sling direction, preventing dangerous torque on the bolt.
  • Full Capacity at 90°: Unlike standard eye bolts that lose 70% of capacity at 90 degrees, the SLP maintains high working load limits during side loading.
  • Grade 10.9 Strength: Equipped with a high-tensile alloy steel socket head bolt (Metric thread) to ensure maximum structural integrity under heavy stress.
  • Safety Certified: Proof tested to 2.5 times the WLL. Fatigue rated to 20,000 cycles at 1.5 times the WLL, meeting strict industrial compliance standards.
Performance: Rigid Eye Bolt vs. Swivel Lifting Point (SLP)
Task Standard Eye Bolt (DIN 580) Swivel Lifting Point (SLP)
Vertical Lift ✔ OK ✔ EXCELLENT
90° Side Lift ✘ DANGEROUS
(Risk of Bolt Bending)
✔ SAFE
(Ring pivots to align)
Flipping Load ✘ NOT RECOMMENDED ✔ DESIGNED FOR THIS

Technical Specifications

Item No. Size
(mm)
WLL
(t)
Main Dimensions (mm) Weight
(kg)
Product Code
A B D S SW M L L" Φ
8-SLP-08010 M8 X 10 0.3 35 52.5 30 6 13 45 46 10.4 14 0.36 50202908010
8-SLP-10016 M10 X 16 0.63 35 52.5 30 6 17 45 52 16 14 0.38 50202910016
8-SLP-12018 M12 X 18 1 40 54 36 8 19 68 62 18 18 0.71 50202912018
8-SLP-16024 M16 X 24 1.5 40 54 36 8 19 68 70 24 18 0.74 50202916024
8-SLP-20030 M20 X 30 2.5 54 80 50 12 30 83 88 30 16 1.19 50202920030
8-SLP-24040 M24 X 40 4 54 94 50 14 36 83 100 40 18 1.38 50202924040
8-SLP-30048 M30 X 48 5 73 106 68 17 41 120 132 48 27 4.2 50202930048
8-SLP-42072 M42 X 72 10 94 141 86 24 65 156 176 72 31 8.2 50202942072
8-SLP-48074 M48 X 74 20 104 155 95 27 75 176 194 74 40 13 50202948074
Grade 80 Chain Fittings

G-80 Alloy Fittings / Grade 80 Sling Components

Grade 80 Sling Components are the long-established industry standard for chain slings and heavy lifting. Fully compliant with international lifting regulations and designed for durability.

What Does “Grade 80” Mean?

  • High-strength Alloy Steel
  • Min breaking force ≈ 4 × WLL
  • Heat-treated (Quenched & Tempered)
  • Standard: EN 818-4 / EN 818-6
  • Marked “G80” or “8”

Common Grade 80 Components

1. Master Links

Used to connect the sling to a crane or hoist hook.

  • Master Link (ML)
  • Master Link Assembly (Multi-leg)
  • Pear-shaped master links

2. Hooks

End fittings for secure load attachment.

  • Clevis Self-Locking Hook
  • Eye Self-Locking Hook
  • Sling Hook with Safety Latch
  • Foundry Hook
  • Grab Hook (Shortening)

3. Connecting Links

Essential hardware to join chains or fittings.

  • Clevis Connecting Link
  • Hammerlock / Coupling Link
  • Repair Link (Special use only)

4. Chain & Adjusters

The core lifting medium and adjustment tools.

  • Grade 80 Alloy Chain (Marked G80)
  • Shortening Clutch
  • Swivel (Bearing/Non-bearing)
  • Lifting Rings

Typical Applications

  • Chain slings (1 to 4 legs)
  • Construction & Civil Works
  • Manufacturing & Workshops
  • Steel Fabrication
  • General Industrial Lifting

Identification Marks

  • Grade: G80 / 8
  • Manufacturer’s ID
  • Size or WLL (Working Load Limit)
  • Traceability Batch Code

Grade 80 vs. Grade 100

Feature Grade 80 Grade 100
Strength Level Standard Industry Standard +25% Higher
Component Size Larger Smaller (for same WLL)
Weight Heavier Lighter
Cost More Cost-Effective Higher

⚠️ Safety & Compatibility Notes

  • DO NOT mix Grade 80 components with other grades (G70, G100) in the same sling leg.
  • Always match Grade 80 chain with Grade 80 fittings.
  • Observe sling angle factors and WLL reductions during lifts.
  • Inspect regularly for: Wear (>10%), Cracks/Distortion, Corrosion, or Heat Damage.

Why Choose Grade 80?

✅ Proven Reliability ✅ Wide Availability ✅ Cost-Effective ✅ Global Acceptance
