Home > Products > All Collections > Lifting Chains, Slings & Fittings > Grade 80 Chain Fittings > Forged Steel Self-locking Hooks EN 1677-3 > Grade 80 Swivel Self Locking Hook with Bearing SSB type
  • Grade 80 Swivel Self Locking Hook with Bearing SSB type
  • Grade 80 Swivel Self Locking Hook with Bearing SSB type
  • Grade 80 Swivel Self Locking Hook with Bearing SSB type
  • Grade 80 Swivel Self Locking Hook with Bearing SSB type

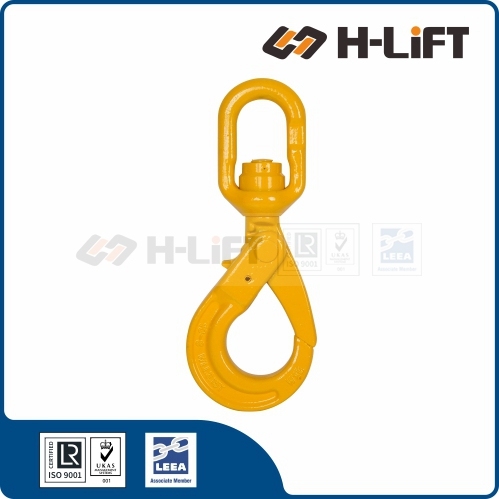

Grade 80 Swivel Self Locking Hook with Bearing SSB type

No.502007

The Grade 80 Swivel Self-Locking Hook with Bearing (SSB Type) is an advanced lifting component that combines a secure locking mechanism with a precision ball bearing. It is specifically designed to rotate smoothly even while under full load, preventing dangerous chain twist and ensuring optimal load alignment.

  • Rotation Under Load: Equipped with an integrated ball bearing that allows the hook to freely and smoothly swivel while fully loaded, significantly reducing torque on the rigging assembly.
  • Automatic Locking: Features a heavy-duty safety latch that automatically closes and firmly locks when tension is applied, preventing accidental load release during operations.
  • High-Strength Material: Forged from premium quenched and tempered Grade 80 alloy steel in strict compliance with EN 1677 standards for overhead lifting components.
  • Certified Safety & Durability: Rigorously proof-load tested to 2.5 times the Working Load Limit (WLL) with a 4:1 safety factor, and finished with a durable, corrosion-resistant powder coating.
CONTACT US

  • Technical Data

  • G-80 Alloy Fittings

Grade 80 Swivel Self-Locking Hook - SSB Type

Ball Bearing Swivel for Rotation Under Load
Grade 80 Alloy Steel Ball Bearing Swivel Automatic Locking EN 1677-3
Grade 80 Swivel Self-Locking Hook with Bearing Product Shot

*Bearing allows 360° rotation under full load

Product Features

  • Ball Bearing Swivel: Equipped with a sealed ball bearing mechanism. Allows for smooth, continuous rotation under full load, making it essential for wire rope cranes to prevent rope damage.
  • Self-Locking Safety: Features an automatic locking mechanism. The hook closes and locks immediately when lifted, ensuring the load cannot slip out during operation.
  • Load Positioning: Allows the operator to easily rotate and position heavy loads while they are suspended, improving safety and precision during placement.
  • Heavy Duty Build: Forged from Grade 80 Alloy Steel with a fully enclosed swivel housing to keep grease in and dirt out. Compliant with EN 1677-3.
Compare: Bearing (SSB) vs. Positioning (SSK)
Model Mechanism Can I Rotate Under Load?
SSB Type
(This Product)		 Ball Bearing YES. (✔)
Designed to rotate freely while lifting heavy loads. Protects wire ropes.
SSK Type
(Standard)		 Washer / Bushing NO. (✘)
Positioning only. Rotating under load may damage the swivel head.

Technical Specifications

Item No. Chain Size
(mm)		 WLL
(t)		 Main Dimensions (mm) Weight
(kg)		 Product Code
B C D L Φ E
8-SSB-06 6 1.12 32.5 33.8 11.5 160 34 32 0.71 502007006
8-SSB-08 7+8 2 36 40 13 202 44 40 1.10 502007008
8-SSB-10 10 3.15 42 48 15.5 237 58 48 2.10 502007010
8-SSB-13 13 5.3 50 58 17 282 70 57 4.00 502007013
8-SSB-16 16 8 61 60 21.5 341.5 86 65 7.30 502007016
8-SSB-20 20 12.5 76 75.5 26.5 399.5 97 82 11.60 502007020
8-SSB-22 22 15 97 97 33 466 98 80 16.00 502007022
8-SSB-26 26 21.2 123 115 42 544 110 109 21.50 502007026
Grade 80 Chain Fittings

G-80 Alloy Fittings / Grade 80 Sling Components

Grade 80 Sling Components are the long-established industry standard for chain slings and heavy lifting. Fully compliant with international lifting regulations and designed for durability.

What Does “Grade 80” Mean?

  • High-strength Alloy Steel
  • Min breaking force ≈ 4 × WLL
  • Heat-treated (Quenched & Tempered)
  • Standard: EN 818-4 / EN 818-6
  • Marked “G80” or “8”

Common Grade 80 Components

1. Master Links

Used to connect the sling to a crane or hoist hook.

  • Master Link (ML)
  • Master Link Assembly (Multi-leg)
  • Pear-shaped master links

2. Hooks

End fittings for secure load attachment.

  • Clevis Self-Locking Hook
  • Eye Self-Locking Hook
  • Sling Hook with Safety Latch
  • Foundry Hook
  • Grab Hook (Shortening)

3. Connecting Links

Essential hardware to join chains or fittings.

  • Clevis Connecting Link
  • Hammerlock / Coupling Link
  • Repair Link (Special use only)

4. Chain & Adjusters

The core lifting medium and adjustment tools.

  • Grade 80 Alloy Chain (Marked G80)
  • Shortening Clutch
  • Swivel (Bearing/Non-bearing)
  • Lifting Rings

Typical Applications

  • Chain slings (1 to 4 legs)
  • Construction & Civil Works
  • Manufacturing & Workshops
  • Steel Fabrication
  • General Industrial Lifting

Identification Marks

  • Grade: G80 / 8
  • Manufacturer’s ID
  • Size or WLL (Working Load Limit)
  • Traceability Batch Code

Grade 80 vs. Grade 100

Feature Grade 80 Grade 100
Strength Level Standard Industry Standard +25% Higher
Component Size Larger Smaller (for same WLL)
Weight Heavier Lighter
Cost More Cost-Effective Higher

⚠️ Safety & Compatibility Notes

  • DO NOT mix Grade 80 components with other grades (G70, G100) in the same sling leg.
  • Always match Grade 80 chain with Grade 80 fittings.
  • Observe sling angle factors and WLL reductions during lifts.
  • Inspect regularly for: Wear (>10%), Cracks/Distortion, Corrosion, or Heat Damage.

Why Choose Grade 80?

✅ Proven Reliability ✅ Wide Availability ✅ Cost-Effective ✅ Global Acceptance
Grade 80 Chain Sling Assembly
